16.3 Torque
Specications
Description Nm Ft.Lb. In.Lb.
IGV and End Bell bolts 25 18 221
Pressure/Temp sensor 10 7 89
IGV Power Feed Through 5 4 44
Bearing Power and Sensor Feed Throughs 5 4 44
Cavity Sensor E-Housing and later 13 10 115
SCR Mounting Screws 7 5 62
A/C Bus Bars 6 4 53
DC Capacitors and Bleed Resistor 2 1 18
IGBT Mounting Screws 6 4 53
Shraeder Valves 15 11 133
Motor Cooling Body (body nut), E-Housing and later* 25 18 221
Motor Cooling Compression Nut, E-Housing and later* 11 8 97
Cover Plate 13 10 115
Hermetic Feed Through 22 16 195
Motor Cooling Brass Orice 7 5 62
Motor Cooling Plunger 4 3 35
TT300 Mains Termination 31 23 274
*Check gure below for details
Physical Data
Table 16-4 - Torque
Specications

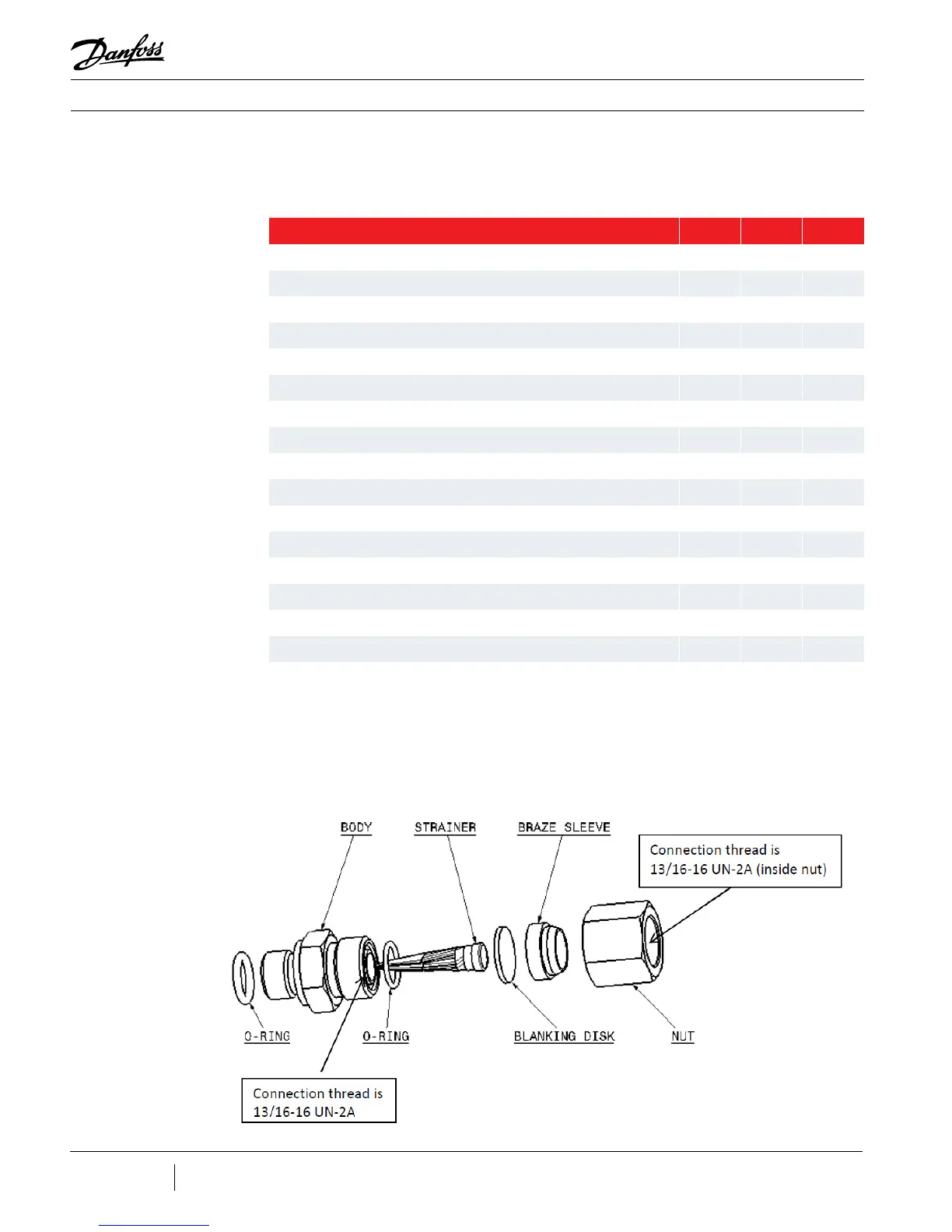

Figure 16-15 - Motor Cooling
Fitting
