Installation

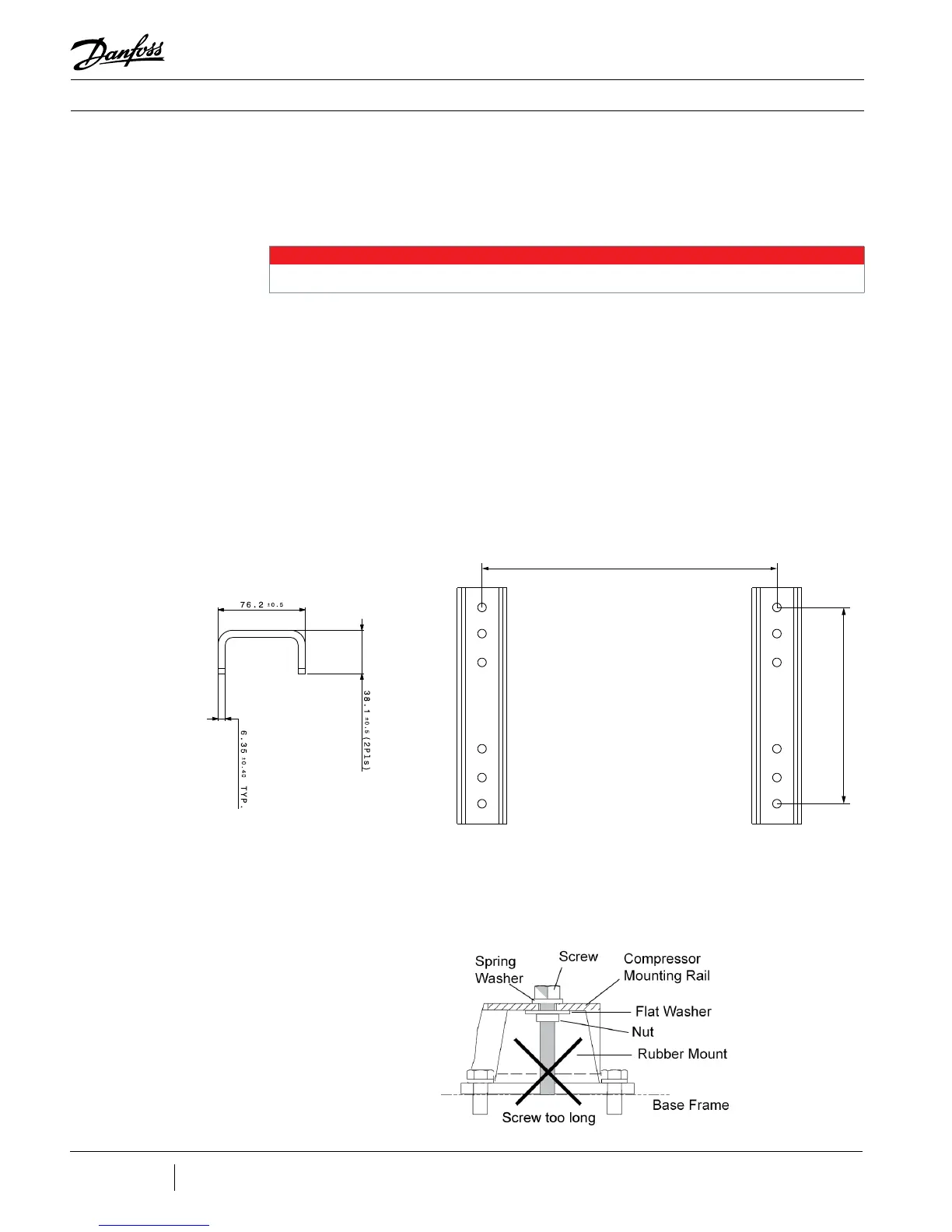

Figure 20-3 - Incorrect
Compressor Mounting Pad
Installation
The compressor must be mounted on a rigid surface of sucient structural integrity to
support the weight of the compressor and valves (see Figure 16-4b and Table 16-2). A
mounting kit is available to isolate the compressor from the supporting structure and to
minimize vibration from other rotating equipment. The compressor mounting rails should
be level ± 3/16” (5mm) in the lateral and longitudinal planes.
20.4 Mounting Base
Figure 20-2 - Mounting Base
(TT and TG series)
NOTE
If isolation pads are used at the four (4) mounting base points, the overall height of the compressor will change. Be sure to
measure accordingly based on the insulator used.
1. If isolation pads are used, install four (4) pads in accordance with the footprint
dimensions given in Figure 20-2.
2. Mount the compressor onto the isolation pads. Ensure the compressor mounting rails
are properly isolated from the base frame once the attaching hardware is secured; for
example, the screw should not extend from the compressor mounting rails to the base
frame (see Figure 20-3 and Figure 20-4).
3. Check that the compressor mounting rails are level ± 5mm (3/16") in the lateral and
longitudinal planes.
484.3
300.0
