Danfoss TTS400 Applications And Installation Manual

107 of 114M-AP-001-EN Rev. Q

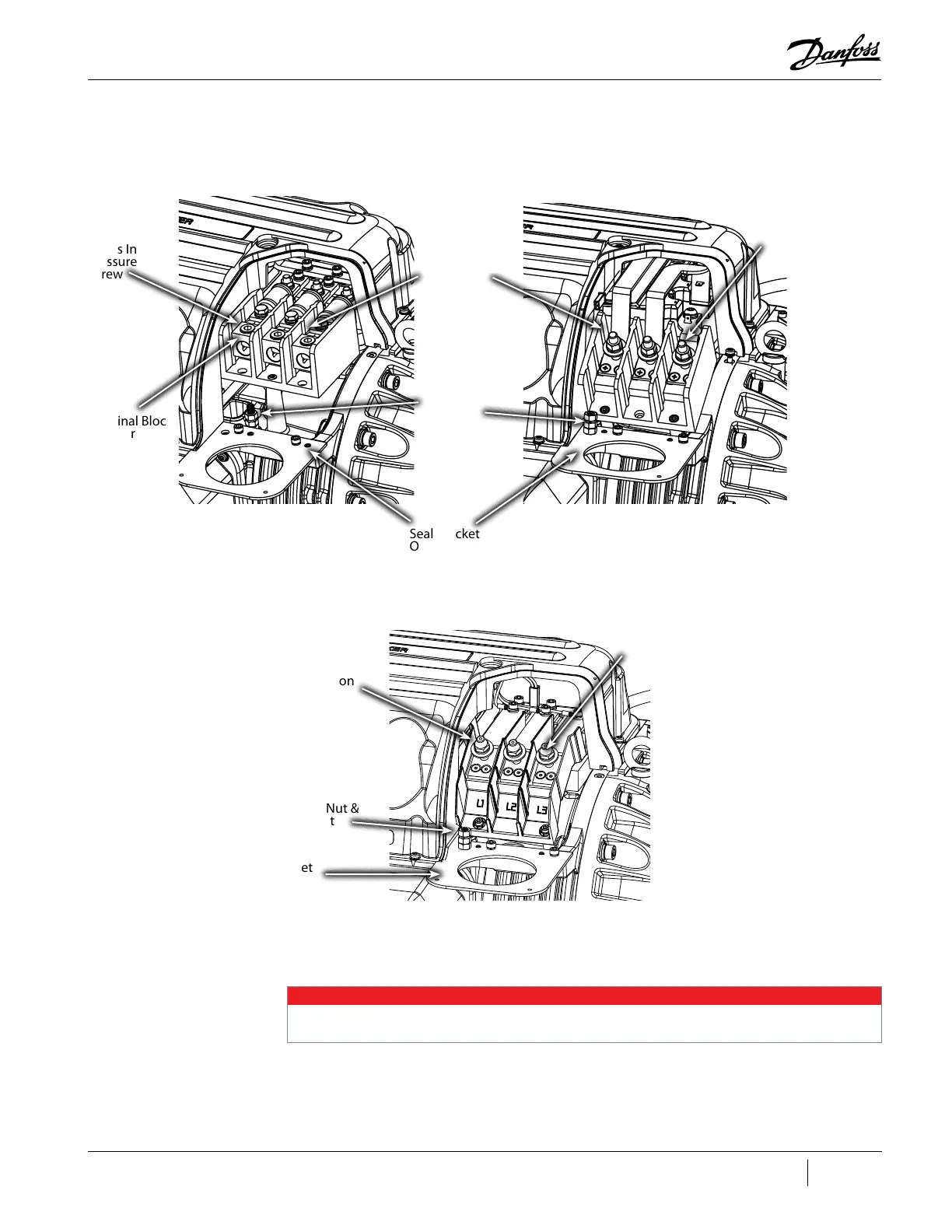

Figure 20-11 Compressor AC Input Terminals
9. The three (3) 3/8”-16 nuts on all other compressors (excluding TTS300/TGS230 compressors)
will need to be torqued to 21Nm (15 ft-lbs).
10. Tighten the gland nut to secure the cable to the mains input bracket.
11. Seal any gaps between the cabling and the mains input bracket to minimize any dust ingress
into the compressor.
12. Replace the mains input cover and secure it the fasteners.
Seal Bracket
Opening
TTS300/TGS230 Compressors All TTS/TGS/TTH/TGH Models Prior to Revision H
(Except TTS300/TGS230)
Upper Nut &
Jam Nut
Mains Stud - 3/8-
16 - 1.5” long
Mains Input
Pressure
Screw
AC Input
Connection
Terminal Block
Adapter
All TTS/TGS/TTH/TGH Models, Revision H
(Except TTS300/TGS230)
Mains Stud - 3/8-
16 - 1.5” long
AC Input
Connection
Upper Nut &
Jam Nut
Seal Bracket
Opening
NOTE
The bore size of the Terminal Block Adapter (TTS300 and TGS230 only) is 18mm, therefore the maximum wire diameter must not
exceed that size.
