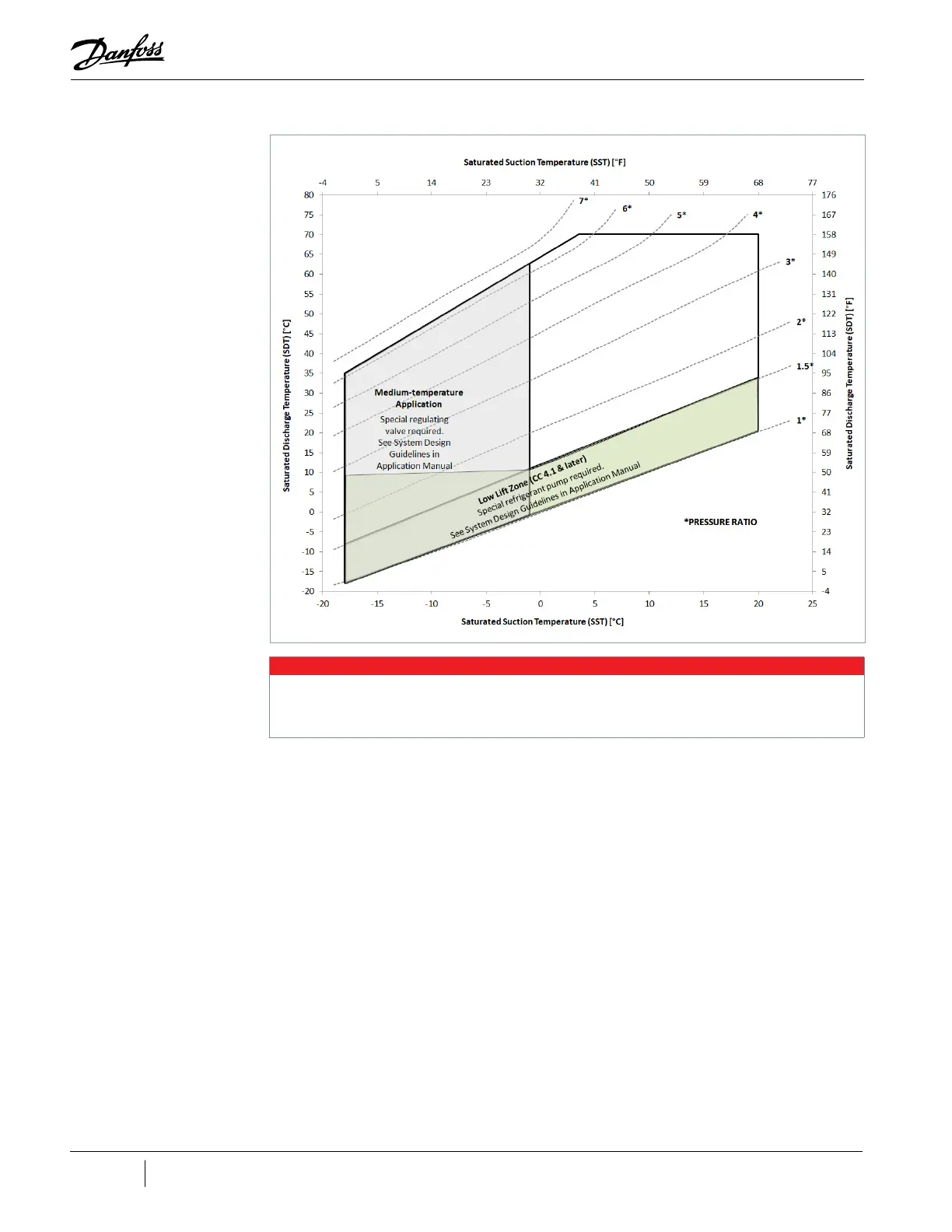

Figure 8-6 Operating Envelope, TTH375/TGH285
NOTE
The maximum SDT of the operating envelope represents the limit for compressors with maximum FLA settings.
The maximum SDT for compressors with an FLA less than that is lower than the upper bound of the operating envelope and
depends on the FLA rating.
(1)
The actual obtainable capacity will be dependent on specific operating characteristics of each compressor model.
Refer to the current authorized compressor selection/rating software for more exact values and conditions.
