Chapter 19.0 Shipping Considerations

19.1 Vibration

When shipping the compressor as an integral part of a chiller unit, precautions should be taken to

protect the compressor motor cooling line from excessive vibration. Due to the flexibility of the

compressor’s isolation mounts, compressor vibration during transit can fracture the motor cooling

line’s rigid piping. Danfoss LLC suggests the temporary installation of an anti-vibration bracket

between the compressor’s base frame and mounting rail during transit, as shown in "Figure 19-1 Anti-

Vibration Bracket".

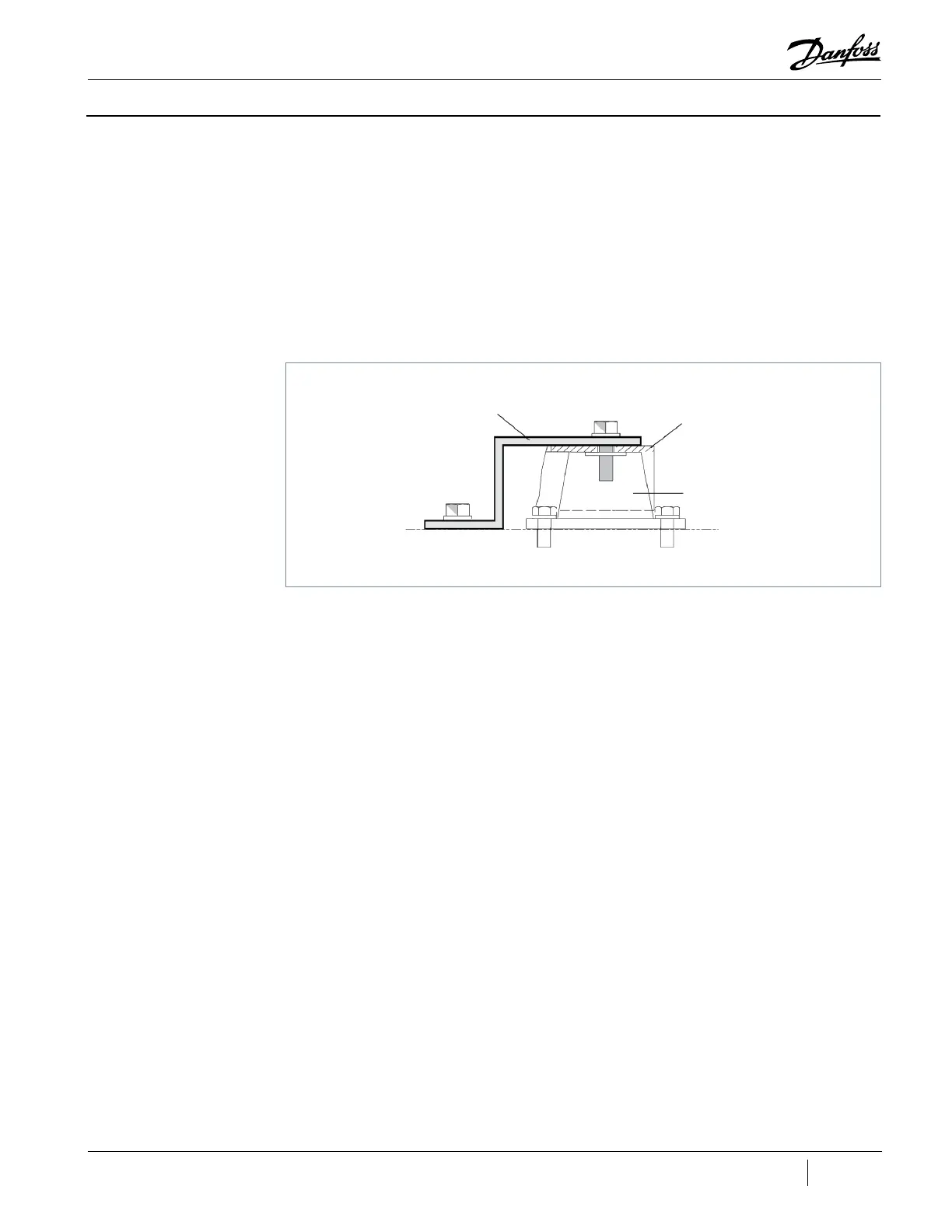

Figure 19-1 Anti-Vibration Bracket

Anti-Vibration Bracket

Compressor

Mounting Rail

Base Frame

Rubber

Mount
