Danfoss TTS400 Applications And Installation Manual

80 of 114
M-AP-001-EN Rev. Q

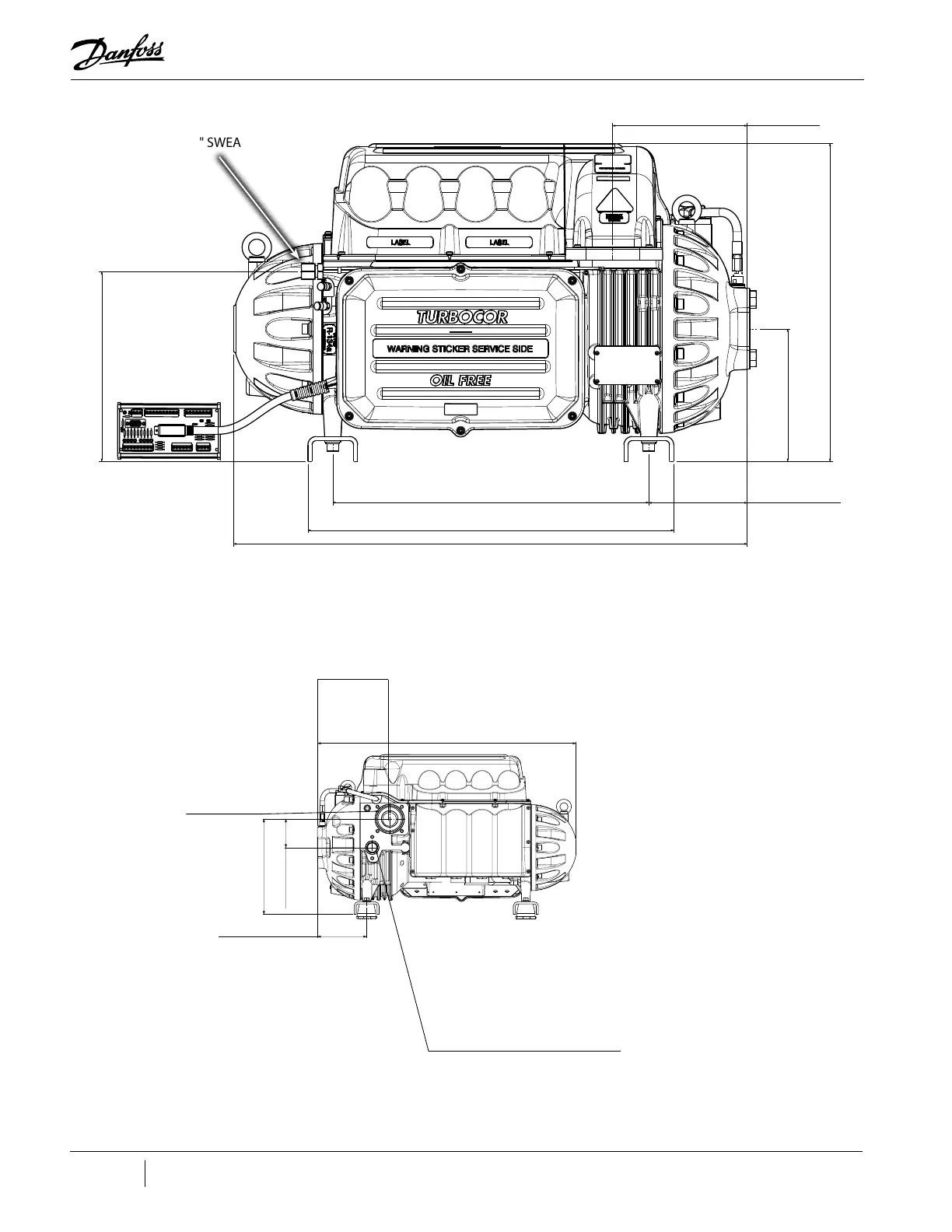

Figure 16-2 Service Side View (Excluding TTH/TGH Compressors)
Figure 16-3 Discharge Side View (Excluding TTH/TGH Compressors)
203.1 (8”)
484.35 (19.07”)
560.55 (22.07”)
291.1 (11.46”)
150.66 (5.93”)
487.66 (19.2”)
206.08 (8.11”)
787 (30.98”)
Front view
Scale: 1:2
MOTOR COOLING
FITTING SIZE 1/2" SWEAT
CONNECTION
Discharge Port 229.7 (9.04”) (TT300 & TG230)
220.2 (8.67”) (TT350, TT400, TT500, TT700, TG310, & TG520)
O-RING GROOVE
OD: 88.9 (3.49”)
WIDTH: 4.1 (0.16”)
ID: 80.7 (3.17”)
O-RING GROOVE
OD: 33.3 (1.31”) (TT300 & TG230)
41.3 (1.62”) (TT350, TT400, TT500, TT700,
WIDTH: 4.1 (0.16”)
ID: 25.1 (0.98”) (TT300 & TG230)
33.1 (1.30”) (TT350, TT400, TT500, TT700,
TG310, TG390, TG520)
150.66 (5.93")
(All Compressors)
87.34 (3.44")
787 (30.98")
TG310, TG390, TG520)
290.4 (11.43”)
