73 of 114M-AP-001-EN Rev. Q

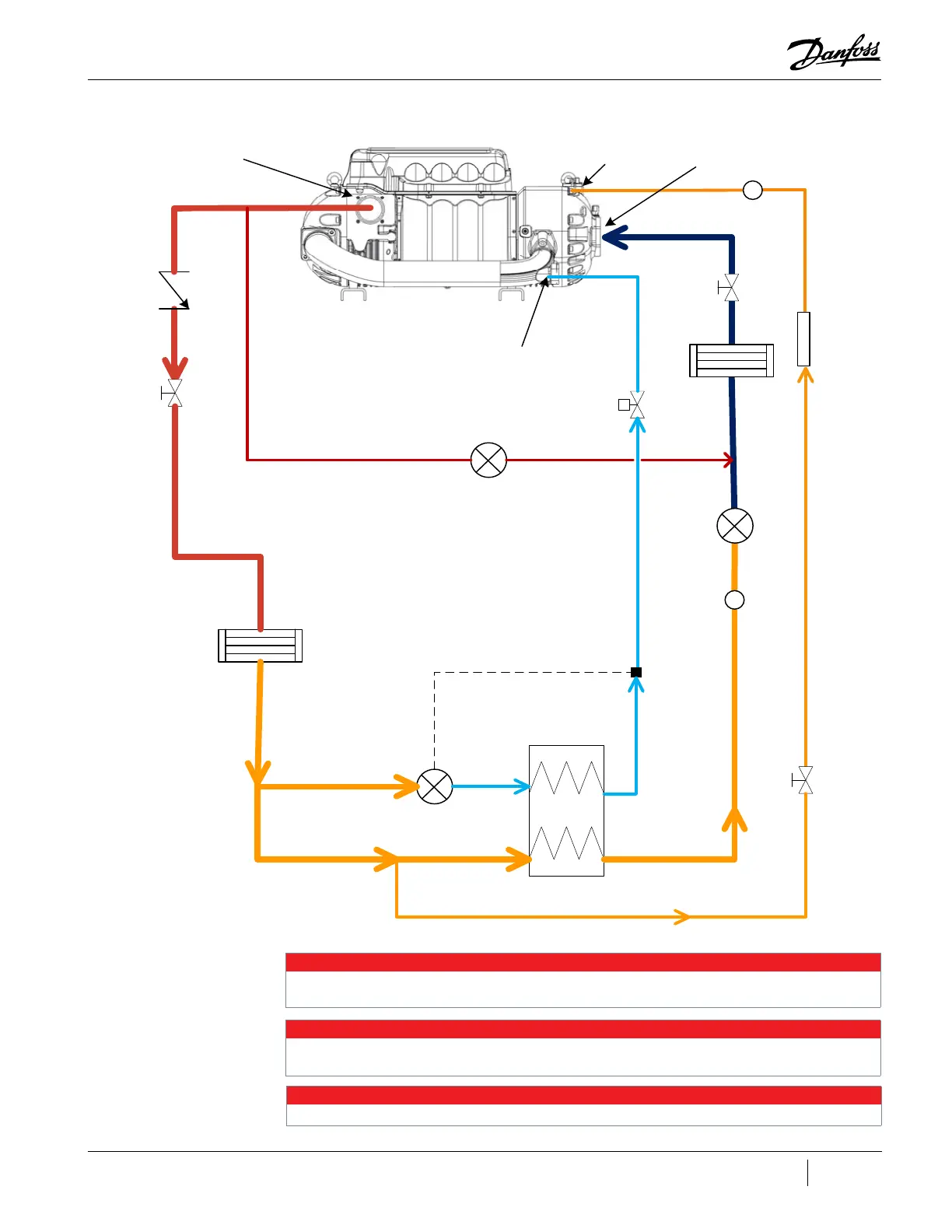

Figure 14-9 TTH/TGH Piping Schematic with Required Economizer (Closed Type) and Vapor Line Solenoid

NOTE

Failure to include a solenoid valve in the compressor VAPOR line, wired to close immediately when the compressor shuts down,

could result in serious damage to the compressor.

NOTE

All TGH/TTH compressors MUST include an economizer (ﬂash or plate style). If an economizer is not provided, signiﬁcant

instability should be expected and the operating range of the compressor will be limited.



MotorCooling

Port

Suction

Port

Economizer

Port

DischargePort

Sight

Glass

Filter/

Drier

Evaporator



Sight

Glass



Expansion

Valve



Condenserwith

Subcooler



Solenoid

Valve

Expansion

Valve

Check

Valve

Staging

Valve

NOTE

*Service valves are optional.

Default Chapter3
