2.

3.


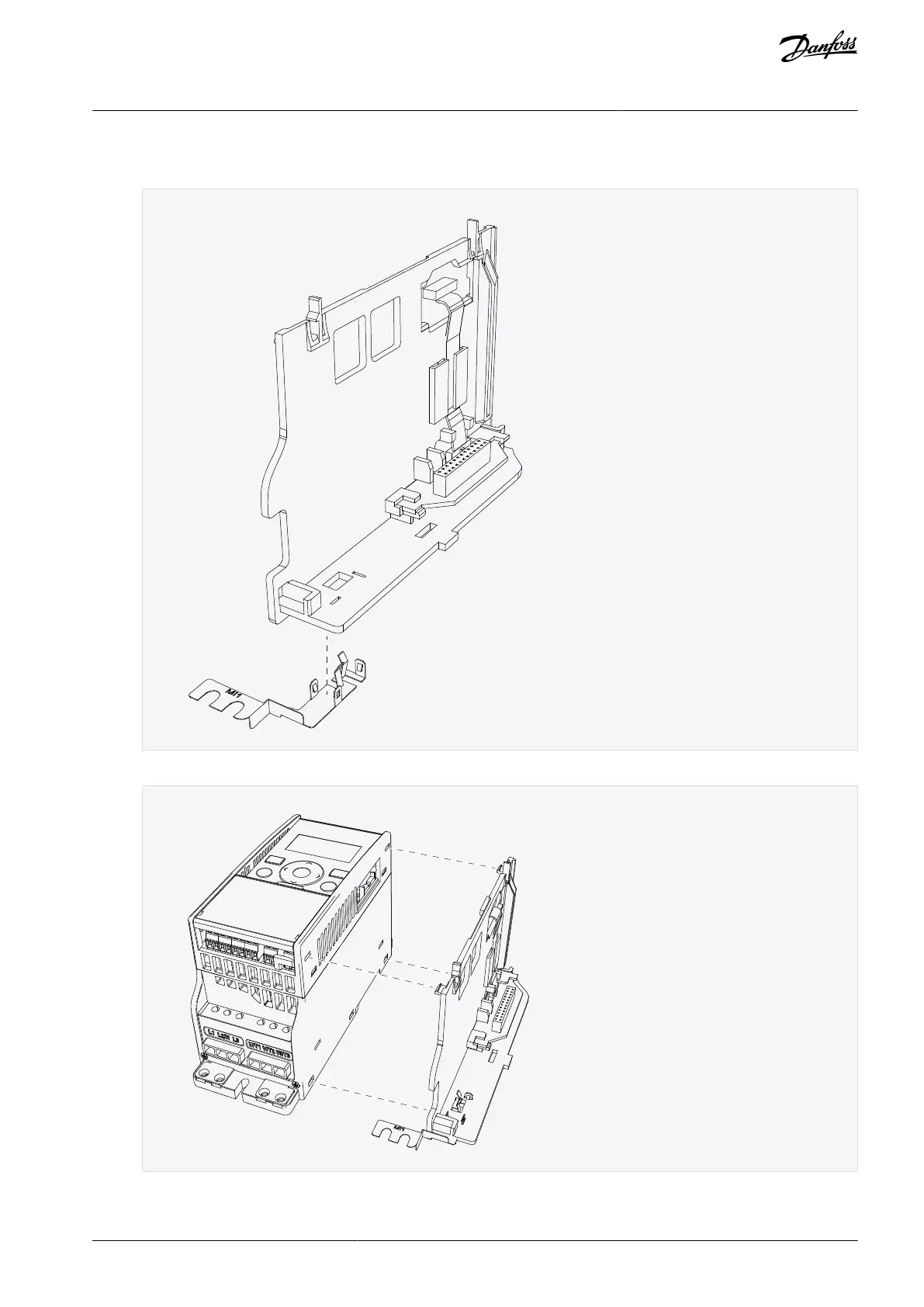

Select a correct grounding plate and attach it to the option board mounting frame. The grounding plate is marked with the
supported enclosure size.
e30bi043.10
Attach the option board mounting frame to the AC drive.
e30bi044.10
AN338644703080en-0002 / DPD02156 | 21Danfoss A/S © 2022.08
Installing
VACON® RS485 and CAN Bus Option Boards
Installation Guide
