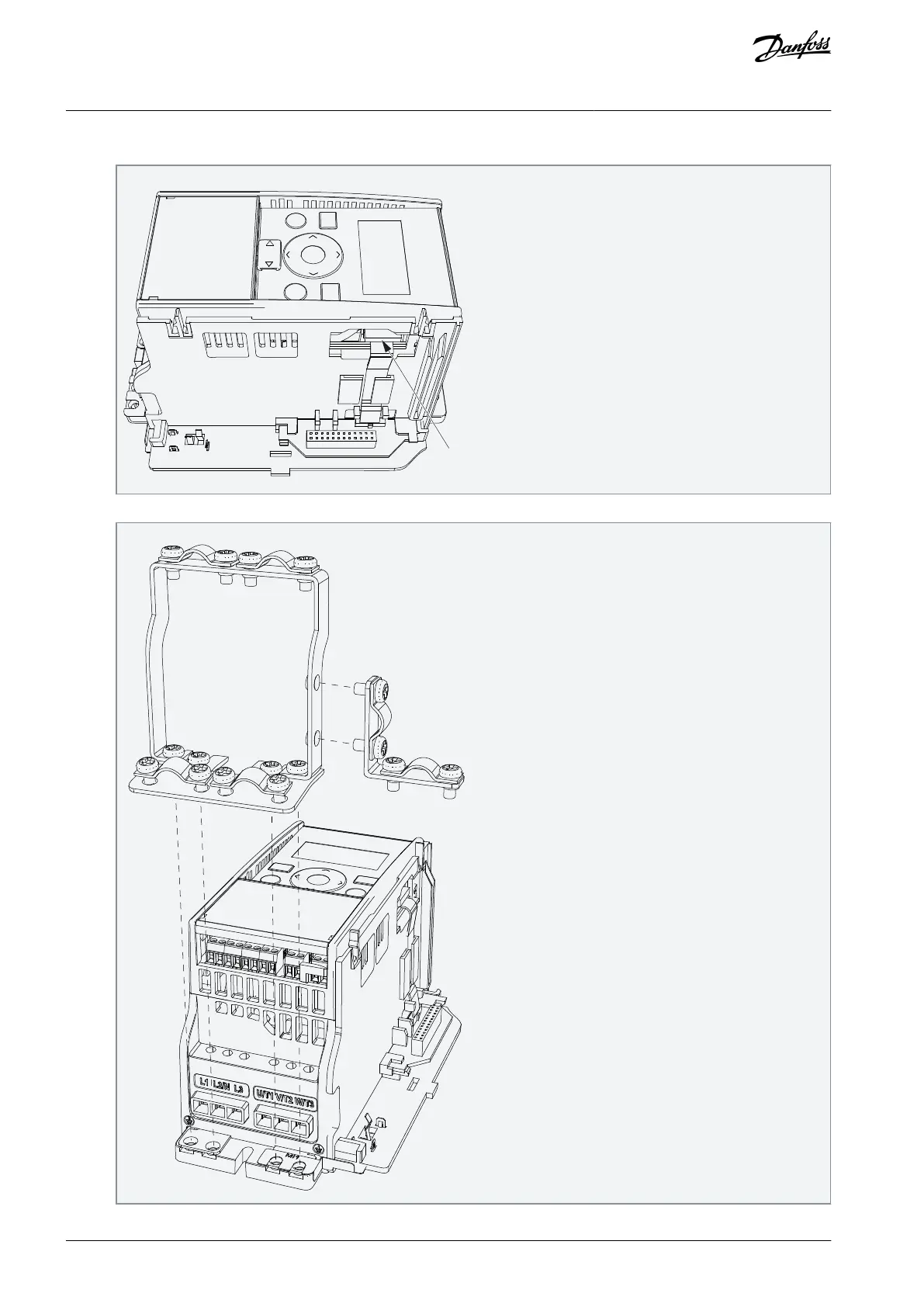

Connect the flat cable from the option board mounting frame to the AC drive.
e30bi045.10
If a strain relief is necessary for the cable, attach it.
e30bi046.10
