Danfoss VLT 3516 User Manual

VLT
®
Series 3500
15
Type Input Overall Dimensions Mounting Dimensions
VAC H W D a b c d
Chassis 380
Chassis 460
NEMA 1 380
NEMA 1 460
NEMA 12 230 31.89 (810) 13.78 (350) 11.02 (280) 12.83 (326) 22.05 (560) 7.09 (180) 2.76 (70)
NEMA 12 380
NEMA 12 460
inches (mm)
Type Input Overall Dimensions Mounting Dimensions
VAC H W D a b c d
Chassis 230 25.98 (660) 9.53 (242) 10.24 (260) 7.87 (200) 25.20 (640) 0.39 (10) 0.39 (10)
NEMA 1 230 26.77 (680) 9.53 (242) 10.24 (260) 7.87 (200) 25.20 (640) 1.18 (30) 0.39 (10)

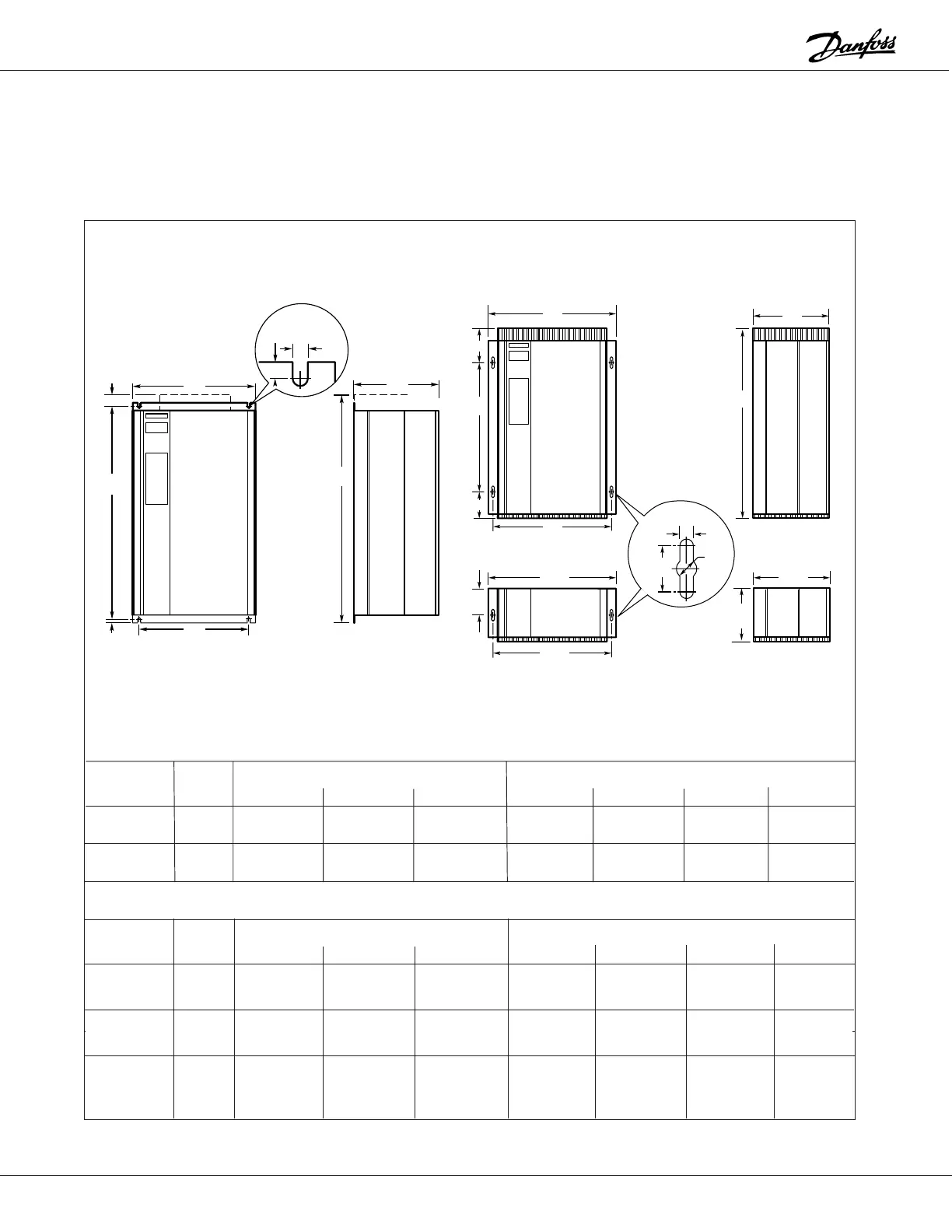

Drawing 1
VLT 3011
VLT 3511 Dimensions
a
b
0.33
(8.5)
D
H
d
c
W
0.39
(10)
W
a
b
c
0.98
(25)
0.33
(8.5)
2.28
(58)
10.16
(258)
Ø0.57
(14.5)
D
H
d
11.18
(284)
7.01
(178)
4.53
(115)
Add-On Module
Drawing 2
Drawing 1
Drawing 2
20.87 (530) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 4.53 (115) 3.35 (85)
20.87 (530) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 4.53 (115) 3.35 (85)
19.69 (500) 11.18 (284) 7.01 (178) 10.16 (258) 12.99 (330) 4.53 (115) 2.17 (55)

Danfoss VLT 3516 Specifications

General

Brand	Danfoss
Model	VLT 3516
Category	DC Drives
Language	English
