5.1.14. Motor connection for A5

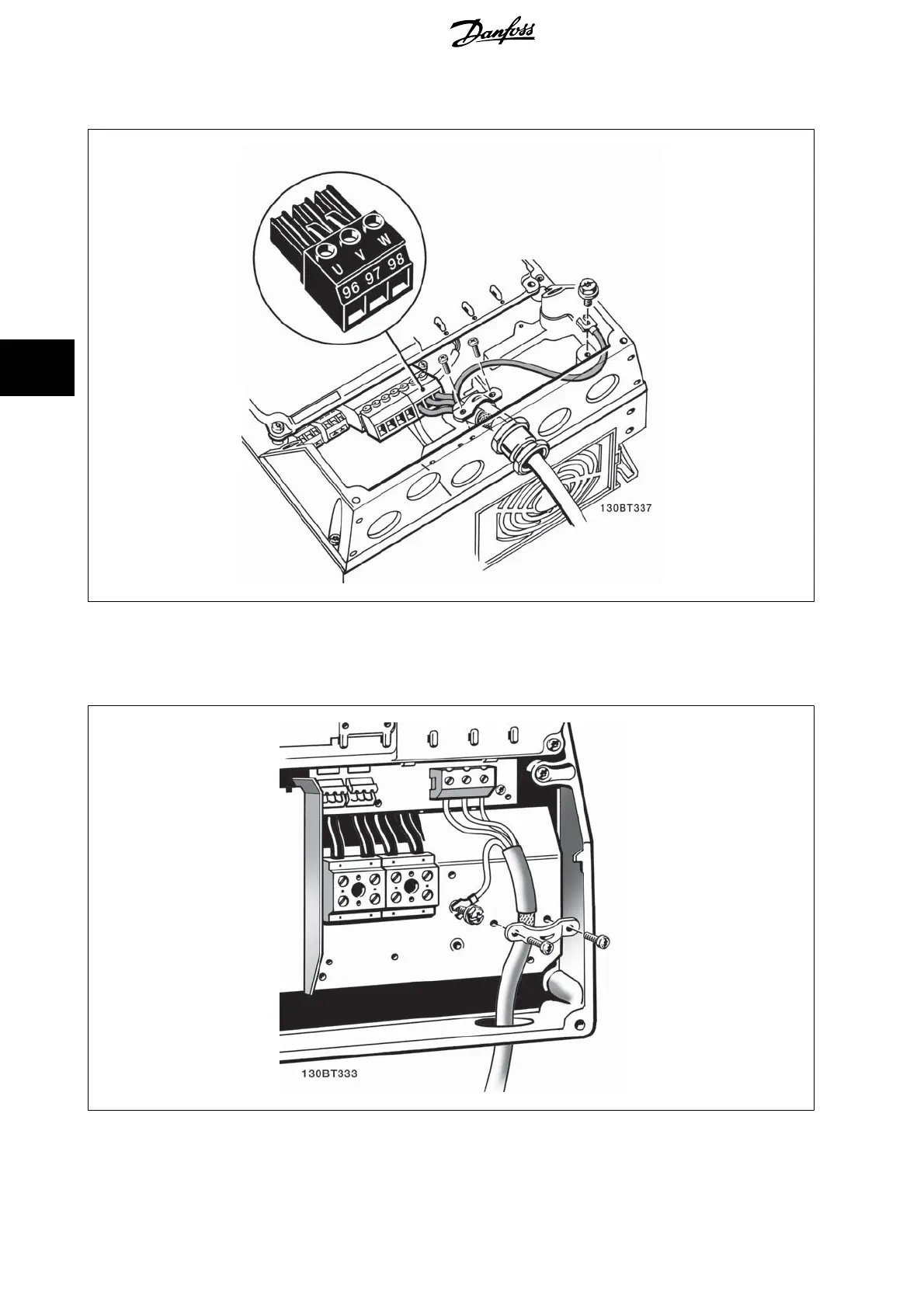

Illustration 5.22: First terminate the motor earth, then place motor U, V and W wires in terminal and tighten. Please ensure that the outer insulation
of the motor cable is removed under the EMC clamp.
5.1.15. Motor connection for B1 and B2
Illustration 5.23: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the outer insulation
of the motor cable is removed under the EMC clamp.
