Danfoss VLT AQUA Drive FC 202 Operating Instructions

6. Application Examples

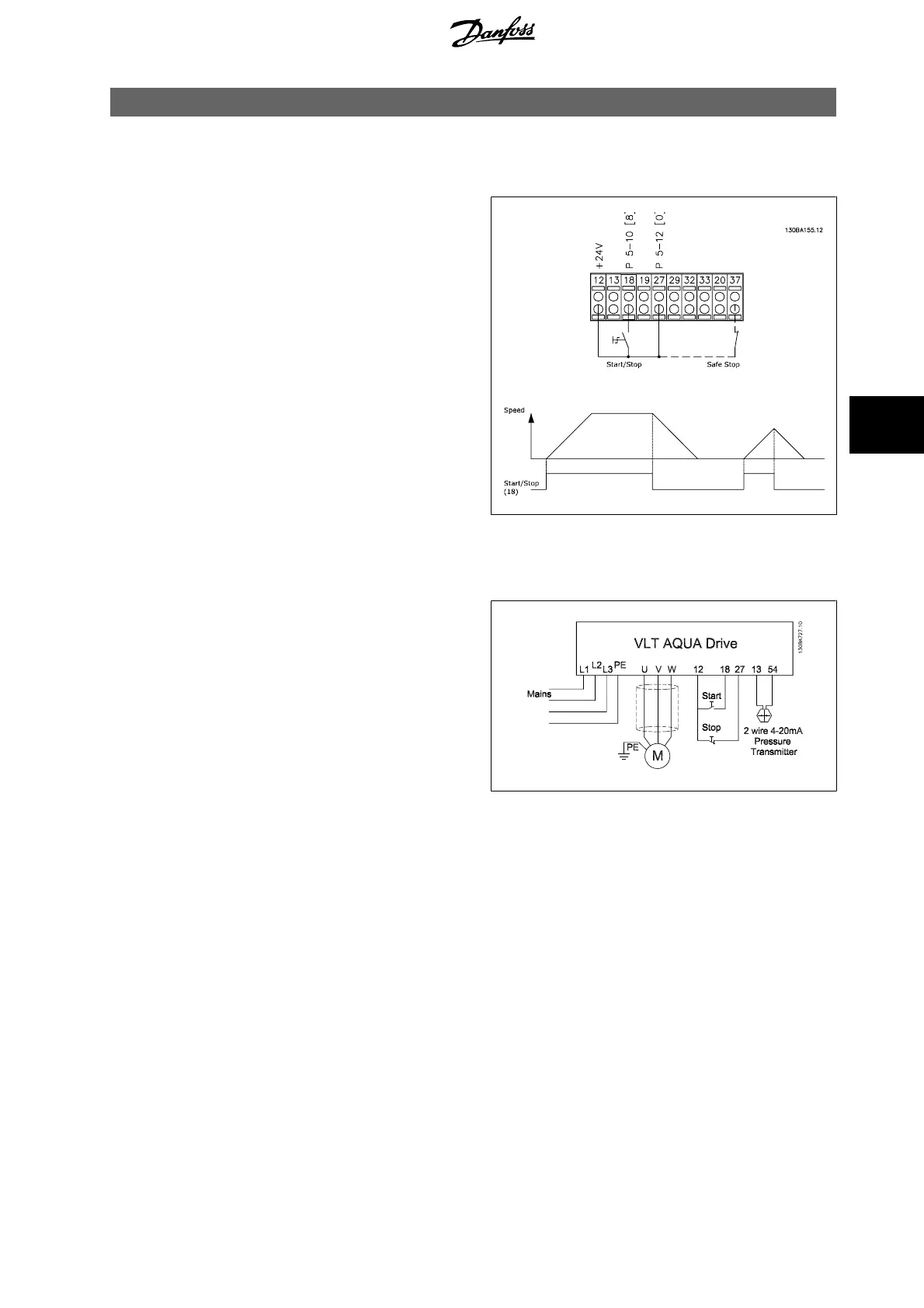

6.1.1. Start/Stop
Terminal 18 = start/stop par. 5-10 [8] Start
Terminal 27 = No operation par. 5-12 [0] No operation (Default coast
inverse
Par. 5-10 Digital Input, Terminal 18 = Start (default)
Par. 5-12
Digital Input, Terminal 27 = coast inverse (default)
Illustration 6.1: Terminal 37: Available only with Safe Stop Function!
6.1.2. Closed Loop Wiring
Terminal 12 /13: +24V DC
Terminal 18: Start par. 5-18 [8] Start (Default)
Terminal 27: Coast par. 5-12 [2] coast inverse (Default)
Terminal 54: Analog input
L1-L3: Mains terminals
U,V and W: Motor terminals
VLT
®
AQUA Drive
Operating Instructions
6. Application Examples
MG.20.M5.02 - VLT
®
is a registered Danfoss trademark 47
6
