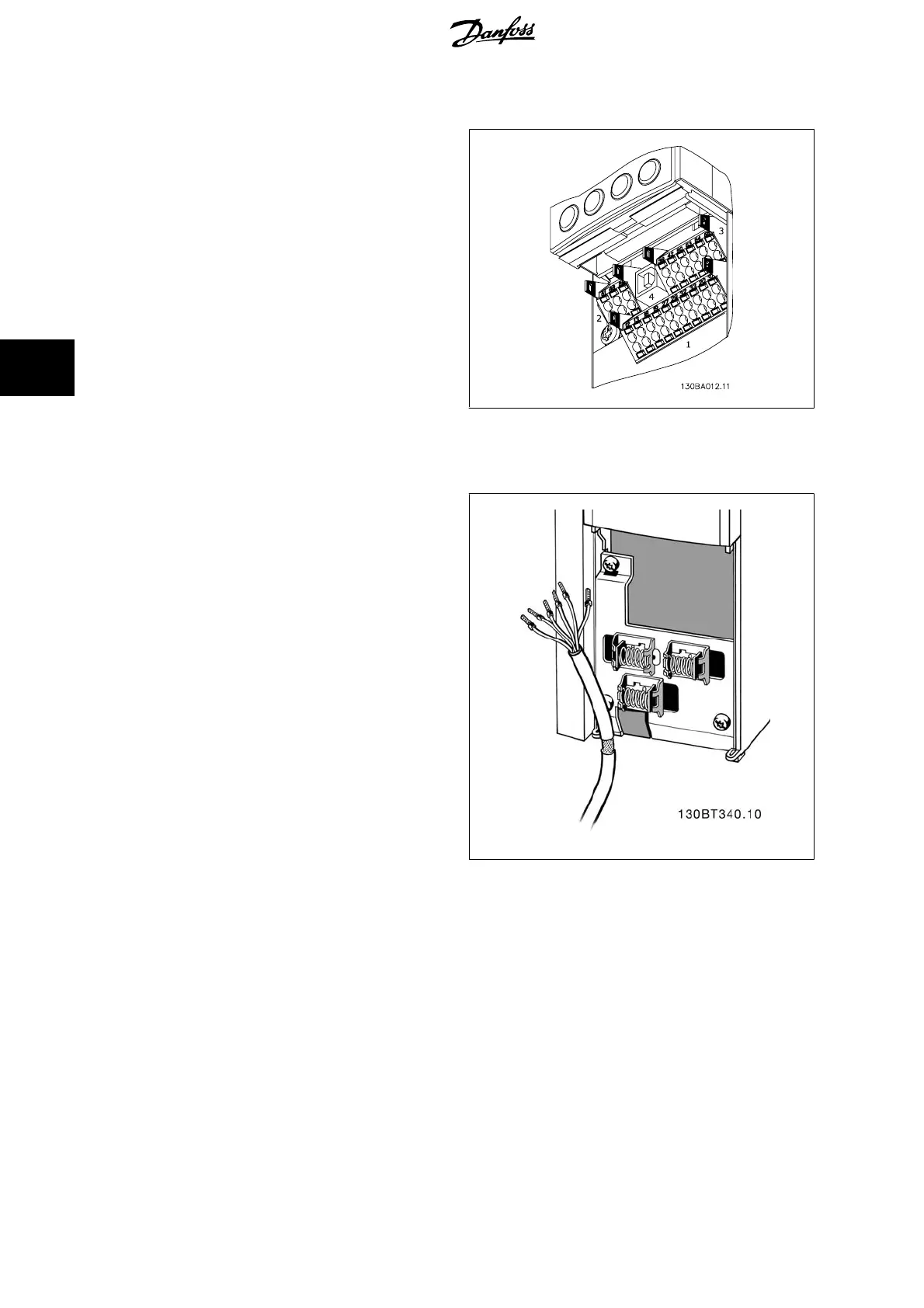

5.1.25. Control Terminals
Drawing reference numbers:
1. 10 pole plug digital I/O.
2. 3 pole plug RS-485 Bus.
3. 6 pole analog I/O.
4. USB connection.
Illustration 5.43: Control terminals (all enclosures)
5.1.26. Control Cable Clamp
1. Use a clamp from the accessory bag to connect screen to fre-
quency converter decoupling plate for control cables.
See section entitled
Earthing of Screened/Armoured Control Cables
for
the correct termination of control cables.
Illustration 5.44: Control cable clamp.
5. Electrical installation
VLT
®
AQUA Drive
Operating Instructions
40
MG.20.M5.02 - VLT
®
is a registered Danfoss trademark
5
