5.1.24. Access to Control Terminals
All terminals to the control cables are located underneath the terminal
cover on the front of the frequency converter. Remove the terminal cover
with a screwdriver.
130BT248

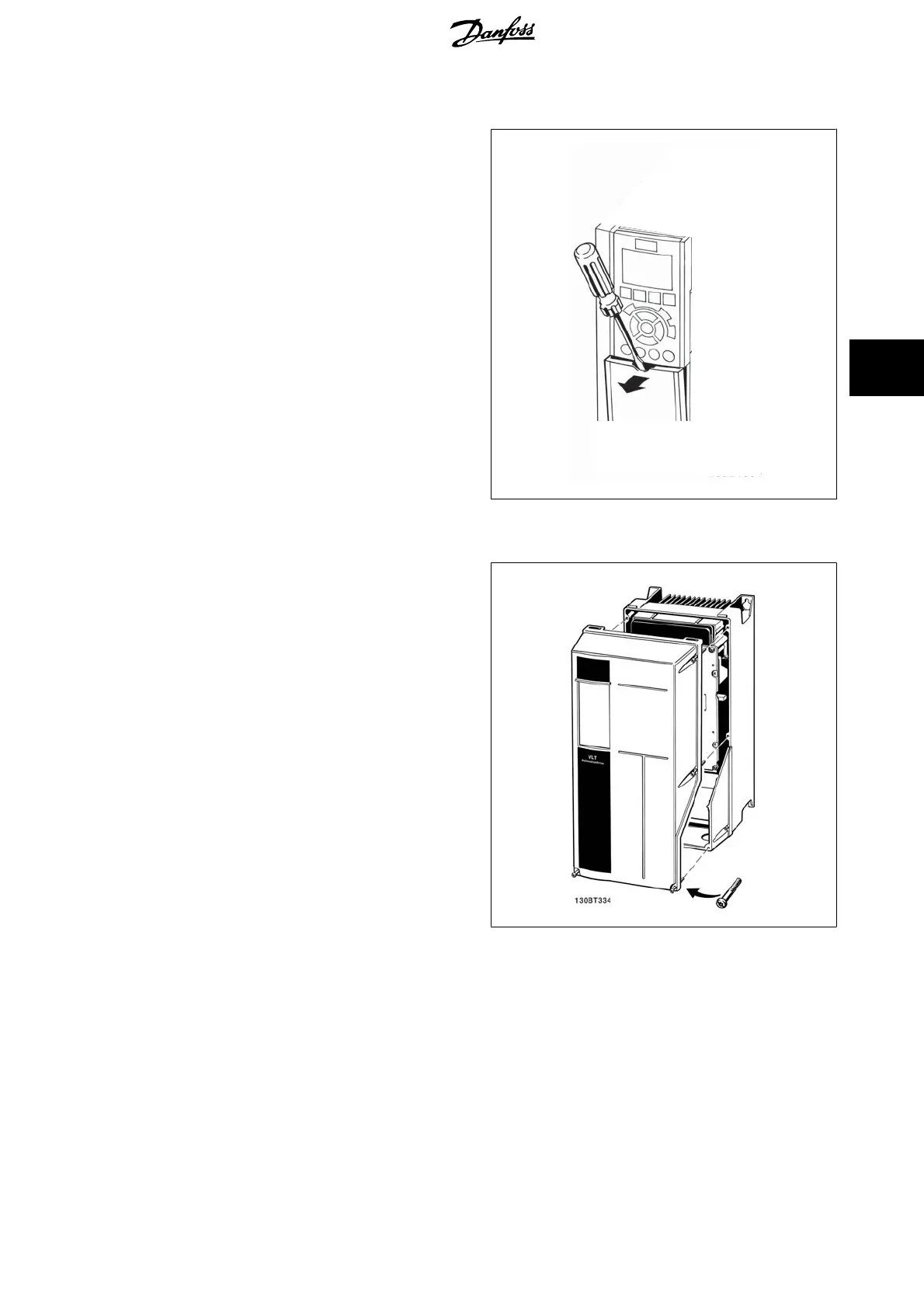

Illustration 5.41: Access to control terminals for A2, A3, B3, B4, C3 and
C4 enclosures
Remove front-cover to access control terminals. When replacing the
front-cover, please ensure proper fastening by applying a torque of 2 Nm.
Illustration 5.42: Access to control terminals for A5, B1, B2, C1 and C2
enclosures
VLT
®
AQUA Drive
Operating Instructions
5. Electrical installation
MG.20.M5.02 - VLT
®
is a registered Danfoss trademark
39
5
