Danfoss VLT AQUA Drive FC 202 Operating Instructions

It is recommended to do the set-up in the order listed.

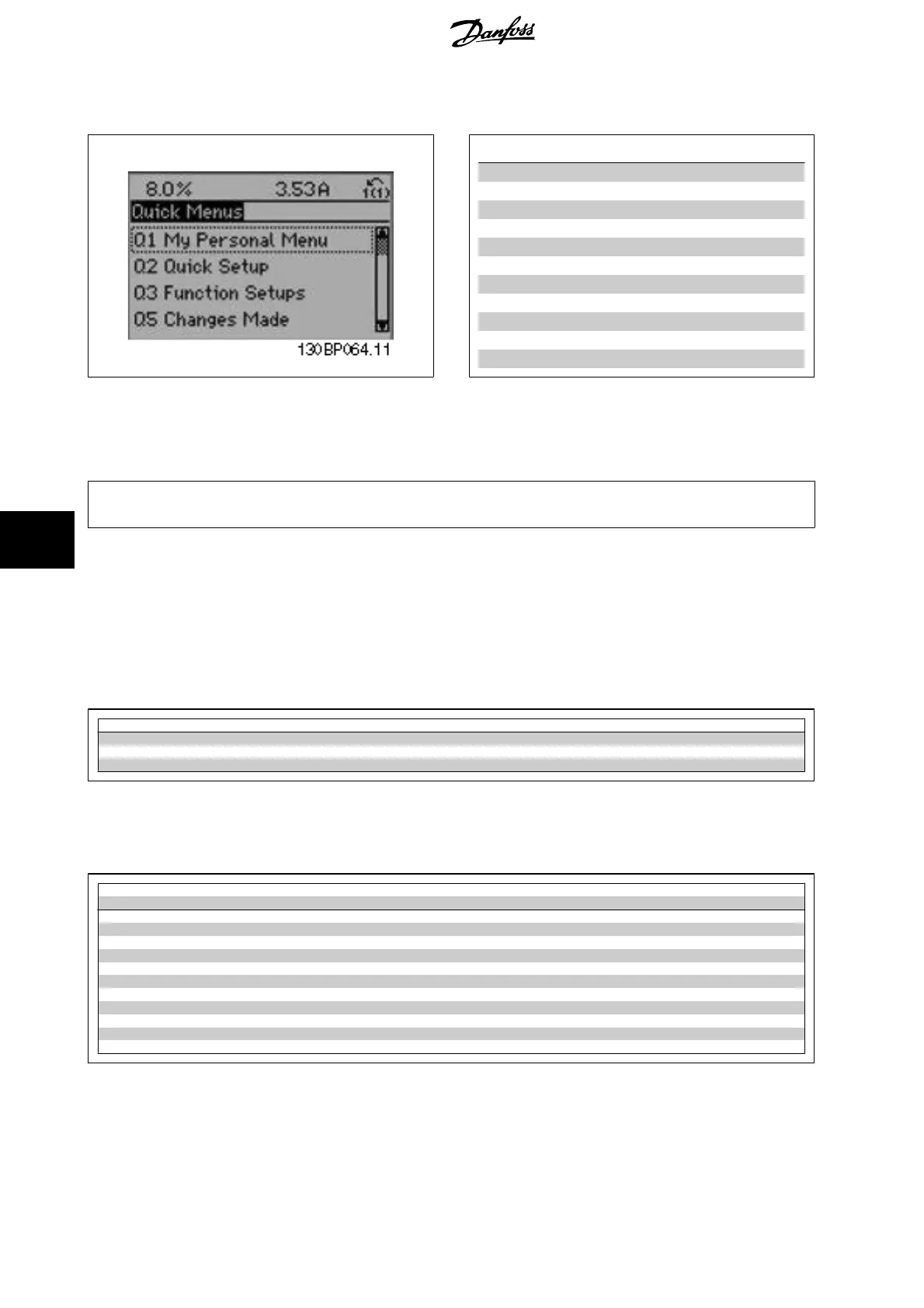

Illustration 8.1: Quick menu view.
Par.
Designation [Units]
0-01 Language
1-20 Motor Power [kW]
1-22 Motor Voltage [V]
1-23 Motor Frequency [Hz]
1-24 Motor Current [A]
1-25 Motor Nominal Speed [RPM]
3-41 Ramp 1 Ramp up Time [s]
3-42 Ramp 1 Ramp down Time [s]
4-11 Motor Speed Low Limit [RPM]
4-13 Motor Speed High Limit [RPM]
1-29 Automatic Motor Adaptation (AMA)
Table 8.2: Quick Setup parameters
If
No Operation is selected in terminal 27 no connection to +24 V on terminal 27 is necessary to enable start.
If
Coast Inverse (factory default value) is selected in Terminal 27, a connection to +24V is necessary to enable start.
NB!
For detailed parameter descriptions, please see the following section on
Commonly Used Parameters - Explanations .
8.1.3. Q1 My Personal Menu
Parameters defined by the user can be stored in Q1 My Personal Menu.
Select
My Personal Menu to display only the parameters, which have been pre-selected and programmed as personal parameters. For example, a pump
or equipment OEM may have pre-programmed these to be in My Personal Menu during factory commissioning to make on site commissioning / fine tuning
simpler.. These parameters are selected in par. 0-25
My Personal Menu . Up to 20 different parameters can be defined in this menu.
Q1 My Personal Menu
20-21 Setpoint 1
20-93 PID Proportional Gain
20-94 PID Integral Time
8.1.4. Q2 Quick Setup
The parameters in Q2 Quick Setup are the basic parameters which are always needed to set-up the frequency converter to operation.
Q2 Quick Setup
Parameter number and name Unit
0-01 Language
1-20 Motor Power kW
1-22 Motor Voltage V
1-23 Motor Frequency Hz
1-24 Motor Current A
1-25 Motor Nominal Speed RPM
3-41 Ramp 1 Ramp Up Time s
3-42 Ramp 1 Ramp Down Time s
4-11 Motor Speed Low Limit RPM
4-13 Motor Speed High Limit RPM
1-29 Automatic Motor Adaptation (AMA)
8. How to programme the frequency converter
VLT
®
AQUA Drive
Operating Instructions
64 MG.20.M5.02 - VLT
®
is a registered Danfoss trademark
8
