3. Introduction
3.1. Introduction

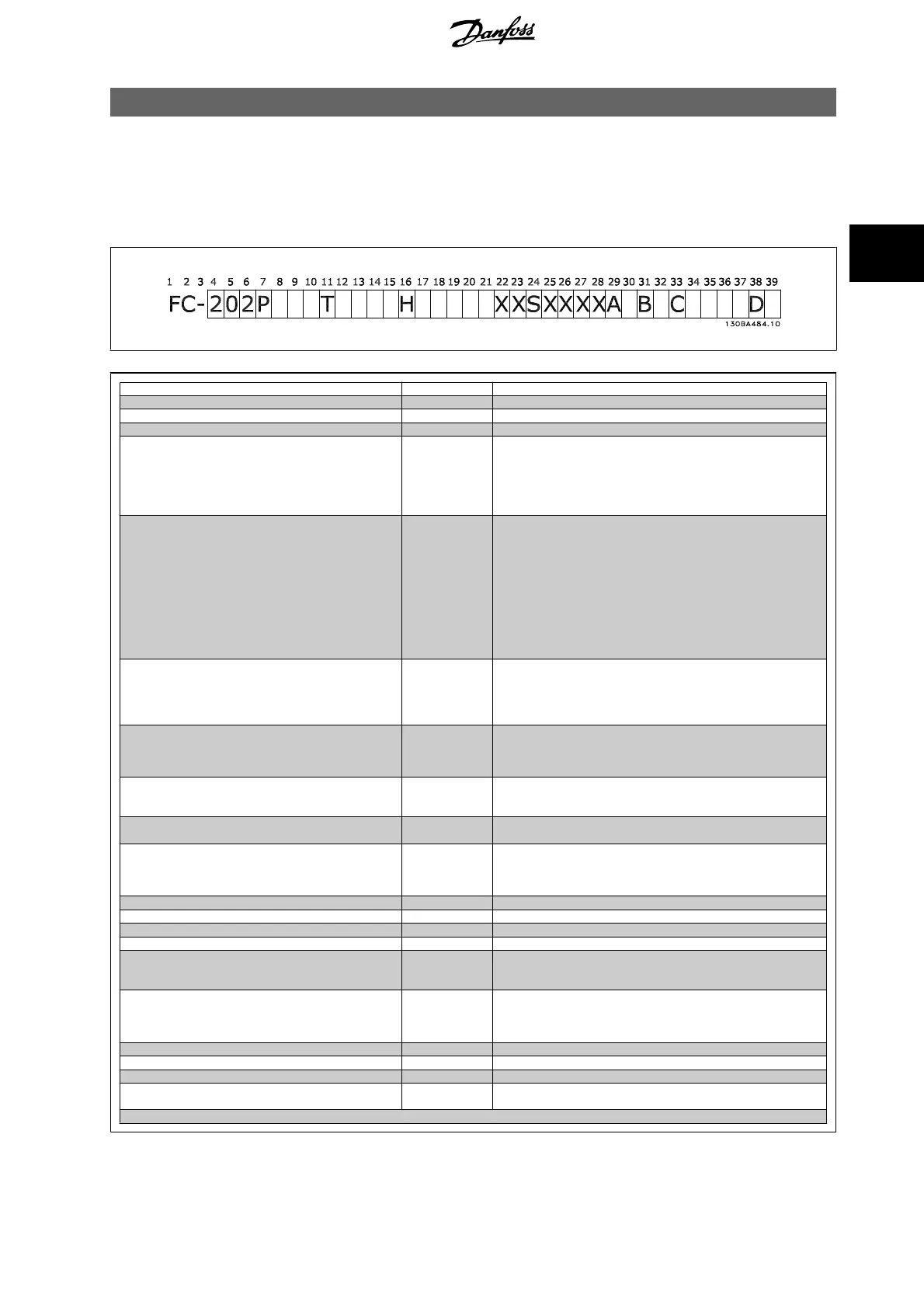

3.1.1. Type Code String
Description Pos Possible choice
Product group & VLT Series 1-6 FC 202
Power rating 8-10 0.25 - 630 kW
Number of phases 11 Three phases (T)
Mains voltage 11-12
S2: 220-240 VAC single phase
S4: 380-480 VAC single phase
T 2: 200-240 VAC
T 4: 380-480 VAC
T 6: 525-600 VAC
T 7: 525-690 VAC
Enclosure 13-15
E20: IP20
E21: IP 21/NEMA Type 1
E55: IP 55/NEMA Type 12
E2M: IP21/NEMA Type 1 w/mains shield
E5M: IP 55/NEMA Type 12 w/mains shield
E66: IP66
F21: IP21 kit without backplate
G21: IP21 kit with backplate
P20: IP20/Chassis with backplate
P21: IP21/NEMA Type 1 w/backplate
P55: IP55/NEMA Type 12 w/backplate
RFI filter 16-17
HX: No RFI filter
H1: RFI filter class A1/B
H2: RFI filter class A2
H3: RFI filter class A1/B (reduced cable length)
H4: RFI filter class A2/A1
Brake 18
X: No brake chopper included
B: Brake chopper included
T: Safe Stop
U: Safe + brake
Display 19
G: Graphical Local Control Panel (GLCP)
N: Numeric Local Control Panel (NLCP)
X: No Local Control Panel
Coating PCB 20
X. No coated PCB
C: Coated PCB
Mains option 21
D: Loadsharing
X: No Mains disconnect switch
1: With Mains disconnect switch
8: Mains Disconnect + Loadsharing
Adaptation 22 Reserved
Adaptation 23 Reserved
Software release 24-27 Actual software
Software language 28
A options 29-30
AX: No options
A0: MCA 101 Profibus DP V1
A4: MCA 104 DeviceNet
B options 31-32
BX: No option
BK: MCB 101 General purpose I/O option
BP: MCB 105 Relay option
BO:MCB 109 Analog I/O option
C0 options MCO 33-34 CX: No options
C1 options 35 X: No options
C option software 36-37 XX: Standard software
D options 38-39
DX: No option
D0: DC back-up
The various options are described further in the
VLT AQUA Drive Design Guide
.
Table 3.1: Type code description.
VLT
®
AQUA Drive
Operating Instructions
3. Introduction
MG.20.M5.02 - VLT
®
is a registered Danfoss trademark
11
3
