5.1.27. Electrical Installation and Control Cables

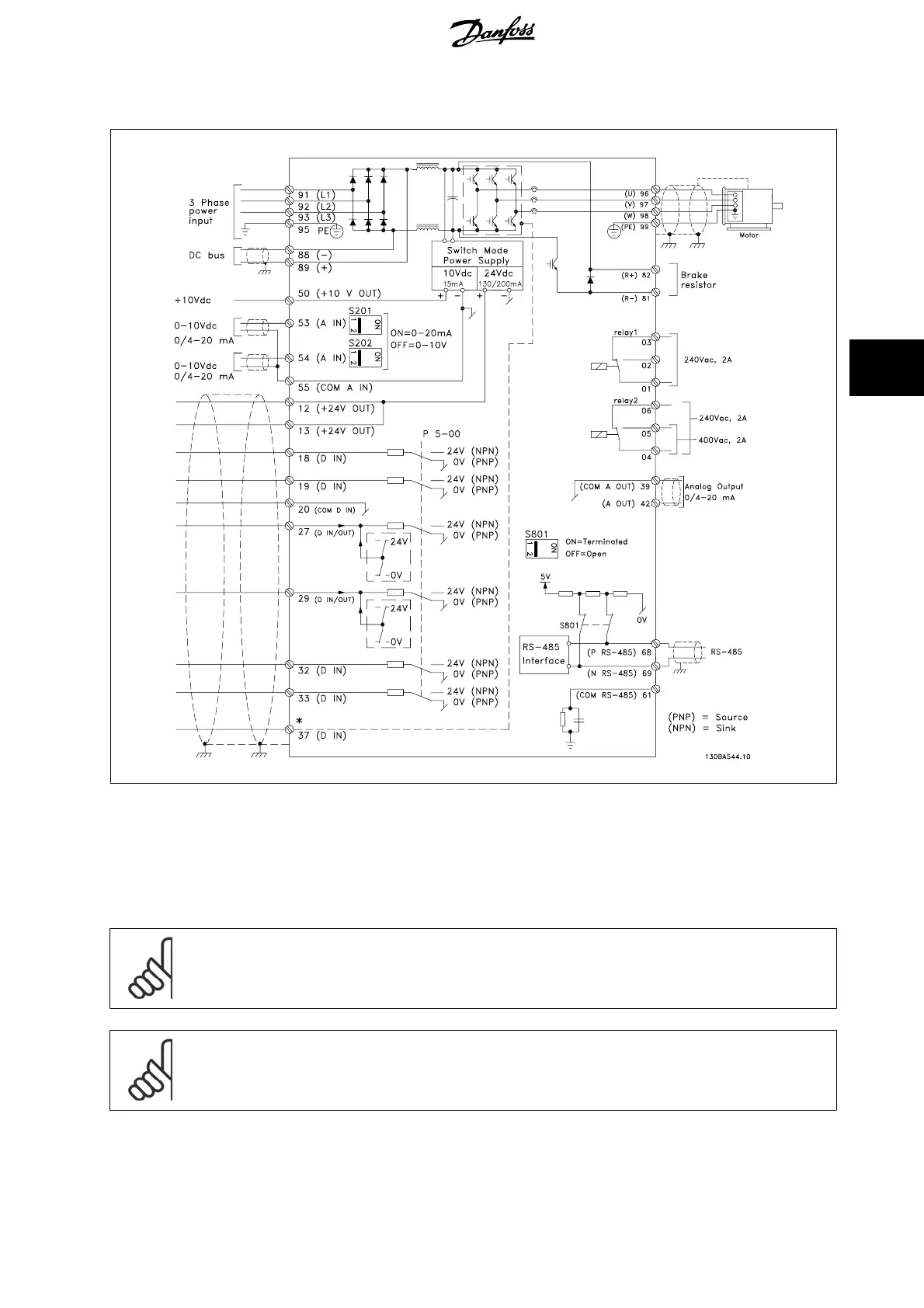

Illustration 5.45: Diagram showing all electrical terminals. (Terminal 37 present for units with Safe Stop Function only.)
Very long control cables and analog signals may, in rare cases and depending on installation, result in 50/60 Hz earth loops due to noise from mains
supply cables.
If this occurs, break the screen or insert a 100 nF capacitor between screen and chassis.
NB!
The common of digital / analog inputs and outputs should be connected to separate common terminals 20, 39, and 55. This will avoid
ground current interference among groups. For example, it avoids switching on digital inputs disturbing analog inputs.
NB!
Control cables must be screened/armoured.
VLT
®
AQUA Drive
Operating Instructions
5. Electrical installation
MG.20.M5.02 - VLT
®
is a registered Danfoss trademark
41
5
