3.7.7 5-6* Pulse Outputs

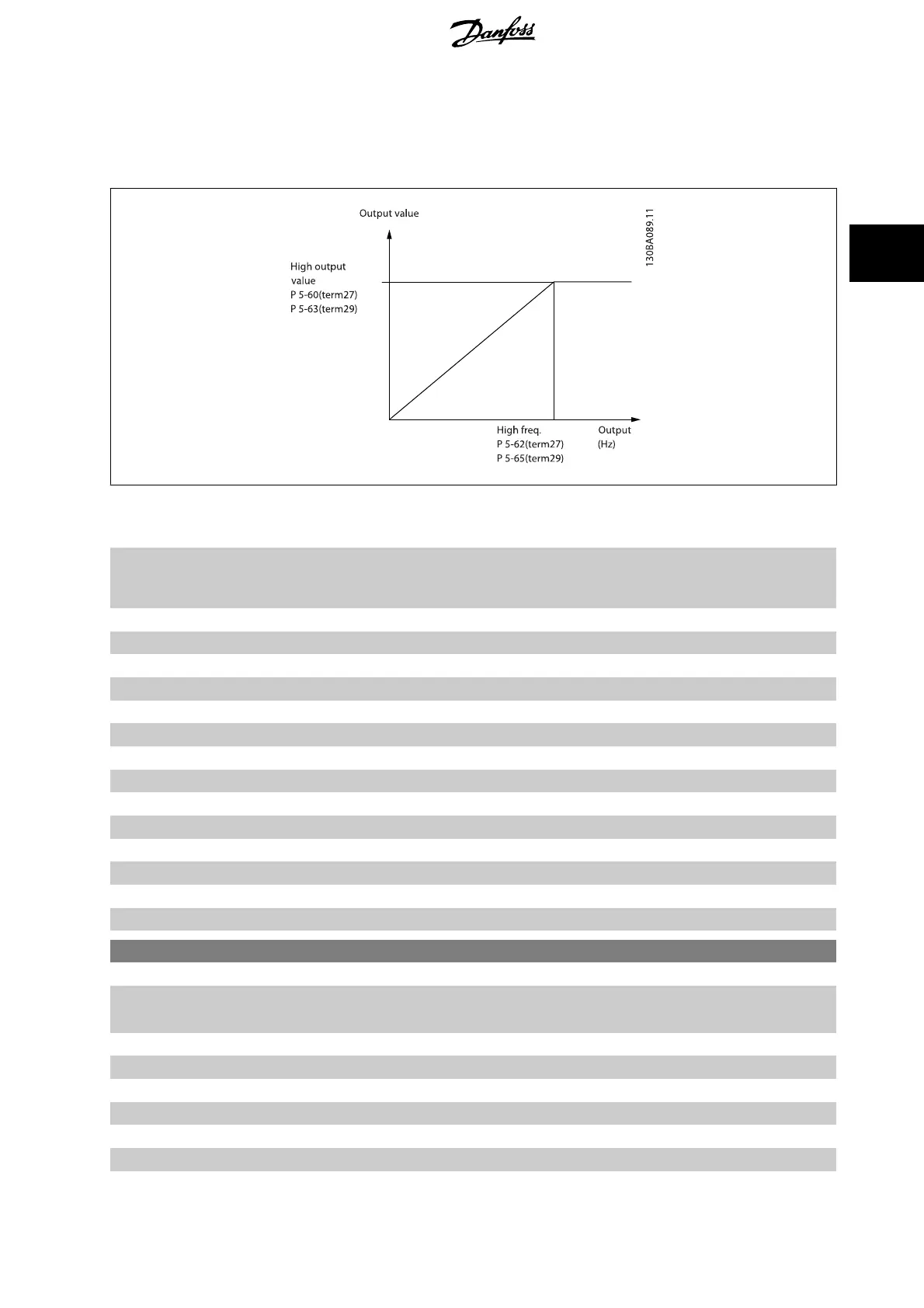

These parameters are to configure pulse outputs with their functions and scaling. Terminal 27 and 29 are allocated to pulse output via par. 5-01 Terminal
27 Mode
and par. 5-02 Terminal 29 Mode , respectively.
Options for readout output variables:
Parameters for configuring the scaling and output functions of pulse outputs. The pulse outputs are
designated to terminals 27 or 29. Select terminal 27 output in par. 5-01
Terminal 27 Mode and
terminal 29 output in par. 5-02
Terminal 29 Mode .
[0] No operation
[45] Bus control
[48] Bus control time-out
[51] MCO controlled
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque relative to limit
[105] Torque relative to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
5-60 Terminal 27 Pulse Output Variable
Option: Function:
[0] No operation Select the desired display output for terminal 27.
This parameter cannot be adjusted while the motor is running.
[45] Bus ctrl.
[48] Bus ctrl., timeout
[51] MCO controlled
[100] Output frequency
[101] Reference
[102] Feedback
FC 300 Programming Guide 3 Parameter descriptions
MG.33.M8.02 - VLT
®
is a registered Danfoss trademark 111
