0-25 My Personal Menu
Range: Function:
Application
dependent*
[0 - 9999 ] Define up to 50 parameters to appear in the Q1 Personal Menu, accessible via the [Quick Menu]
key on the LCP. The parameters will be displayed in the Q1 Personal Menu in the order they are
programmed into this array parameter. Delete parameters by setting the value to ‘0000’.
For example, this can be used to provide quick, simple access to just one or up to 50 parameters
which require changing on a regular basis (e.g. for plant maintenance reasons) or by an OEM to
enable simple commissioning of their equipment.
3.2.5 0-3*LCP Custom Readout
It is possible to customize the display elements for various purposes: *Custom Readout. Value proportional to speed (Linear, squared or cubed depending
on unit selected in par. 0-30
Custom Readout Unit
) *Display Text. Text string stored in a parameter.
Custom Readout

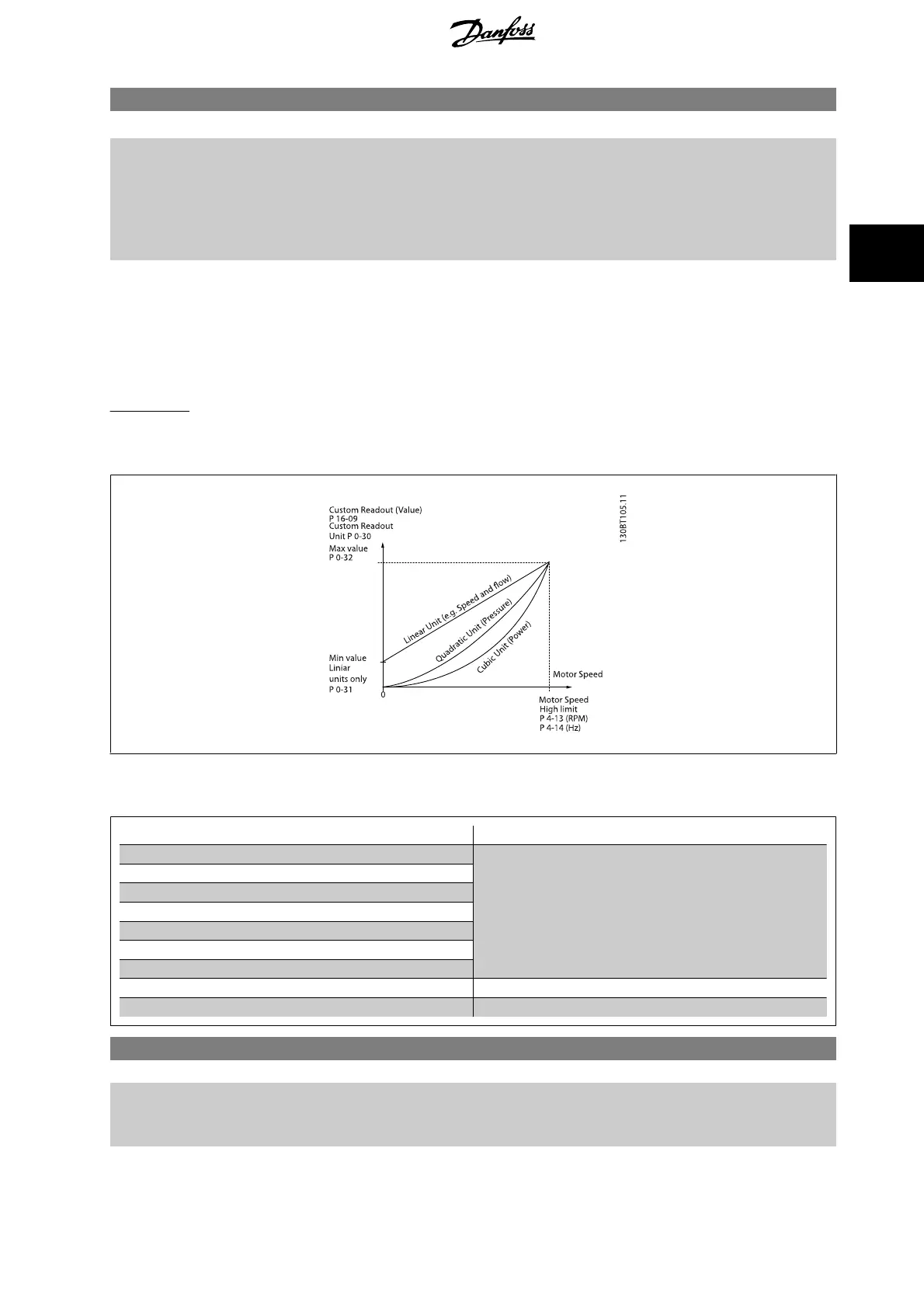

The calculated value to be displayed is based on settings in par. 0-30
Custom Readout Unit
, par. 0-31
Custom Readout Min Value
(linear only),
par. 0-32
Custom Readout Max Value
, par. 4-13
Motor Speed High Limit [RPM]
, par. 4-14
Motor Speed High Limit [Hz]
and actual speed.
The relation will depend on the type of unit selected in par. 0-30
Custom Readout Unit
:
Unit Type Speed Relation
Dimensionless Linear
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure Quadratic
Power Cubic
0-30 Unit for User-defined Readout
Option: Function:
It is possible to program a value to be shown in the display of the LCP. The value will have a linear,
squared or cubed relation to speed. This relation will depend on the unit selected (see table above).
The actual calculated value can be read in par. 16-09
Custom Readout
, and/or shown in the display
FC 300 Programming Guide 3 Parameter descriptions
MG.33.M8.02 - VLT
®
is a registered Danfoss trademark
39
