Key Function
9 [Back]
For moving to the previous step or layer
in the navigation structure.
10
[
▲
] [
▼
]
For switching between parameter groups,
parameters, and within parameters, or
increasing/decreasing parameter values.
Arrows can also be used for setting local
reference.
11 [OK]
Press to access parameter groups or to
enable a selection.
12
[►]
Press to move from left to right within
the parameter value to change each digit
individually.
Table 5.3 Legend to Illustration 5.2, Navigation Keys
D. Operation keys and indicator lights (LEDs)
Key Function
13 Hand On
Starts the frequency converter in local control.
•
An external stop signal by control input or
serial communication overrides the local
hand on.
14 O/Reset
Stops the motor but does not remove power
to the frequency converter, or resets the
frequency converter manually after a fault has
been cleared. If in alarm mode, the alarm is
reset if the alarm condition is removed.
15 Auto On
Puts the system in remote operational mode.
•
Responds to an external start command by
control terminals or bus communication.
Table 5.4 Legend to Illustration 5.2, Section D
WARNING
HIGH VOLTAGE
Touching the frequency converter after pressing the [O/
Reset] key is still dangerous, because the key does not
disconnect the frequency converter from the mains.
•
Disconnect the frequency converter from the
mains and wait for the frequency converter to
fully discharge. See the discharge time in
Table 2.1.
5.4.2 The Right-key Function on NLCP
Press [►] to edit any of the 4 digits on the display
individually. When pressing [►] once, the cursor moves to
the rst digit and the digit starts ashing as shown in
Illustration 5.4. Press the [
▲
] [
▼
] to change the value.
Pressing [►] does not change the value of the digits or
move the decimal point.
130BC440.10
Setup 1
Setup 1
Setup 1
Setup 1
Setup 1

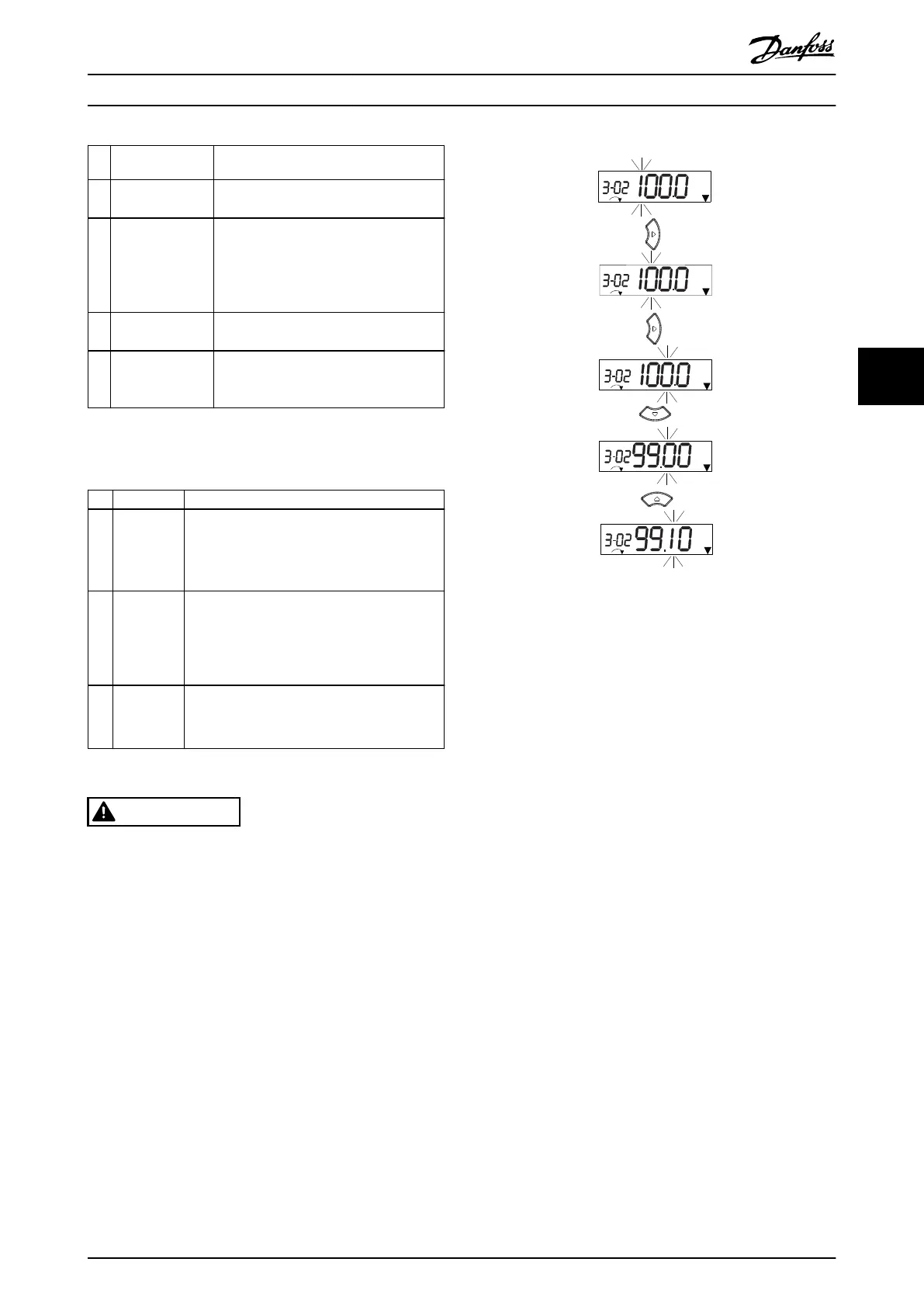

Illustration 5.4 Right-key Function
[►] can also be used for moving between parameter
groups. When in Main Menu, press [►] to move to the rst
parameter in the next parameter group (for example, move
from parameter 0-03 Regional Settings [0] International to
parameter 1-00 Conguration Mode [0] Open loop).
5.4.3 Quick Menu on NLCP
The Quick Menu gives easy access to the most frequently
used parameters.
1. To enter Quick Menu, press [Menu] until the
indicator in display is placed above Quick Menu.
2.
Press [
▲
] [
▼
] to select either QM1 or QM2, then
press [OK].
3.
Press [
▲
] [
▼
] to browse through the parameters in
Quick Menu.
4. Press [OK] to select a parameter.
5.
Press [
▲
] [
▼
] to change the value of a parameter
setting.
6. Press [OK] to accept the change.
7. To exit, press either [Back] twice (or 3 times if in
QM2 and QM3) to enter Status, or press [Menu]
once to enter Main Menu.
