5.4.8 Mounting the GLCP
Use the GLCP adapter (ordering number: 132B0281) and a
cable to connect the LCP 102 to frequency converter, as
shown in Illustration 5.11.

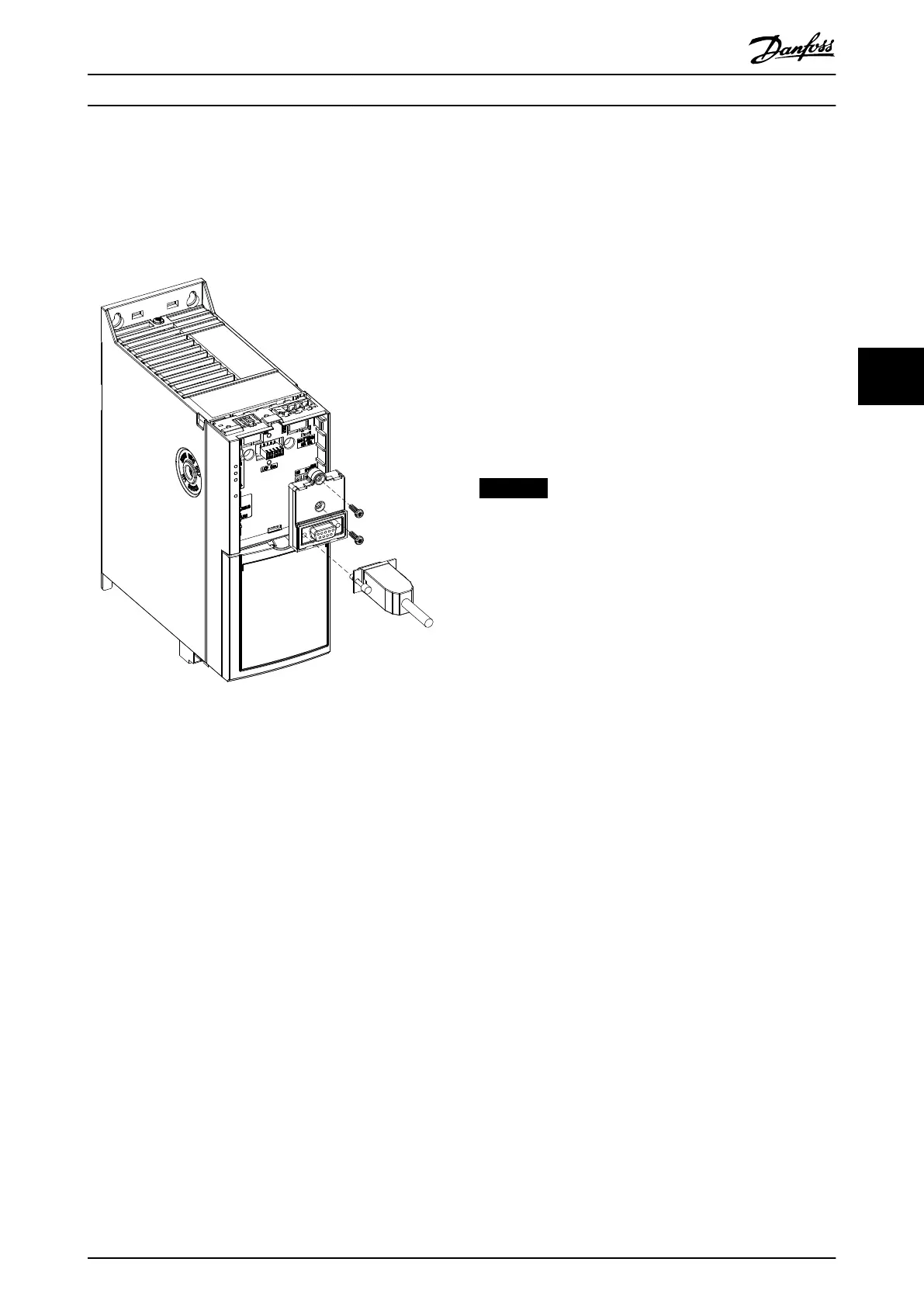

Illustration 5.11 GLCP Adapter and Connecting Cable
5.4.9 Backing Up/Downloading Parameters
with LCP
Establishing the correct programming for applications
often requires setting functions in several related
parameters. Parameter details are provided in
chapter 9.2 Parameter Menu Structure.
Programming data is stored internally in the frequency
converter.
•
For back-up, upload data into the LCP memory.
•
To download data to another frequency
converter, connect the LCP to that unit and
download the stored settings.
•
Restoring factory default settings does not
change data stored in the LCP memory.
Back-up/download process
1. Press [O] on GLCP or [O Reset] on NLCP to stop
the motor before uploading or downloading data.
2. Press [Main Menu] parameter 0-50 LCP Copy and
press [OK].
3. Select [1] All to LCP to upload data to the LCP, or
select [2] All from LCP to download data from the
LCP, or select [3] Size indep. from LCP to download
motor size independent parameters from LCP.
4. Press [OK]. A progress bar shows the uploading or
downloading progress.
5. Press [Hand On] or [Auto On] to return to normal
operation.
5.4.10 Restoring Default Settings with LCP
NOTICE
Risk of losing programming, motor data, localization, and
monitoring records by restoration of default settings. To
provide a back-up, upload data to the LCP before initiali-
zation.
Restoring the default parameter settings is done by initiali-
zation of the frequency converter. Initialization is carried
out through parameter 14-22 Operation Mode
(recommended) or manually. Initialization does not reset
the settings for parameter 1-06 Clockwise Direction and
parameter 0-03 Regional Settings.
•
Initialization using parameter 14-22 Operation
Mode does not reset frequency converter settings,
such as operating hours, serial communication
selections, fault log, alarm log, and other
monitoring functions.
•
Manual initialization erases all motor,
programming, localization, and monitoring data,
and restores factory default settings.
Recommended initialization procedure, via
parameter 14-22 Operation Mode
1. Select parameter 14-22 Operation Mode and press
[OK].
2. Select [2] Initialisation and press [OK].
3. Remove power to the unit and wait until the
display turns o.
4. Apply power to the unit.
Default parameter settings are restored during start-up.
This may take slightly longer than normal.
5. Alarm 80, Drive initialised to default value is shown.
6. Press [Reset] to return to operating mode.
Commissioning Quick Guide
MG06A702 Danfoss A/S © 03/2017 All rights reserved. 29
