Parameters
FC
+24 V
D IN
D IN
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
12
31
18
19
27
29
32
33
50
53
54
55
42
130BF821.10
D IN
Function Setting
Parameter 5-10 T
erminal 18
Digital Input
*[8] Start
Parameter 5-12 T
erminal 27
Digital Input
[19] Freeze
Reference
Parameter 5-13 T
erminal 29
Digital Input
[21] Speed Up
Parameter 5-14 T
erminal 32
Digital Input
[22] Speed
Down
*=Default value
Notes/comments:

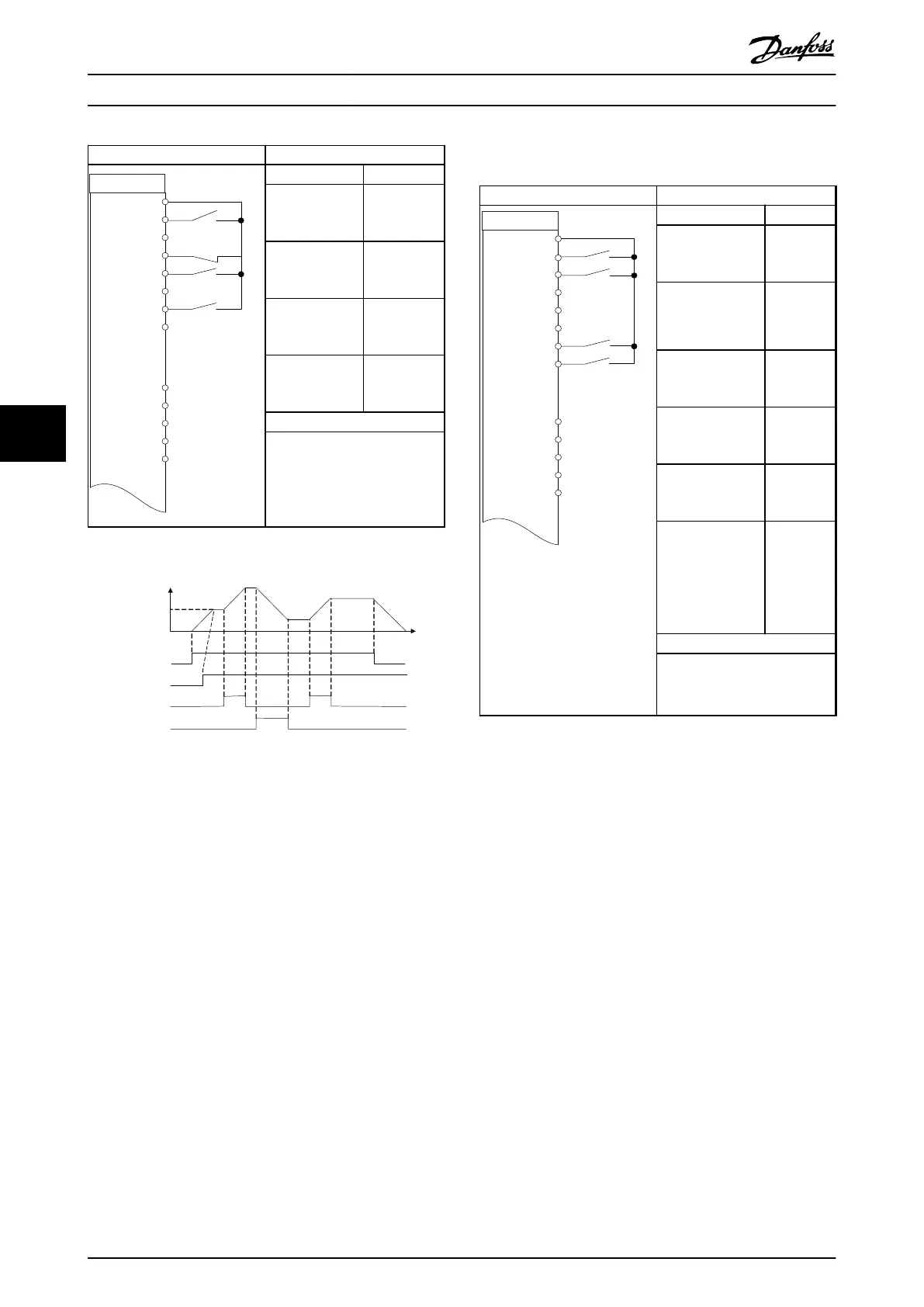

Table 6.12 Speed Up/Speed Down
130BB840.12
Speed
Reference
Start (18)
Freeze ref (27)
Speed up (29)
Speed down (32)
Illustration 6.1 Speed Up/Speed Down
6.2.4 Start/Stop
Parameters
130BF822.10
FC
+24 V
D IN
D IN
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
12
19
18
27
29
32
33
50
53
54
55
42
31
D IN
Function Setting
Parameter 5-10 Ter
minal 18 Digital
Input
*[8] Start
Parameter 5-11 Ter
minal 19 Digital
Input
*[10]
Reversing
Parameter 5-12 Ter
minal 27 Digital
Input
[0] No
operation
Parameter 5-14 Ter
minal 32 Digital
Input
[16] Preset
ref bit 0
Parameter 5-15 Ter
minal 33 Digital
Input
[17] Preset
ref bit 1
Parameter 3-10 Pre
set Reference
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
25%
50%
75%
100%
*=Default value
Notes/comments:
Table 6.13 Start/Stop with Reversing and 4 Preset Speeds
Applications
VLT
®
AutomationDrive FC 360
44 Danfoss A/S © 03/2017 All rights reserved. MG06A702
6
6
