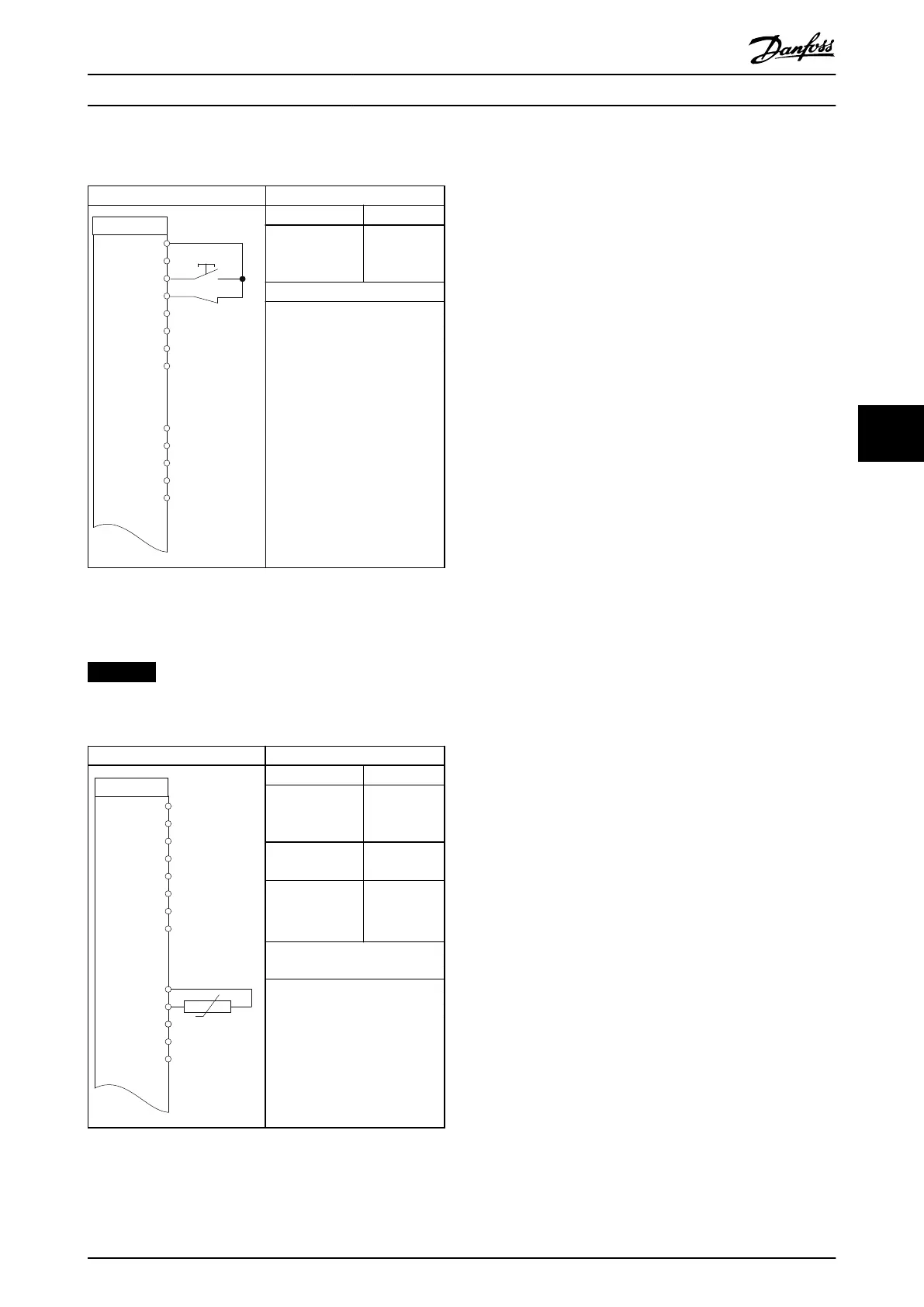

6.2.5 External Alarm Reset
Parameters
130BF823.10
FC
+24 V
D IN
D IN
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
12
31
18
19
27
29
32
33
50
53
54
55
42
D IN
Function Setting
Parameter 5-11 T
erminal 19
Digital Input
[1] Reset
*=Default value
Notes/comments:
Table 6.14 External Alarm Reset
6.2.6 Motor Thermistor
NOTICE
To meet PELV insulation requirements, use reinforced or
double insulation on the thermistors.
Parameters
130BF824.10
+24 V
D IN
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
12
31
18
19
27
29
32
33
50
53
54
55
42
FC
D IN
D IN
Function Setting
Parameter 1-90
Motor Thermal
Protection
[2] Thermistor
trip
Parameter 1-93 T
hermistor Source
[1] Analog
input 53
Parameter 6-19 T
erminal 53 mode
*[1] Voltage
* = Default value
Notes/comments:
If only a warning is needed, set
parameter 1-90 Motor Thermal
Protection to [1] Thermistor
warning.
Table 6.15 Motor Thermistor
Applications Quick Guide
MG06A702 Danfoss A/S © 03/2017 All rights reserved. 45
6
6
