E
F
B
C
D
0 0.0[ ]
51 2.0[ ]
226 8.9[ ]
266 10.5[ ]
441 17.4[ ]
0 0.0[ ]
28 1.1[ ]
167 6.6[ ]
195 7.7[ ]
A
0 0.0[ ]
176FA279.11

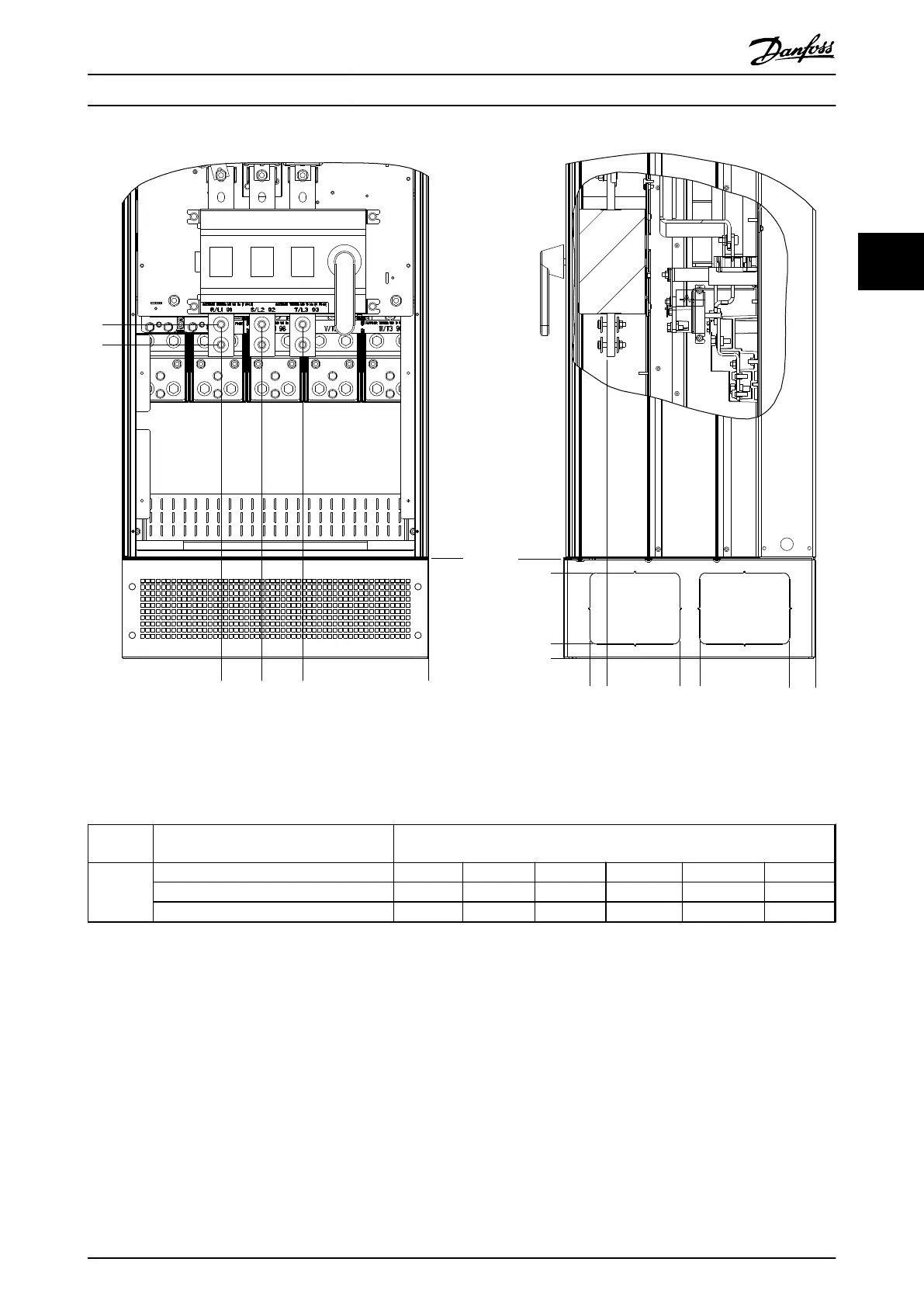

Illustration 3.48 IP21 (NEMA 1) and IP54 (NEMA 12) Enclosure Power Connection Position of Disconnect Switch
Enclosure
types
Unit type Dimensions [mm]/(inch)
E1
IP54/IP21 UL AND NEMA1/NEMA12 A B C D E F
450-630 KW (690 V) 396 (15.6) 267 (10.5) 332 (13.1) 397 (15.6) 528 (20.8) N/A
355-450 kW (400 V) 408 (16.1) 246 (9.7) 326 (12.8) 406 (16.0) 419 (16.5) 459 (18.1)
Table 3.5 Dimensions for Disconnect Terminal
Installation Operating Instructions
MG16J202 Danfoss A/S © Rev. 05/2014 All rights reserved. 45
3 3
