5 User Interface
5.1 Local Control Panel
The local control panel (LCP) is the combined display and
keypad on the front of the unit. The LCP is the user
interface to the frequency converter.
The LCP has several user functions.
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings and
cautions
•
Programming frequency converter functions
•
Manually reset the frequency converter after a
fault when auto-reset is inactive
An optional numeric LCP (NLCP) is also available. The NLCP
operates in a manner similar to the LCP. See the
Programming Guide, for details on use of the NLCP.
5.1.1
LCP Layout
The LCP is divided into 4 functional groups (see
Illustration 5.1).
A. Display area
B. Display menu keys
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and reset
130BD512.10
Auto
on
Reset
Hand
on
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(1)
0.00 kW
O Remote Stop
0.0Hz
On
Alarm
Warn.
A
0.00 A
0.0 %
B
C
D
2605 kWh
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19 20 21

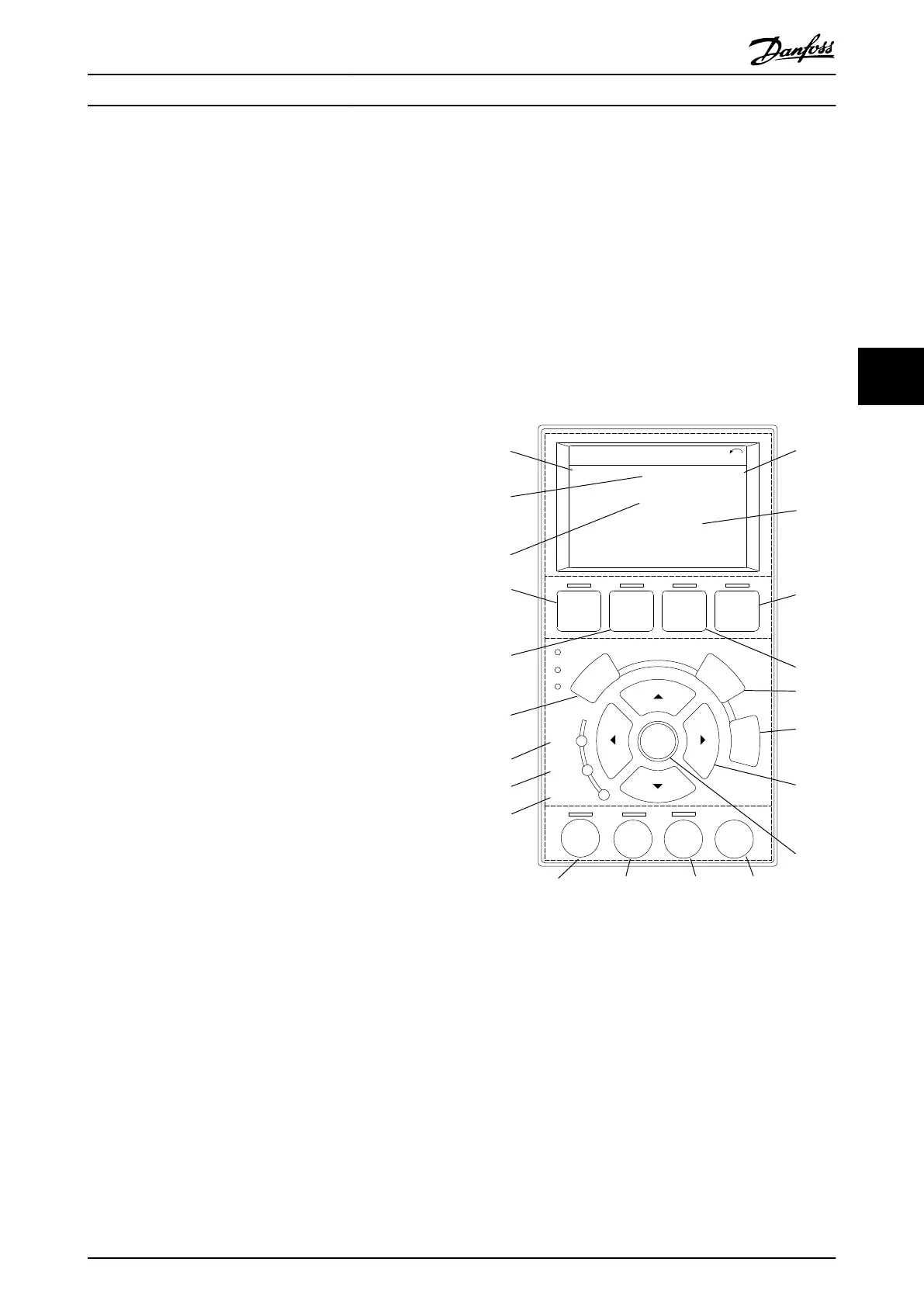

Illustration 5.1 Local Control Panel (LCP)
A. Display Area
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V DC supply.
The information displayed on the LCP can be customised
for user application. Select options in the Quick Menu
Q3-13 Display Settings.
User Interface
Operating Instructions
MG16J202 Danfoss A/S © Rev. 05/2014 All rights reserved. 63
5 5
