E
0
0.0[ ]
F
B
0 0.0[ ]
C
D
A
0 0.0[ ]
176FA281.11

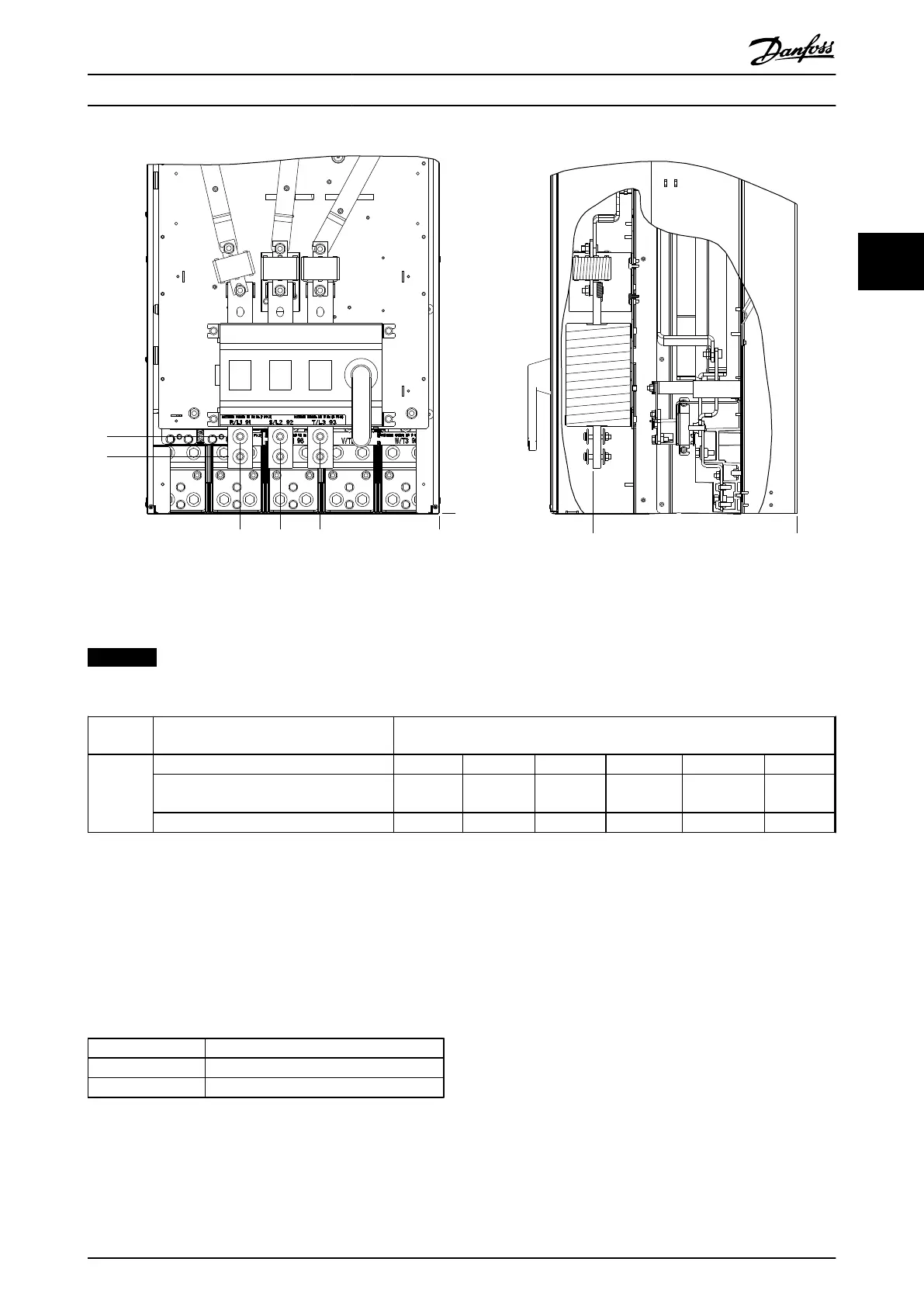

Illustration 3.51 IP00 Enclosure Power Connections Positions of Disconnect Switch
NOTICE
Power connections can be made to positions A or B
Enclosure
type
Unit type Dimensions [mm]/(inch)
E2
IPOO/CHASSIS A B C D E F
250/315 kW (400 V) AND 355/450-500/630
KW (690 V)
396 (15.6) 268 (10.6) 333 (13.1) 398 (15.7) 221 (8.7) N/A
315/355-400/450 kW (400 V) 408 (16.1) 239 (9.4) 319 (12.5) 399 (15.7) 113 (4.4) 153 (6.0)
Table 3.6 Dimensions for Disconnect Terminal
3.4.5
Motor Cable
Connect the motor to terminals U/T1/96, V/T2/97, W/T3/98.
Ground to terminal 99. All types of 3-phase asynchronous
standard motors can be used with a frequency converter
unit. The factory setting is for clockwise rotation with the
frequency converter output connected as follows:
Terminal no. Function
96, 97, 98, Mains U/T1, V/T2, W/T3
99 Ground
Table 3.7 Terminals for Motor Cable Connection
Installation Operating Instructions
MG16J202 Danfoss A/S © Rev. 05/2014 All rights reserved. 47
3 3
