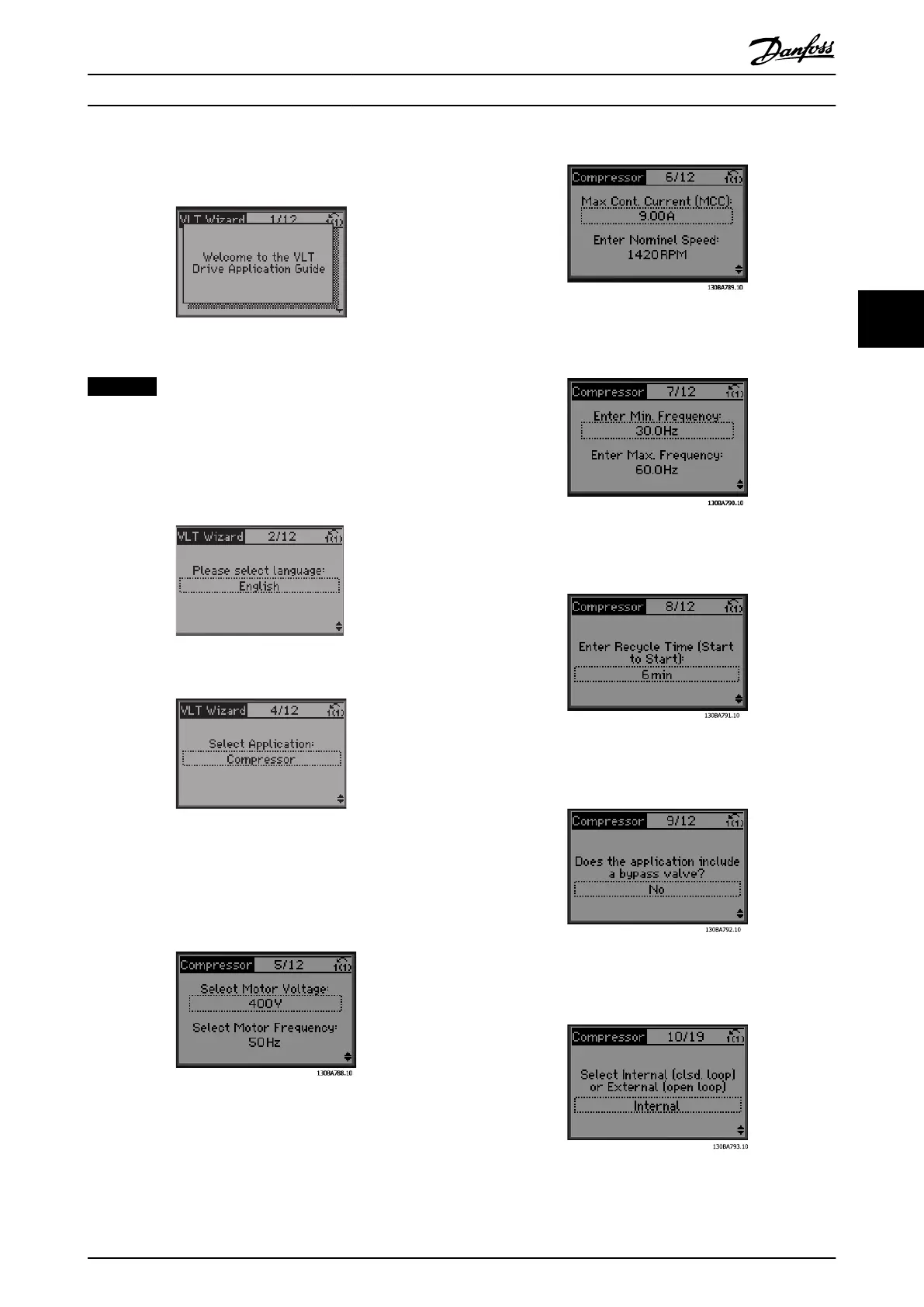

If [OK] is pressed, the application guide starts with the
following screen:
130BC952.10
Illustration 4.2 Start-up of Application Guide
NOTICE
Numbering of steps in wizard (e.g. 1/12) can change
depending on choices in the workflow.
This screen automatically changes to the first input screen
of the application guide:
130BC953.10
Illustration 4.3 Language Selection
130BC954.10
Illustration 4.4 Application Selection
Compressor pack set-up
As an example, see screens below for a compressor pack
set-up:
Illustration 4.5 Voltage and Frequency Set-up
Illustration 4.6 Current and Nominal Speed Set-up
Illustration 4.7 Min. and Max. Frequency Set-up
Illustration 4.8 Min. Time between 2 Starts
Illustration 4.9 Select with/without Bypass Valve
Illustration 4.10 Select Open Loop or Closed Loop
