Danfoss VLT FC 302 User Manual

130BA849.13
.0 [.0] 54.4[2.1]
169.4 [6.7]
284.4 [11.2]
407.3 [16.0]
522.3 [20.6]
637.3 [25.1]
287.4 [11.3]
253.1 [10.0]
.0 [.0]
.0 [.0]
339.4 [13.4]
287.4 [11.3]
.0 [.0]
339.4 [13.4]
308.3 [12.1]
465.6 [18.3]
465.6 [18.3]
198.1[7.8]
234.1 [9.2]
282.1 [11.1] 318.1 [12.5]
551.0 [21.7] 587.0 [23.1] 635.0 [25.0]
671.0 [26.4]
44.40 [1.75]
244.40 [9.62]
204.1 [8.0]
497.1 [19.6] 572.1 [22.5]
180.3 [7.1]
129.1 [5.1]
4
6
4
1
2
3
5
1 Front View 4 Brake Terminals
2 Left Side View 5 Earth/ground bar
3 Right Side View

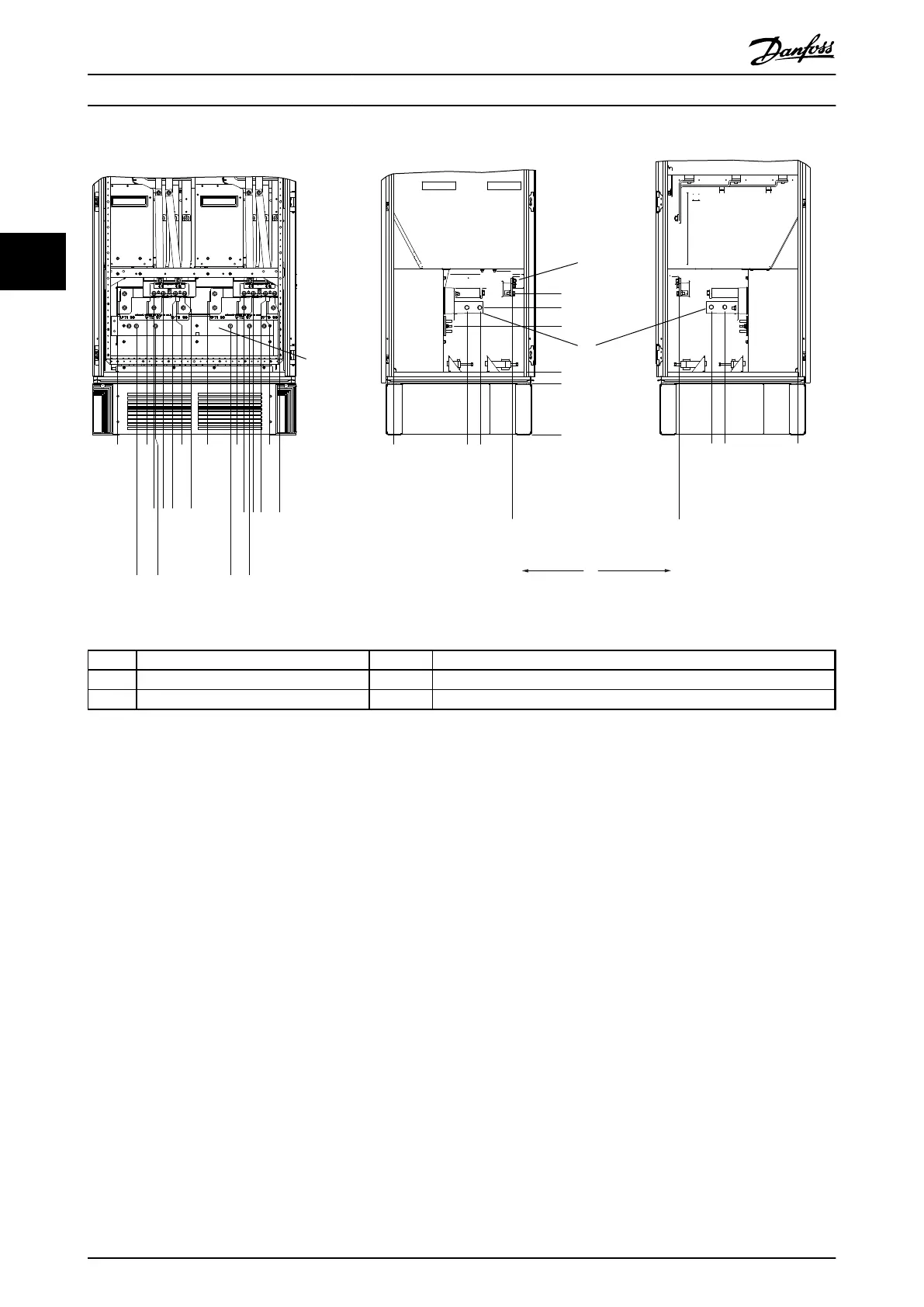

Illustration 3.13 Frame Size F18 Inverter Cabinet
The gland plate is 42 mm below the 0 level. Shown are the left side view, front, and right.
Installation Operating Instructions
22 Danfoss A/S © Rev. 2014-07-29 All rights reserved. MG37A202
33

Danfoss VLT FC 302 Specifications

General

Brake Function	Built-in brake chopper in all units up to 22 kW
Output Voltage Range	0-100% of input voltage
Power Range	0.37 kW
Control Modes	VVCplus, Flux, U/f
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature, overload
Communication Options	Modbus RTU, BACnet, Ethernet/IP, Profinet, Profibus, CANopen, DeviceNet
Ambient Temperature Range	-10°C to +50°C (derating above +40°C)
Enclosure Rating	IP20, IP21, IP55
Cooling Method	Air-cooled
Input Voltage	200-240V, 380-480V, 525-600V
