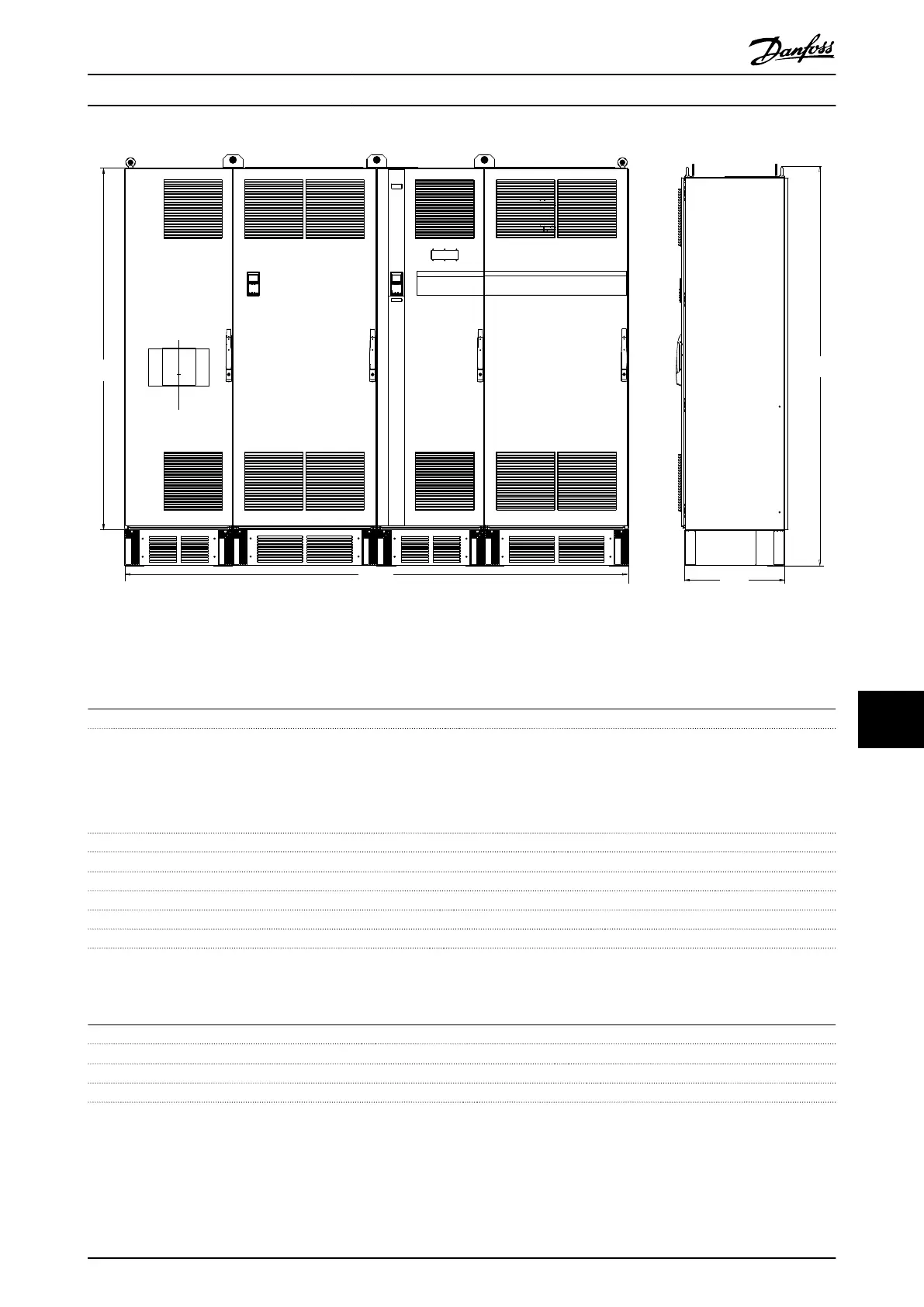

Illustration 11.5 Frame Size F18, Front and Side View
11.3
General Technical Data - Frequency Converter
Mains supply (L1, L2, L3)
Supply voltage 380–480 V +5%
Mains voltage low/mains drop-out:
During low mains voltage or mains drop-out, the frequency converter continues until the intermediate circuit voltage drops
below the minimum stop level, corresponding to 15% below the lowest rated supply voltage. Power up and full torque cannot be
expected at mains voltage lower than 10% below the lowest rated supply voltage.
Supply frequency 50/60 Hz ±5%
Max. imbalance temporary between mains phases 3.0% of rated supply voltage
True power factor (λ) > 0.98 nominal at rated load
Displacement power factor (cosφ) near unity (> 0.98)
THiD < 5%
Switching on input supply L1, L2, L3 (power-ups) maximum once/2 min.
Environment according to EN60664-1 overvoltage category III/pollution degree 2
The unit is suitable for use on a circuit capable of delivering not more than 100.000 RMS symmetrical Amperes, 480/690 V
maximum.
Motor output (U, V, W)
Output voltage 0-100% of supply voltage
Output frequency 0-590 Hz
1)
Switching on output Unlimited
Ramp times 0.01-3600 s
1) Voltage and power dependent
Specifications
Operating Instructions
MG37A202 Danfoss A/S © Rev. 2014-07-29 All rights reserved. 145
11 11

Danfoss VLT FC 302 Specifications

General

Brake Function	Built-in brake chopper in all units up to 22 kW
Output Voltage Range	0-100% of input voltage
Power Range	0.37 kW
Control Modes	VVCplus, Flux, U/f
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature, overload
Communication Options	Modbus RTU, BACnet, Ethernet/IP, Profinet, Profibus, CANopen, DeviceNet
Ambient Temperature Range	-10°C to +50°C (derating above +40°C)
Enclosure Rating	IP20, IP21, IP55
Cooling Method	Air-cooled
Input Voltage	200-240V, 380-480V, 525-600V
