Danfoss VLT FC Series Service Guide

e30bg855.10
1
2
3
4
5
10
7
8
9
11
12
6
13
14

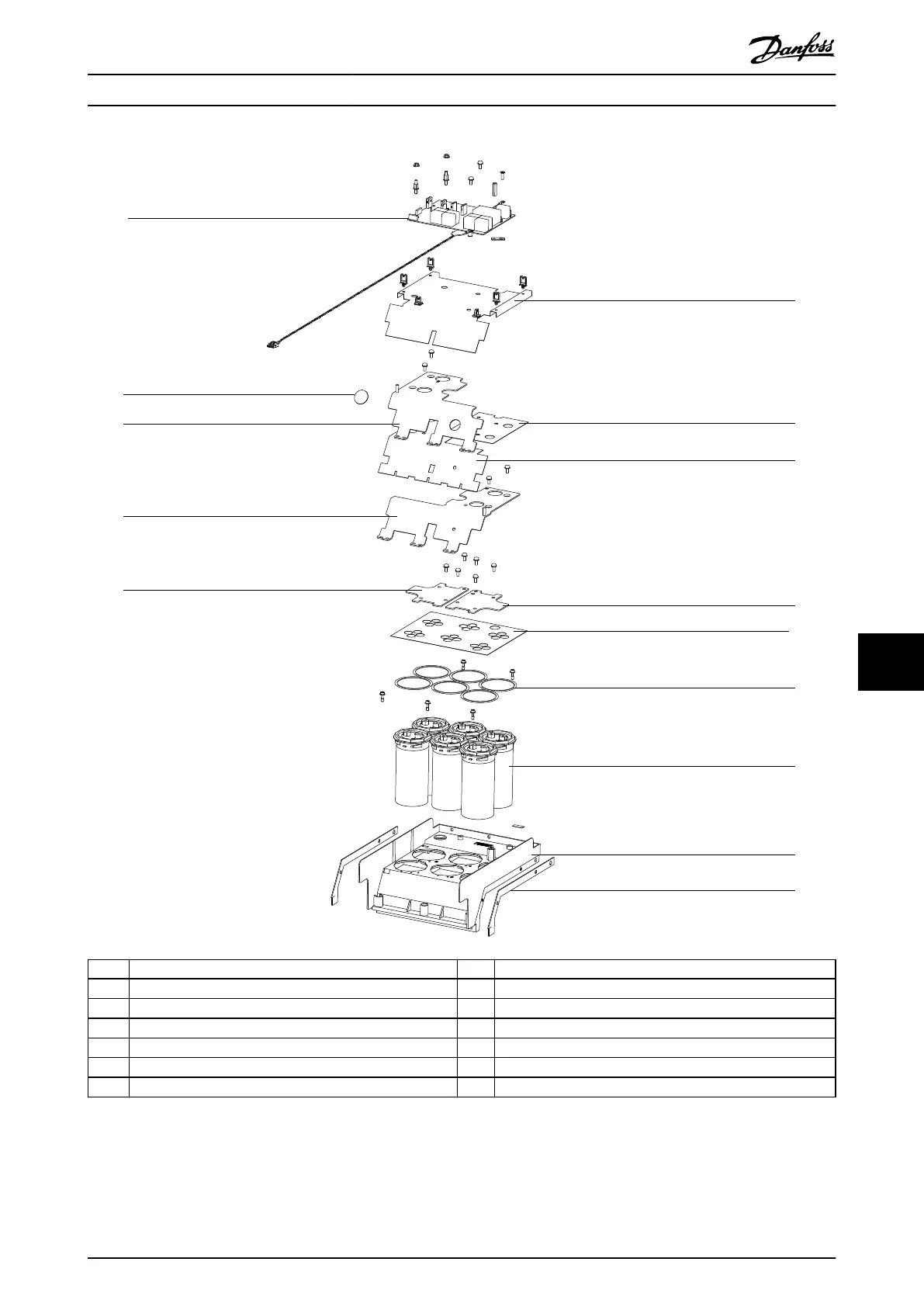

1 Balance/high frequency card 8 Insulator sheet 3
2 Plastic alignment cap 9 Midplate 2
3 DC(-) plate 10 Capacitor locking panel
4 DC(+) plate 11 O-ring gasket
5 Midplate 1 12 Twistlock DC capacitor
6 Insulator sheet 1 13 Capacitor bank housing
7 Insulator sheet 2 14 Capacitor bank gasket
Illustration 10.19 Twistlock DC Capacitors, 690 V AC Unit
D1h/D3h/D5h/D6h/J8 Drive Di... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 167
10 10

Danfoss VLT FC Series Specifications

General

Category	DC Drives
Series	VLT FC Series
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Overtemperature, Motor overload
Communication Interfaces	CANopen, PROFIBUS, Ethernet
Cooling Method	liquid-cooled
Enclosure Rating	IP20, IP21, IP55
Ambient Temperature	-10°C to +40°C (14°F to 104°F) without derating
