Danfoss VLT FC Series Service Guide

1
2
3
4
5
6
e30bg394.10
1 Top fan housing 4 Top fan cable and connector
2 Screw (T25) 5 Retaining clip
3 Top fan 6 Cable access hole

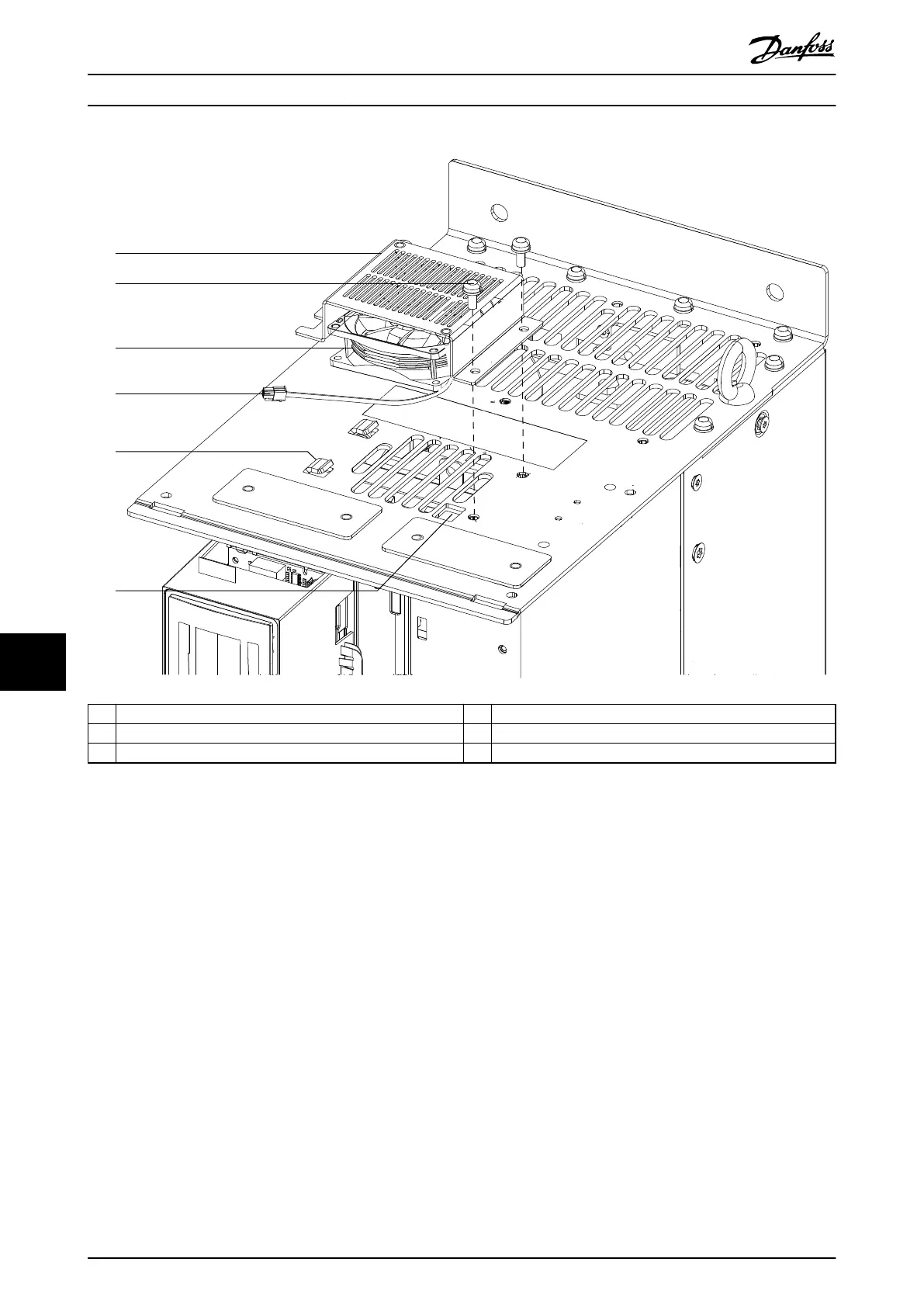

Illustration 10.27 Top Fan with Housing
D1h/D3h/D5h/D6h/J8 Drive Di...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
176 Danfoss A/S © 02/2019 All rights reserved. MG94A502
