Danfoss VLT FC Series Service Guide

1
2
3
5
4
6
7
8
e30bg565.10

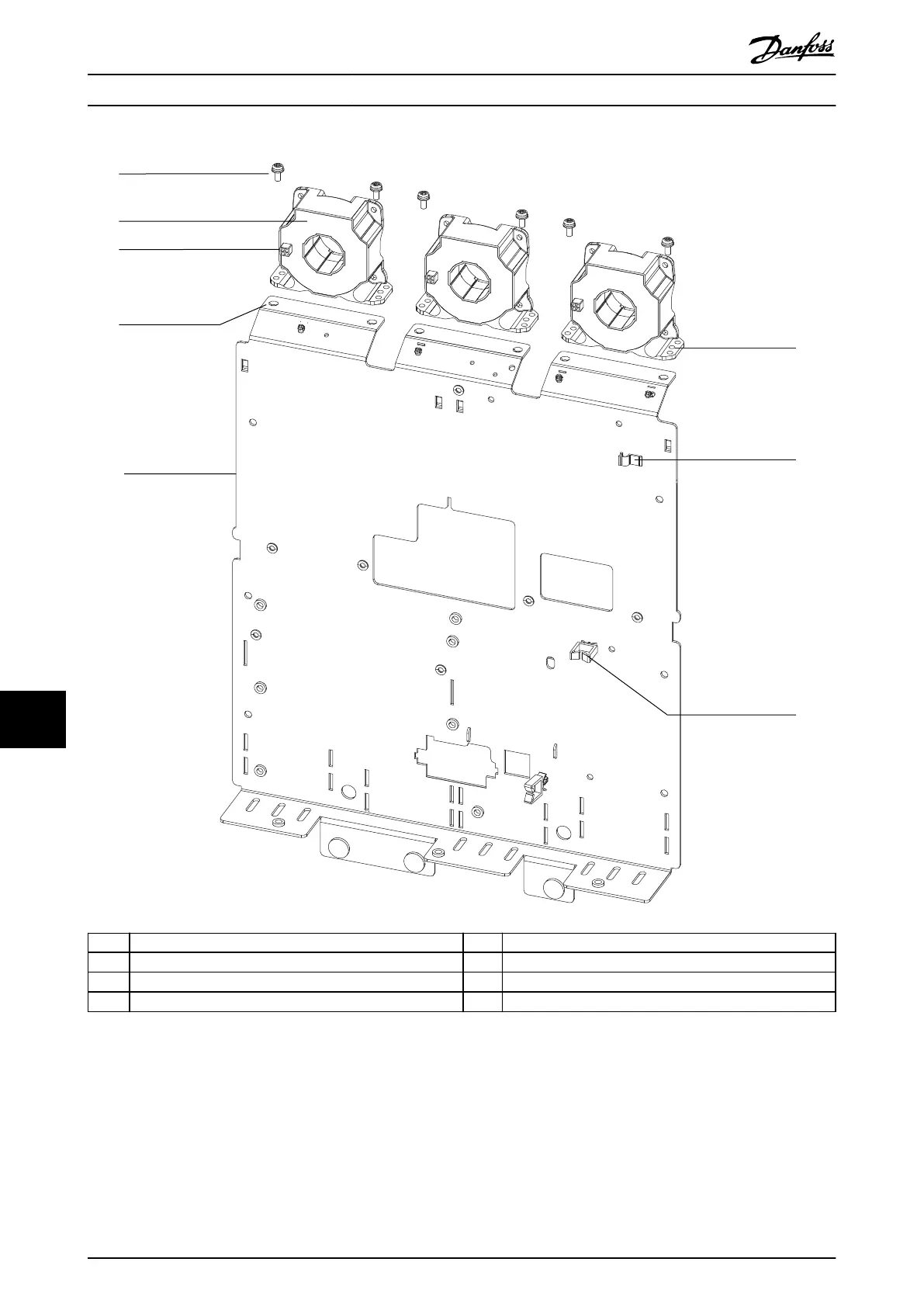

1 Thread-forming screw (T20) 5 Power terminal mounting plate
2 Current sensor 6 Mounting hole
3 Current sensor cable connector 7 Wire guide
4 Mounting hole 8 Cable clip
Illustration 11.6 D2h Power Terminal Mounting Plate and Current Sensors
D2h/D4h/D7h/D8h/J9 Unit Dis...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
202 Danfoss A/S © 02/2019 All rights reserved. MG94A502
1111

Danfoss VLT FC Series Specifications

General

Category	DC Drives
Series	VLT FC Series
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Overtemperature, Motor overload
Communication Interfaces	CANopen, PROFIBUS, Ethernet
Cooling Method	liquid-cooled
Enclosure Rating	IP20, IP21, IP55
Ambient Temperature	-10°C to +40°C (14°F to 104°F) without derating
