Page #231 background image
e30bg901.10

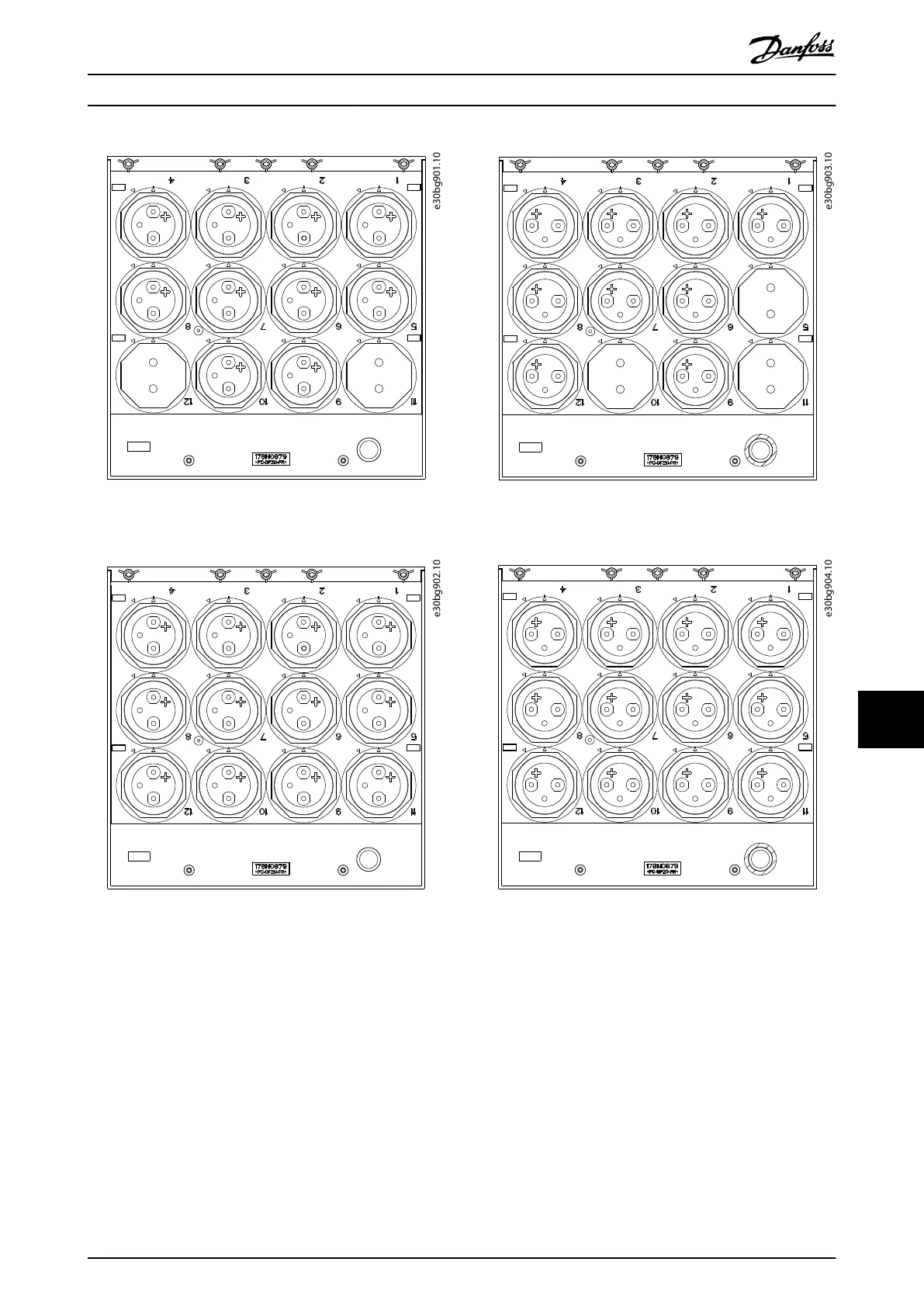

Illustration 11.26 Twistlock 10-Capacitor Layout
e30bg902.10
Illustration 11.27 Twistlock 12-Capacitor Layout
e30bg903.10
Illustration 11.28 Twistlock 9-Capacitor Layout
e30bg904.10
Illustration 11.29 Twistlock 12-Capacitor Layout
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 229
