Danfoss VLT FC Series Service Guide

1
2
4
5
6
7
8
9
3
130BF883.10

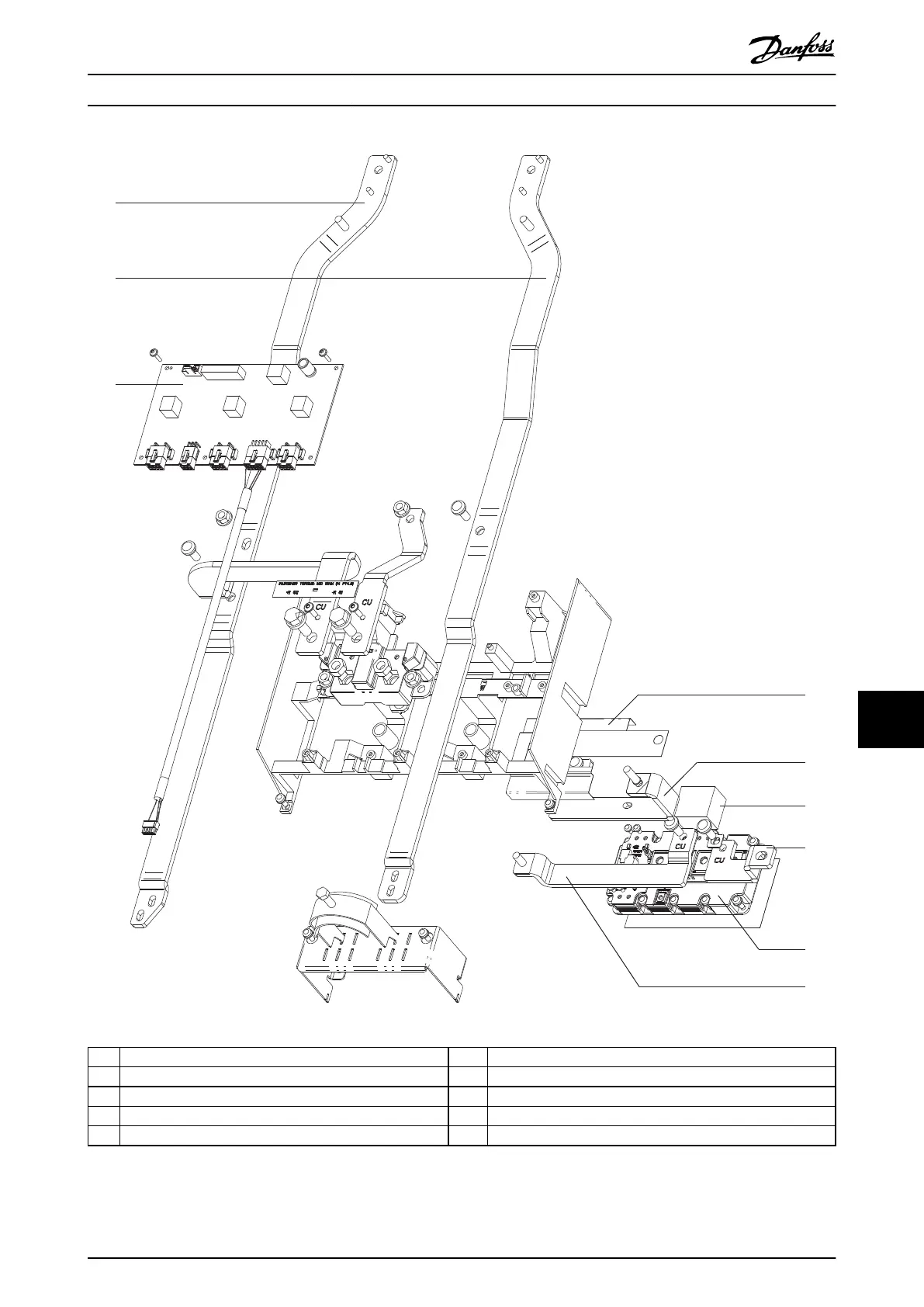

1 DC(+) bus rail 6 Snubber capacitor
2 DC(-) bus rail 7 DC(-) to brake IGBT busbar
3 Gate drive card 8 Brake IGBT module
4 Insulator shield 9 DC(+) to brake IGBT busbar
5 Brake IGBT output to R(-) terminal busbar – –
Illustration 11.30 Brake IGBT Module
D2h/D4h/D7h/D8h/J9 Unit Dis... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 231
11 11

Danfoss VLT FC Series Specifications

General

Category	DC Drives
Series	VLT FC Series
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Overtemperature, Motor overload
Communication Interfaces	CANopen, PROFIBUS, Ethernet
Cooling Method	liquid-cooled
Enclosure Rating	IP20, IP21, IP55
Ambient Temperature	-10°C to +40°C (14°F to 104°F) without derating
