Danfoss VLT FC Series Service Guide

1
2
3
4
5
6

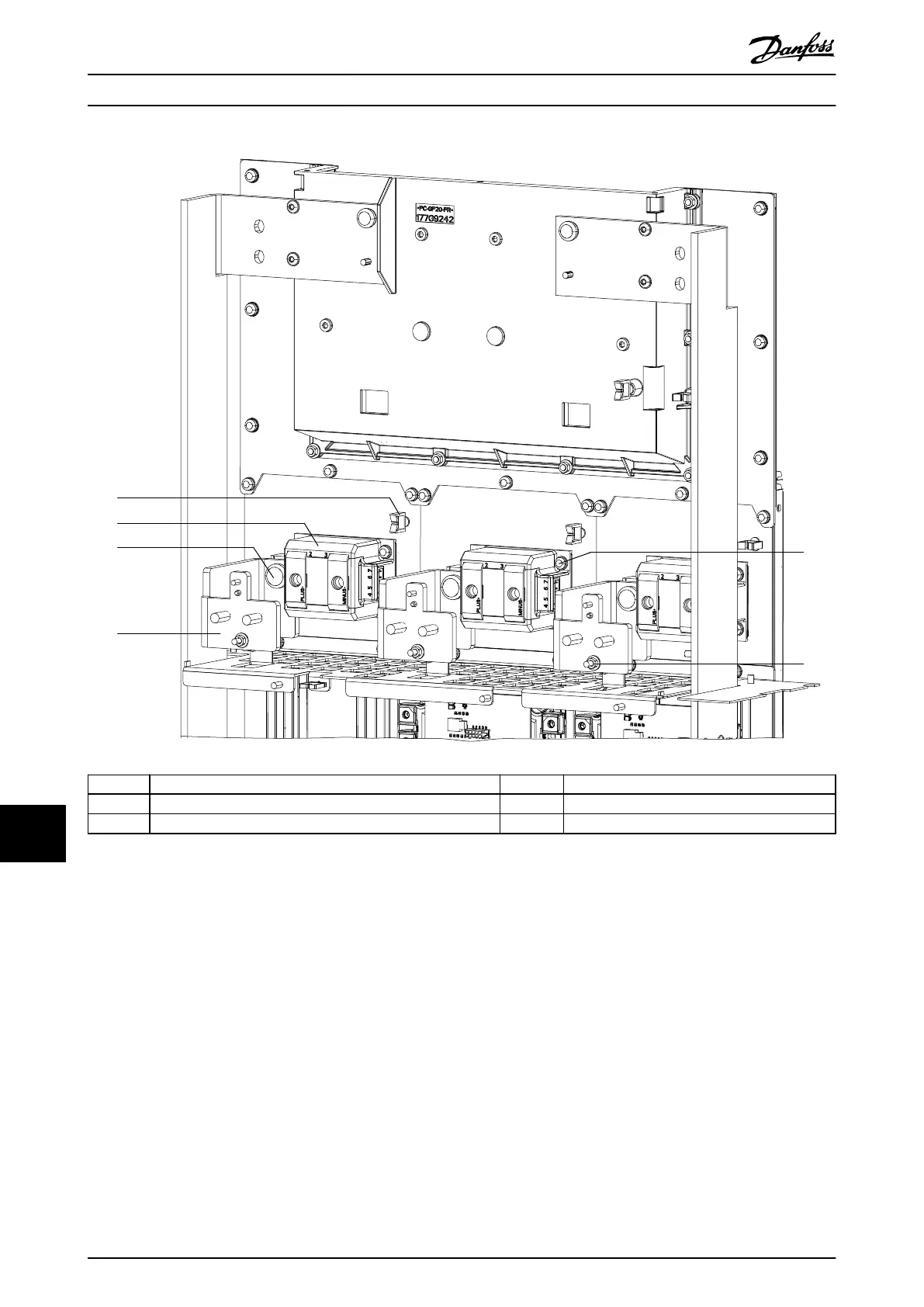

130BF844.10
1 Cable retaining clip 4 SCR input busbar
2 SCR/diode module 5 Screw (T25)
3 Screw (T40) 6 Nut (8 mm)
Illustration 13.7 SCR/Diode Modules
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
274 Danfoss A/S © 02/2019 All rights reserved. MG94A502
1313

Danfoss VLT FC Series Specifications

General

Category	DC Drives
Series	VLT FC Series
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Overtemperature, Motor overload
Communication Interfaces	CANopen, PROFIBUS, Ethernet
Cooling Method	liquid-cooled
Enclosure Rating	IP20, IP21, IP55
Ambient Temperature	-10°C to +40°C (14°F to 104°F) without derating
