Danfoss VLT FC Series Service Guide

1
2
3
5
6
7
8
4
130BF836.10

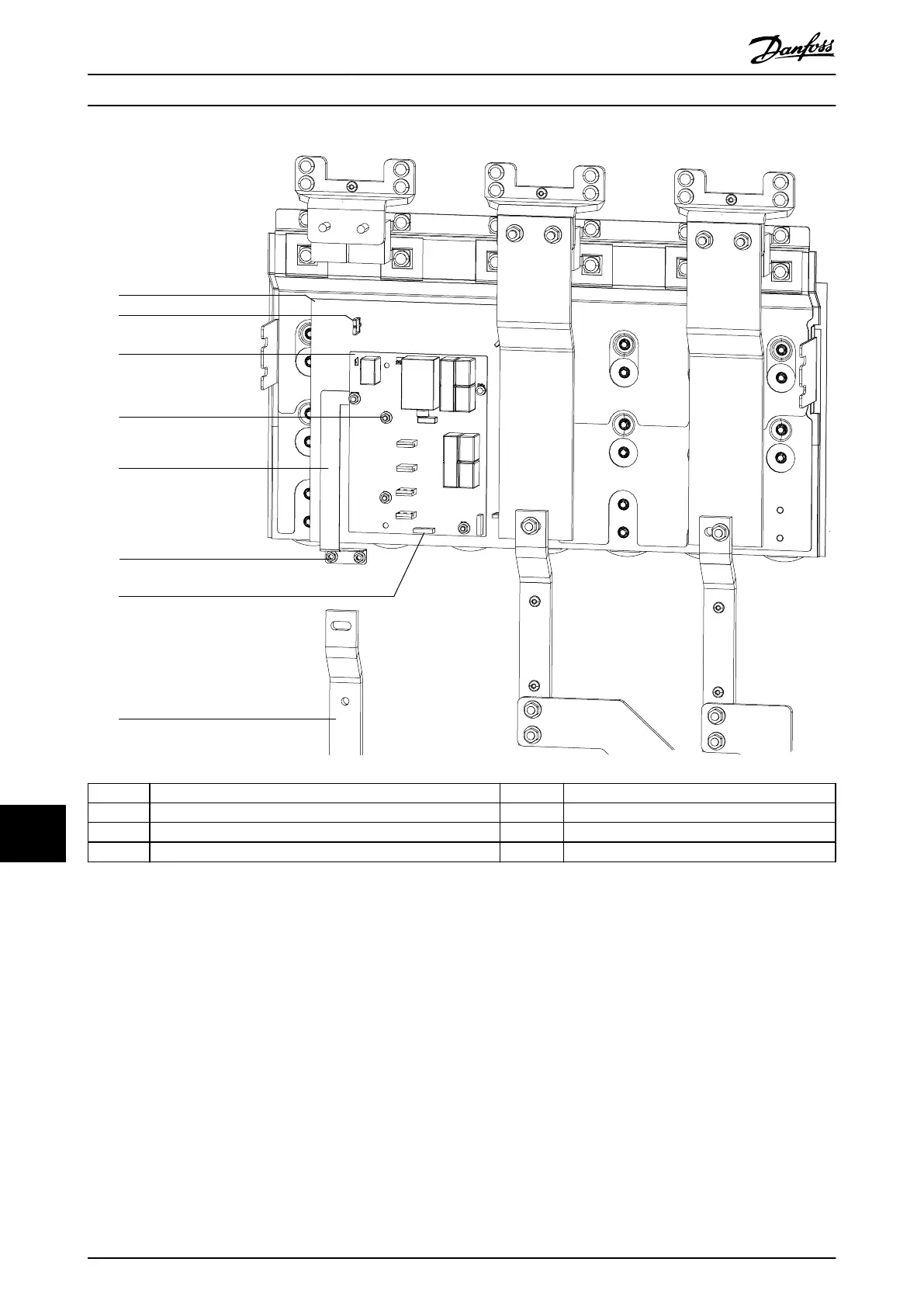

1 Insulator sheet 5 Balance/high frequency card ground bar
2 Cable retaining clip 6 Ground bar nut (8 mm)
3 Balance/high frequency card 7 MK100 cable connector (only in 690 V drives)
4 Nut (8 mm) 8 Left current sensor busbar
Illustration 13.16 Balance/High Frequency Card in E2h/E4h, 580–690 V AC (Other Drives Similar)
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
292 Danfoss A/S © 02/2019 All rights reserved. MG94A502
