Danfoss VLT FC Series

130BF875.10
1
2
4
3
1 Screw (T25) 3 Screw (T25)
2 IGBT mounting frame 4 IGBT module

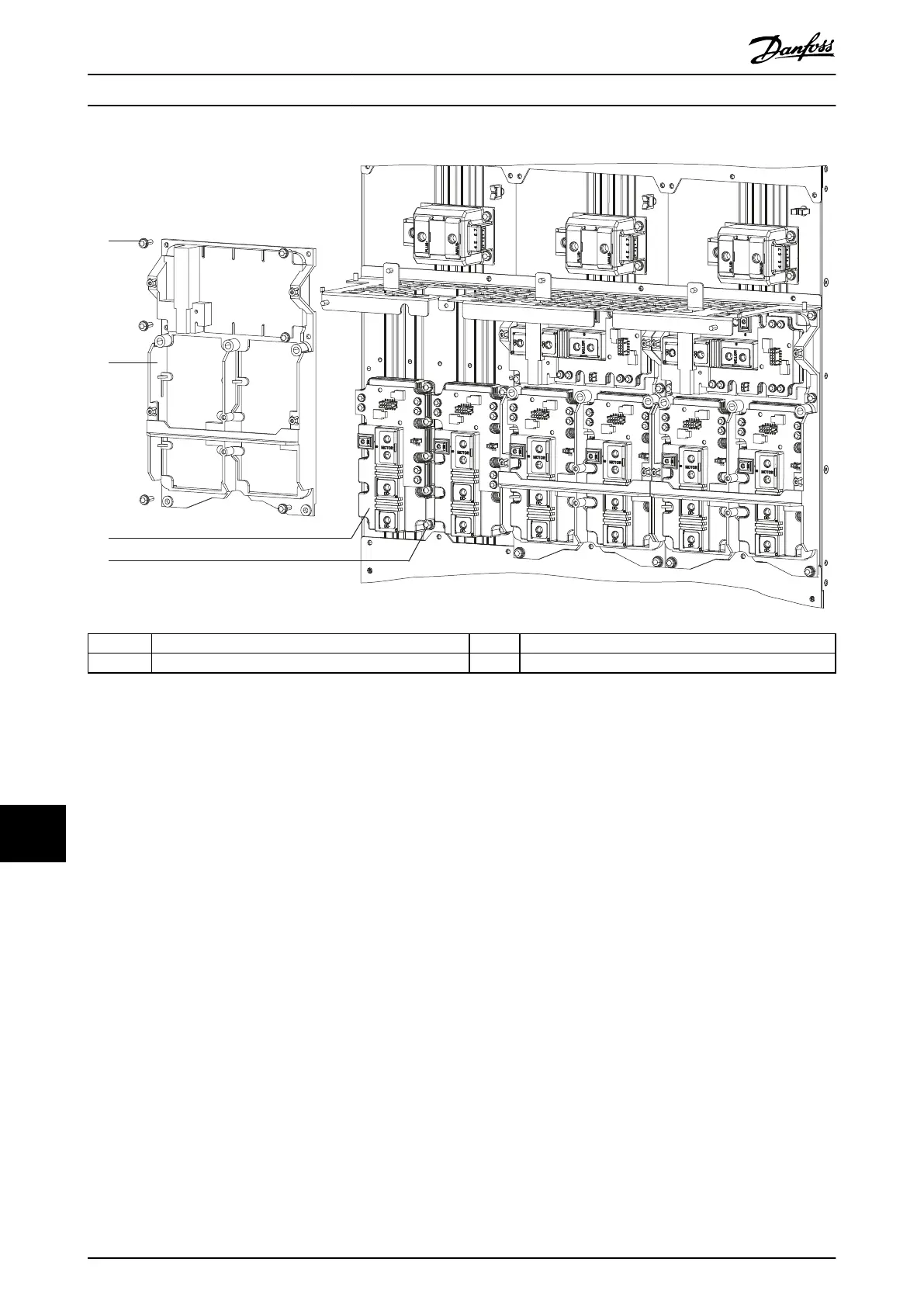

Illustration 13.28 IGBT Modules in E2h/E4h Drives (E1h/E3h is Similar)
E1h–E4h Drive Disassembly a...
