Danfoss VLT FC Series Service Guide

130BX138.11
Frequency
converter
AC Line
Motor cable
Motor
Stray capacitance Stray capacitance
Ground Potential 1
Potential 2 Potential 3

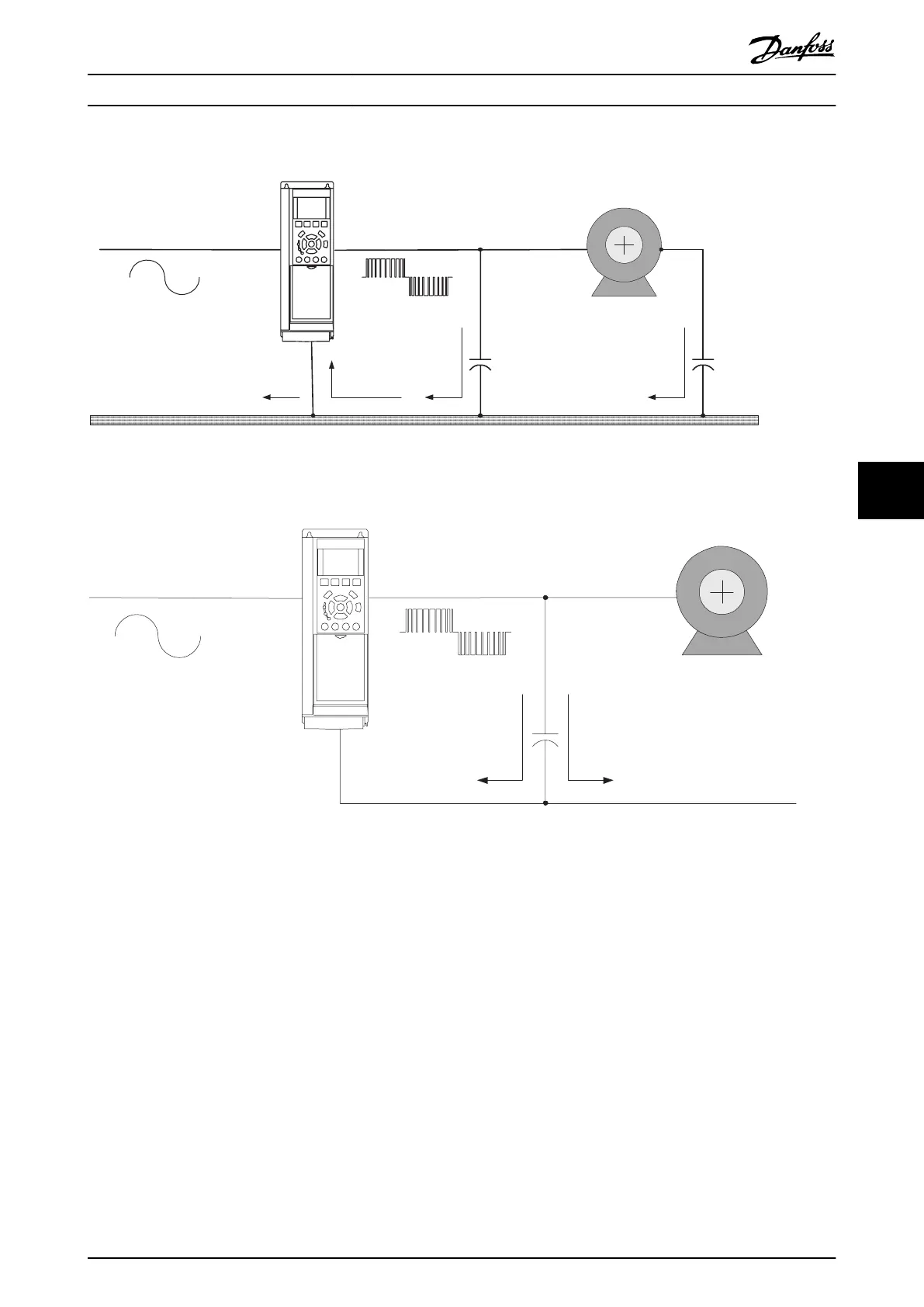

Illustration 7.2 Ground Currents
AC line
Frequency
converter
Motor cable
Motor
Stray capacitance
130BX139.12
Signal wiring to BMS
Illustration 7.3 Signal Conductor Currents
Drive and Motor Application... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 85
7 7

Danfoss VLT FC Series Specifications

General

Category	DC Drives
Series	VLT FC Series
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Overtemperature, Motor overload
Communication Interfaces	CANopen, PROFIBUS, Ethernet
Cooling Method	liquid-cooled
Enclosure Rating	IP20, IP21, IP55
Ambient Temperature	-10°C to +40°C (14°F to 104°F) without derating
