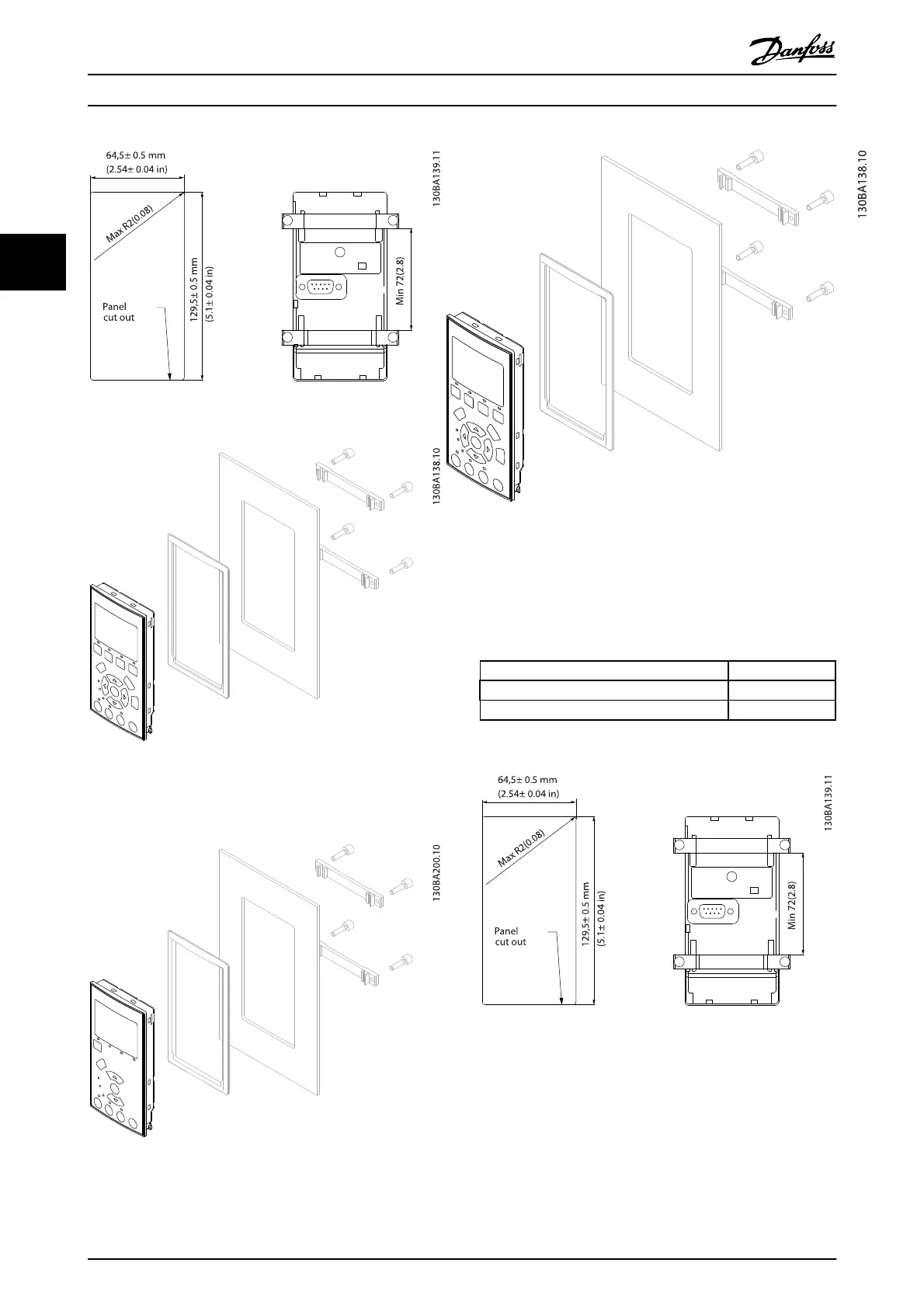

Illustration 3.16
Illustration 3.17 LCP Kit with Graphical LCP, Fasteners, 3 m Cable
and Gasket
Ordering No. 130B1113
Illustration 3.18 LCP Kit with Numerical LCP, Fastenes and Gasket
Ordering no. 130B1114
Illustration 3.19 Not for US
The LCP can be moved to the front of a cabinet by using
the remote built-in kit. The enclosure is the IP66. The
fastening screws must be tightened with a torque of max.
1Nm.
Enclosure IP66 front
Max. cable length between and unit 3 m
Communication std RS-485
Table 3.11 Technical Data
Illustration 3.20
Drive Selection
VLT
®
Refrigeration Drive Design Guide
46 MG16G102 - VLT
®
is a registered Danfoss trademark
3
3
