Dimensions
Enclosure type
Height [mm]
A
Width [mm]
B
Depth [mm]
C*
A2 372 90 205
A3 372 130 205
B3 475 165 249
B4 670 255 246
C3 755 329 337
C4 950 391 337
* If option A/B is used, the depth will increase (see 5.1.2
Mechanical Dimensions for details)
Table 3.13

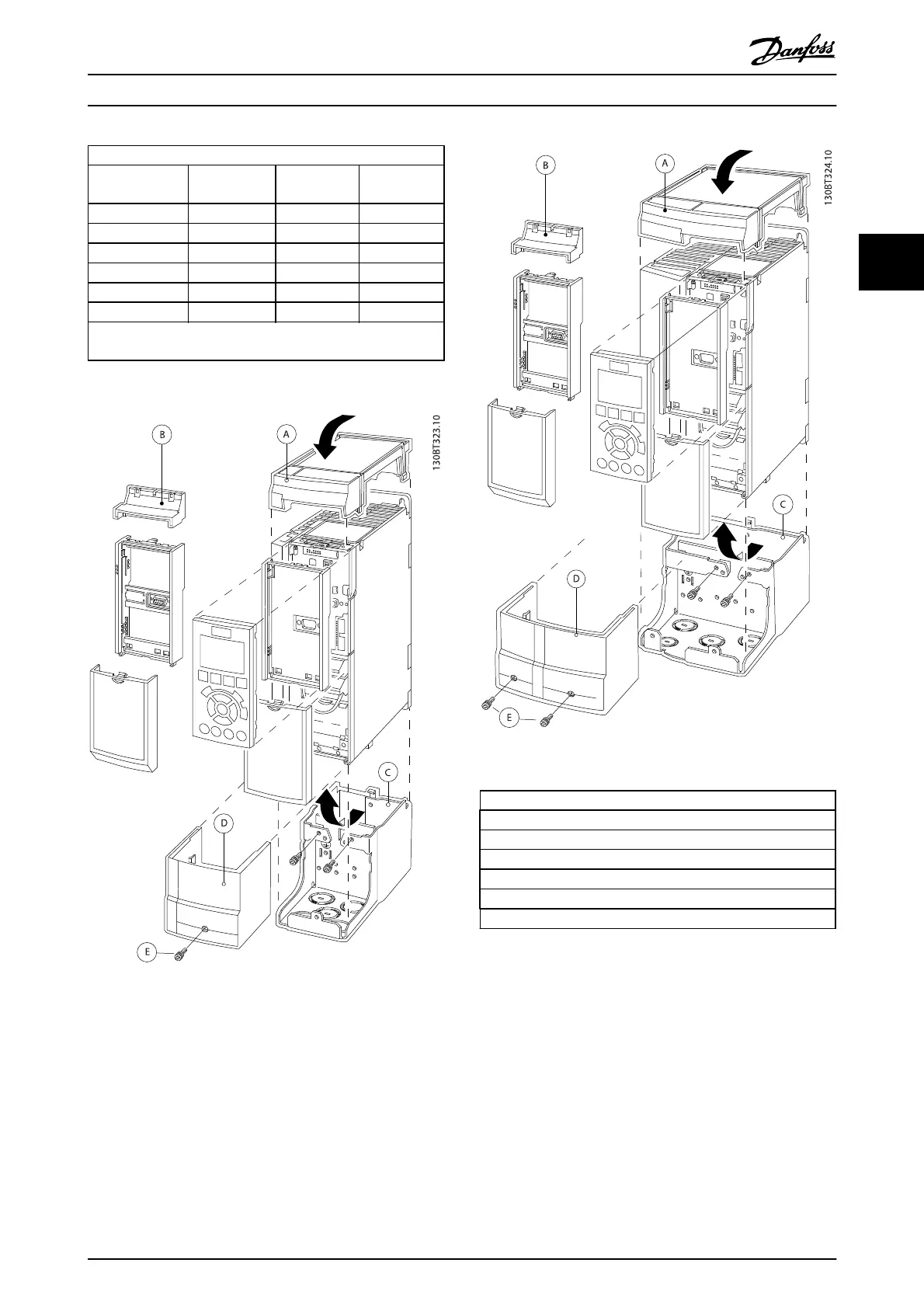

Illustration 3.26 B3 Enclosure
Illustration 3.27 B4 - C3 - C4 Enclosure
ATop cover
BBrim
CBase part
DBase cover
EScrew(s)
FFan cover
GTop clip
Table 3.14
NOTE
Side-by-side installation is not possible when using the IP
21/IP 4X/TYPE 1 Enclosure Kit
