D1 D2 D3 D4
IP21/54 IP21/54 IP00 IP00
Lifting eye and mounting holes:

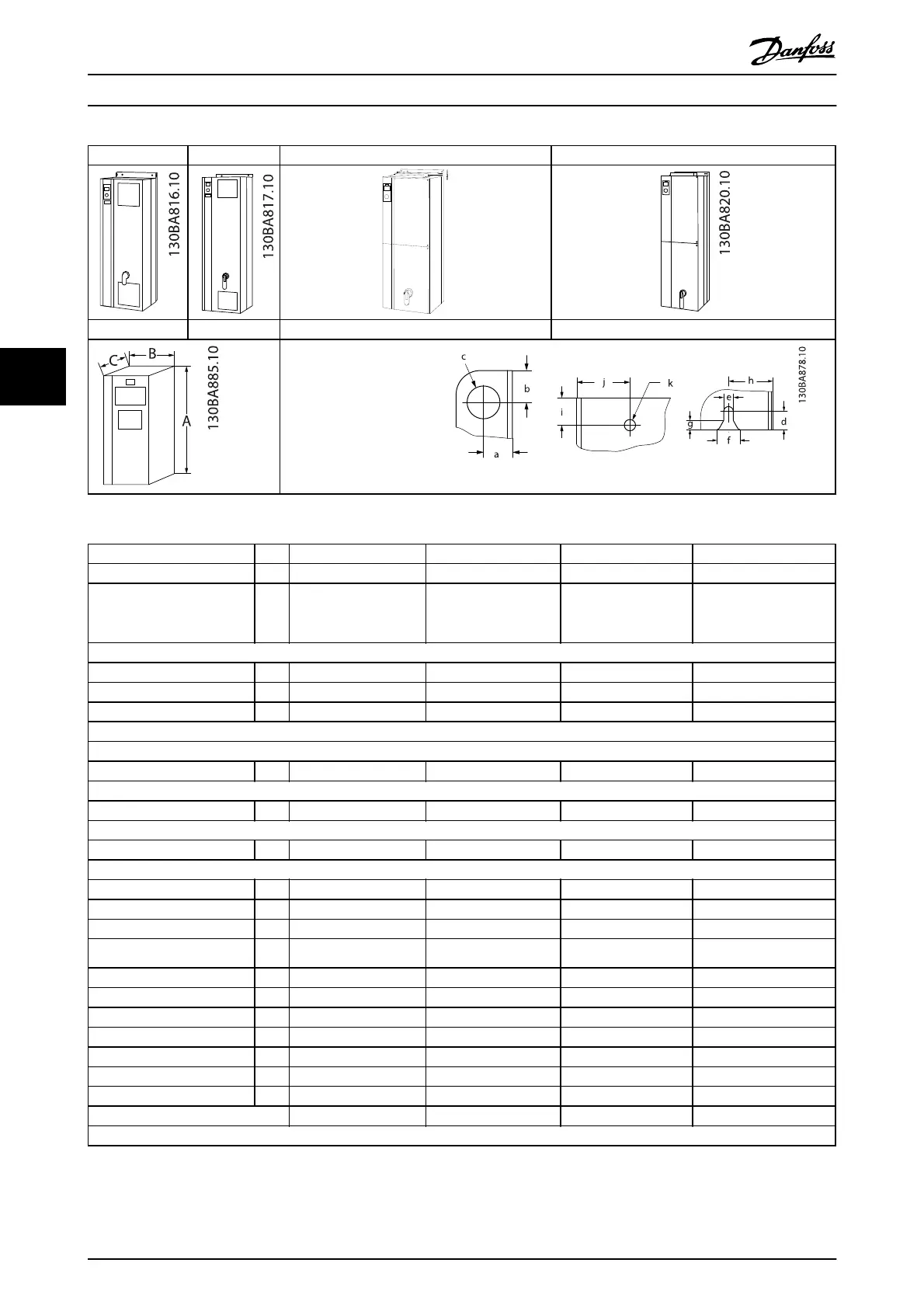

Table 5.3
Enclosure size [kW] D1 D2 D3 D4
380-480 V AC 110-132 160-250 110-132 160-250
IP
NEMA
21/54
Type 1/12
21/54
Type 1/12
00
Chassis
00
Chassis
Shipping dimensions [mm]
Width 1730 1730 1220 1490
Height 650 650 650 650
Depth 570 570 570 570
FCDrive dimensions: (mm)
Height
Back plate A 1209 1589 1046 1327
Width
Back plate B 420 420 408 408
Depth
C 380 380 375 375
Dimensions brackets [mm/inch]
Centre hole to edge a 22/0.9 22/0.9 22/0.9 22/0.9
Centre hole to edge b 25/1.0 25/1.0 25/1.0 25/1.0
Hole diameter c 25/1.0 25/1.0 25/1.0 25/1.0
d 20/0.8 20/0.8 20/0.8 20/0.8
e 11/0.4 11/0.4 11/0.4 11/0.4
f 22/0.9 22/0.9 22/0.9 22/0.9
g 10/0.4 10/0.4 10/0.4 10/0.4
h 51/2.0 51/2.0 51/2.0 51/2.0
i 25/1.0 25/1.0 25/1.0 25/1.0
j 49/1.9 49/1.9 49/1.9 49/1.9
Hole diameter k 11/0.4 11/0.4 11/0.4 11/0.4
Max weight [kg] 104 151 91 138
Contact Danfoss for more detailed information and CAD drawings for your own planning purposes.
Table 5.4 Mechanical Dimensions
