VLT
®
2800 Series
Output frequency has the following format:
0-16384 (4000 Hex)
0-100% (Par. 201
Output frequency low limit - Par. 202 Output
frequency high lim it).
E

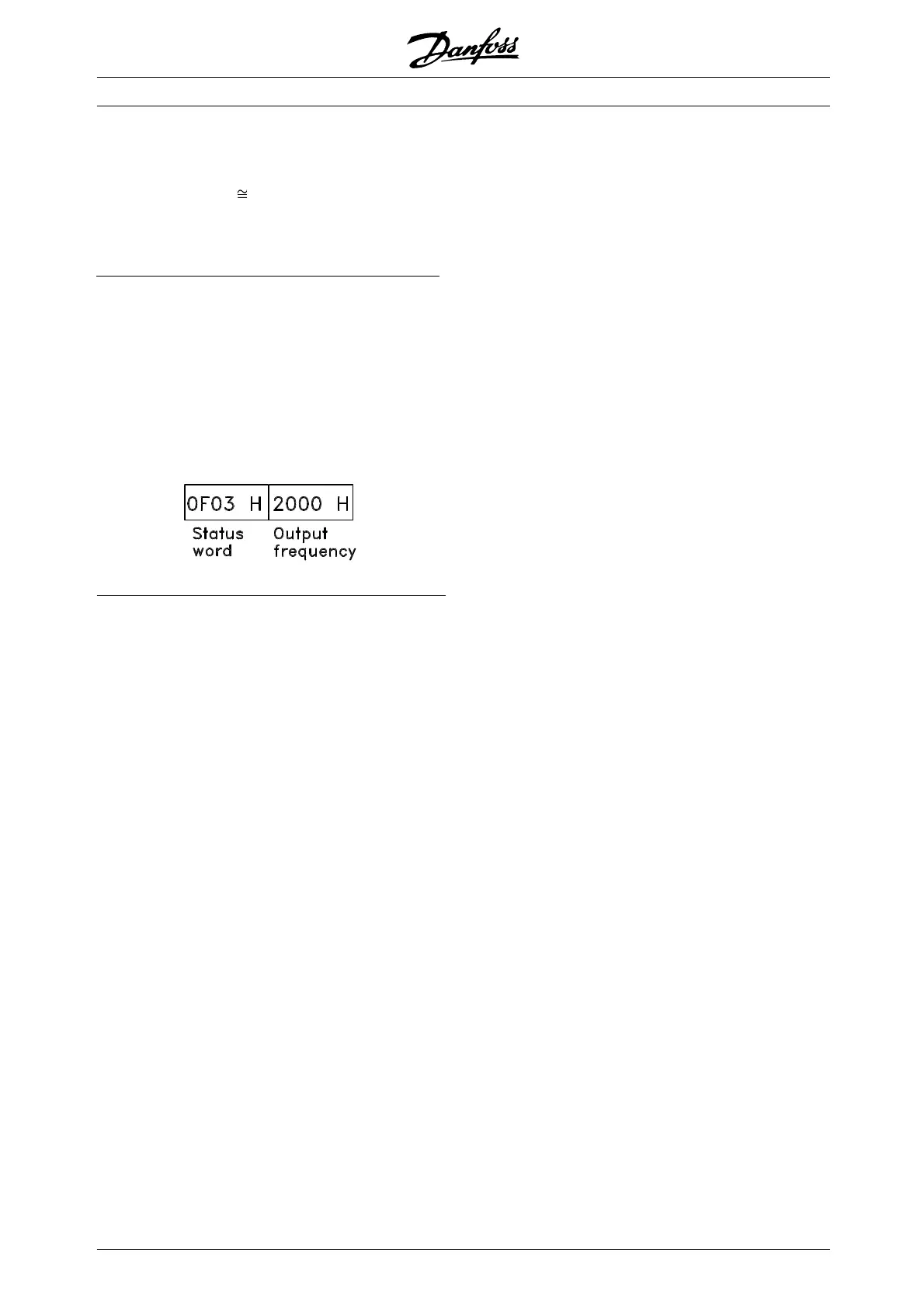

xample - Status word and current output frequency:
The master receives a status message from the
frequency converter that the current output frequency
is 50% of the output frequency range.
Par. 201 Output frequency low limit =0Hz
Par. 202 Output frequency high limit =50Hz
Status word = 0F03 Hex.
Output frequency = 2000 Hex ⇒ 50% of the
freque ncy range, corresponding to 25 Hz.
MG.28.E9.02 - VLT is a registered Danfoss trademark
118
