VLT
®
2800 Series
Programming
LCP 2 control p anel. First all parameter values are
copied to the LCP 2 con trol panel, which can then
be moved to another frequency conve rter. Here all
parameter values can be copied from the LCP 2
control unit to the frequency converter.

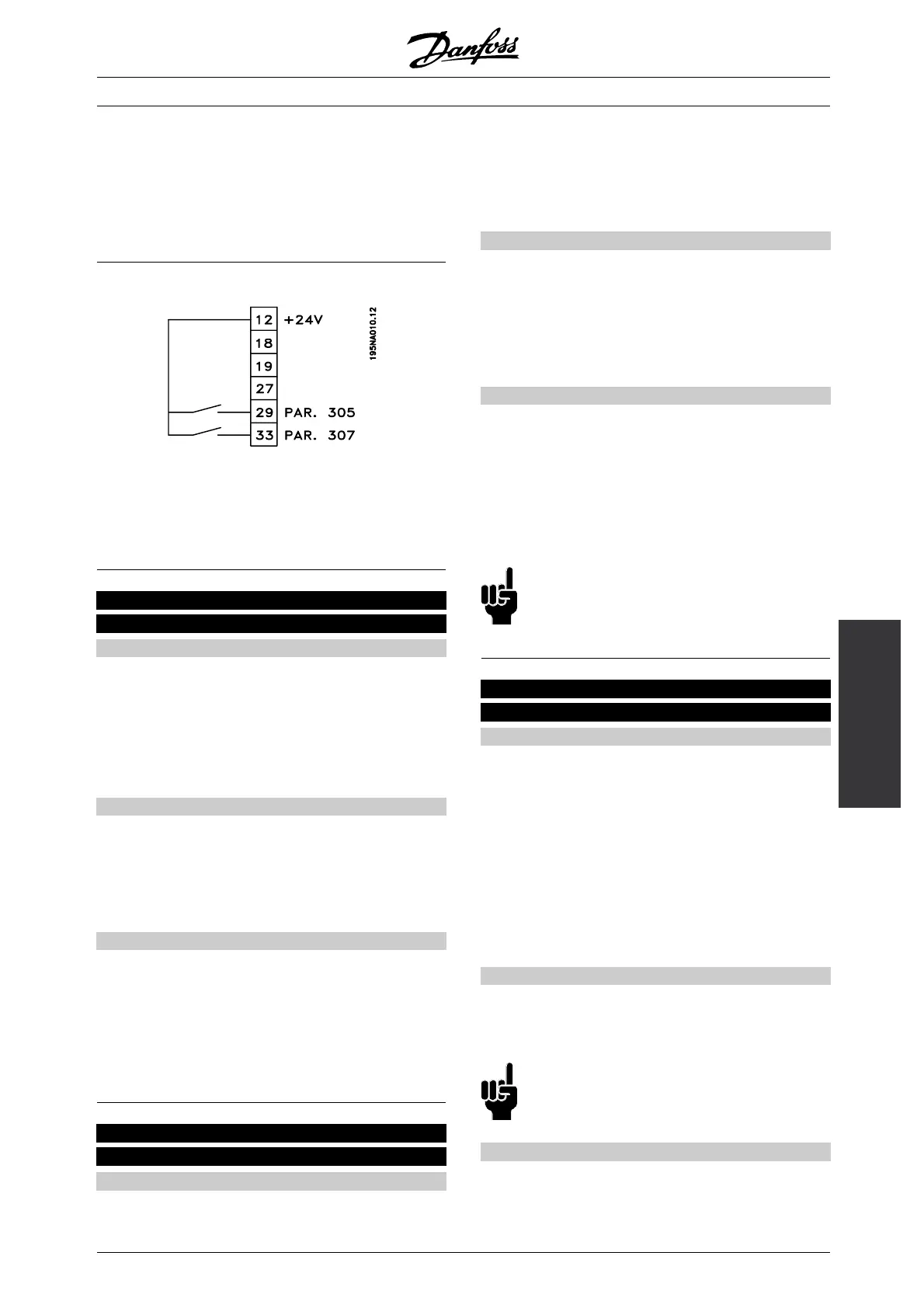

■ Setup shift
- Selection of Setup via terminals 29 and 33.
Par. 305 Digital input = Selec tion of Setup, lsb [31]
Par. 307 Digital input = Selection of Setup, msb [32]
Par. 004 Active setup = Multi Setup [5]
004 Active Setup
(ACTIVE SETUP)
Value:
Factory Setup ( FACTORY SETUP)
[0]
✭Setup 1 (SETUP 1)
[1]
Setup 2 (S ETU P 2)
[2]
Setup 3 (S ETU P 3)
[3]
Setup 4 (S ETU P 4)
[4]
Mult i Setup (MULTI SETUP)
[5]
Function:
The active parameter Setup is selected here. All
parameters can be programmed i n four individual
parameter Setups. Shifts between Setups can
be made in this parameter via a digital input
or via serial communication.
Description of choice:
Factory Setup [0] contains the factory-set parameter
values. Setup 1-4 [1]-[4] are four individual
Setups which can be selected as required. Multi
Setup [5] is used where remote-controlled shifts
between the four Setups via a digital in p u t or via
serial communication is required.
005 Programming Setup
(EDIT SETUP)
Value:
Factory Setup ( FACTORY SETUP)
[0]
Setup 1 (S ETU P 1)
[1]
Setup 2 (S ETUP 2)
[2]
Setup 3 (S ETUP 3)
[3]
Setup 4 (S ETUP 4)
[4]
✭Active Setup (ACTIVE SETUP)
[5]
Function:
You can select which Setup you want to programme
during operat ion (applies both via the control
panel and the serial communication port). It is,
for example, possible to programme Setup 2
[2], while the active Setup is set to Setup 1 [1]
in parameter 004 Active Setup .
Description of choice:
Factory Setup [0] contains the factory-set data
and can be used as a source of data if the
other Setups are to be reset to a known status.
Setup 1-4 [1]-[4] are individual Setups that can
be programmed freely during operation. If Active
Setup [5] is selected, the programming Setup w ill
be e qual to parameter 004 Act ive Setup.
NB!:
If data is modified or copied to the active
Setup, the modifications have an immediate
effect on the unit’soperation.
006 Setup copying
(SETUP COPY)
Value:
✭No copying (NO COPY)
[0]
Copy to Setup 1 from #
(COPY TO SETUP 1)
[1]
Copy to Setup 2 from #
(COPY TO SETUP 2)
[2]
Copy to Setup 3 from #
(COPY TO SETUP 3)
[3]
Copy to Setup 4 from #
(COPY TO SETUP 4)
[4]
Copy to all Setups from # (COPY TO ALL)
[5]
Function:
You can copy from the selected ac t ive Setup in
parameter 005 Programming setup to the selected
Setup or Setups in this parameter.
NB!:
Copying is only possible in Stop (motor stopped
in connection with a stop command).
Description of choice:
Copying begins when the required copying function
has been selected and the [OK]/[CHAN GE DATA]
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.28.E9.02 - VLT is a registered Danfoss trademark
61
