Danfoss VZH088-G single - VZH170-G;H Single Version; VZH170-G;H Manifolded Version

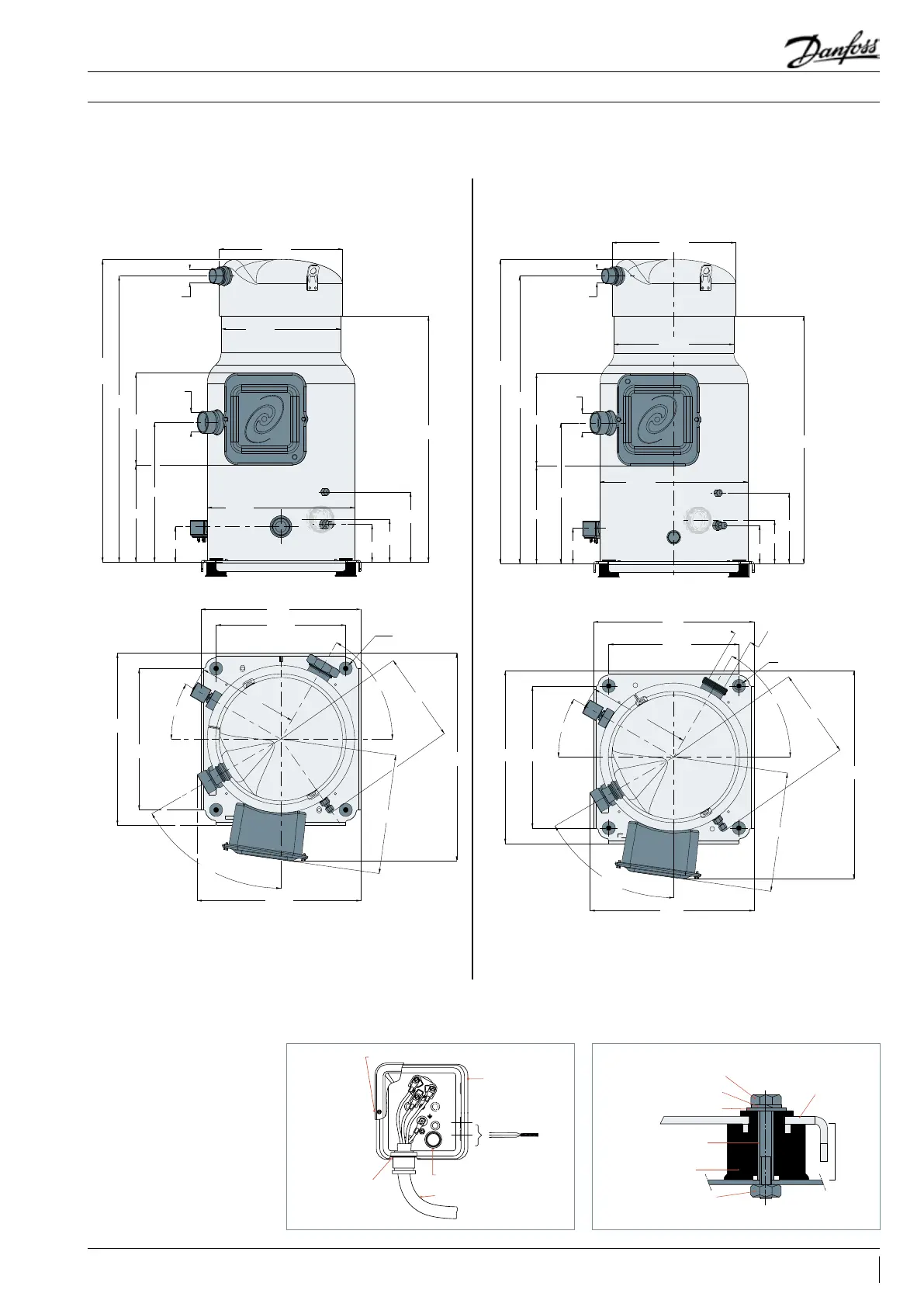

Dimensions
VZH170-G/H single version VZH170-G/H manifolded version
HM 8 bolt
Lock washer
Flat washer
Steel mounting sleeve
Rubber grommet
Nut
28 mm
Compressor
base plate
Grommet
All dimensions in mm
Electrical box
Ø266
Discharge
1"1/8
Ø257
Ø318
4 holes
Ø19
198
617
210
301.5
76.6
81.6
345
219
448
192
257
353
30°
60° 2x
60°
371
304.8
279.4
151.5
531
92.5
659
max.
Suction
1"5/8
Ø266
Ø257
Ø318
Ø38 oil equalisation
2.25" - 12 UN - 2A
4 holes Ø19
198
210
301.5
76.6
531
617
92.5
Discharge
1"1/8
151.5
81.6
345
371
30°
60° 2x
60°
279.4
304.8
192
448
257
353
219
Suction
1"5/8
659
max.
Cover holding screw (x2) - Torque: 2.2 Nm
Faston 1/4" tabs
Terminal box
Power supply
Sump heater
Ø 40.5mm hole
Ø 50.5mm knockout
