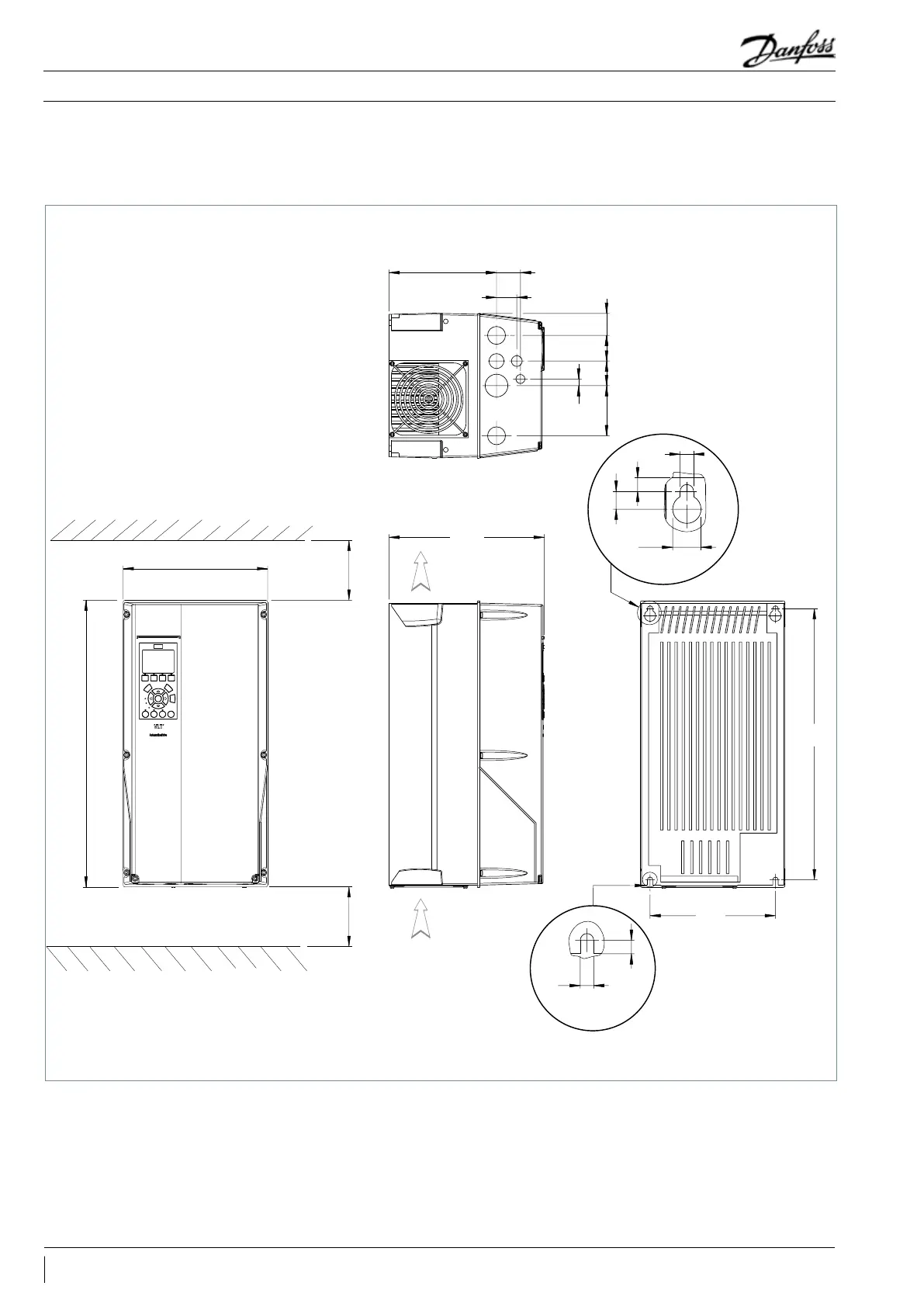

Dimensions
CDS303 frequency converter - enclosure B1
380-480 Volts - 15 kW - IP55 housing
scale 1:2
9
9
242
480
Min 100
Air space inlet
Min 100
Air space outlet
9
19
9
12
scale 1:2
Mounting base
454
210
260
Air outlet
Air inlet
180
40
37
43
41
84
11
34
28 FRCC.PC.023.A8.02
