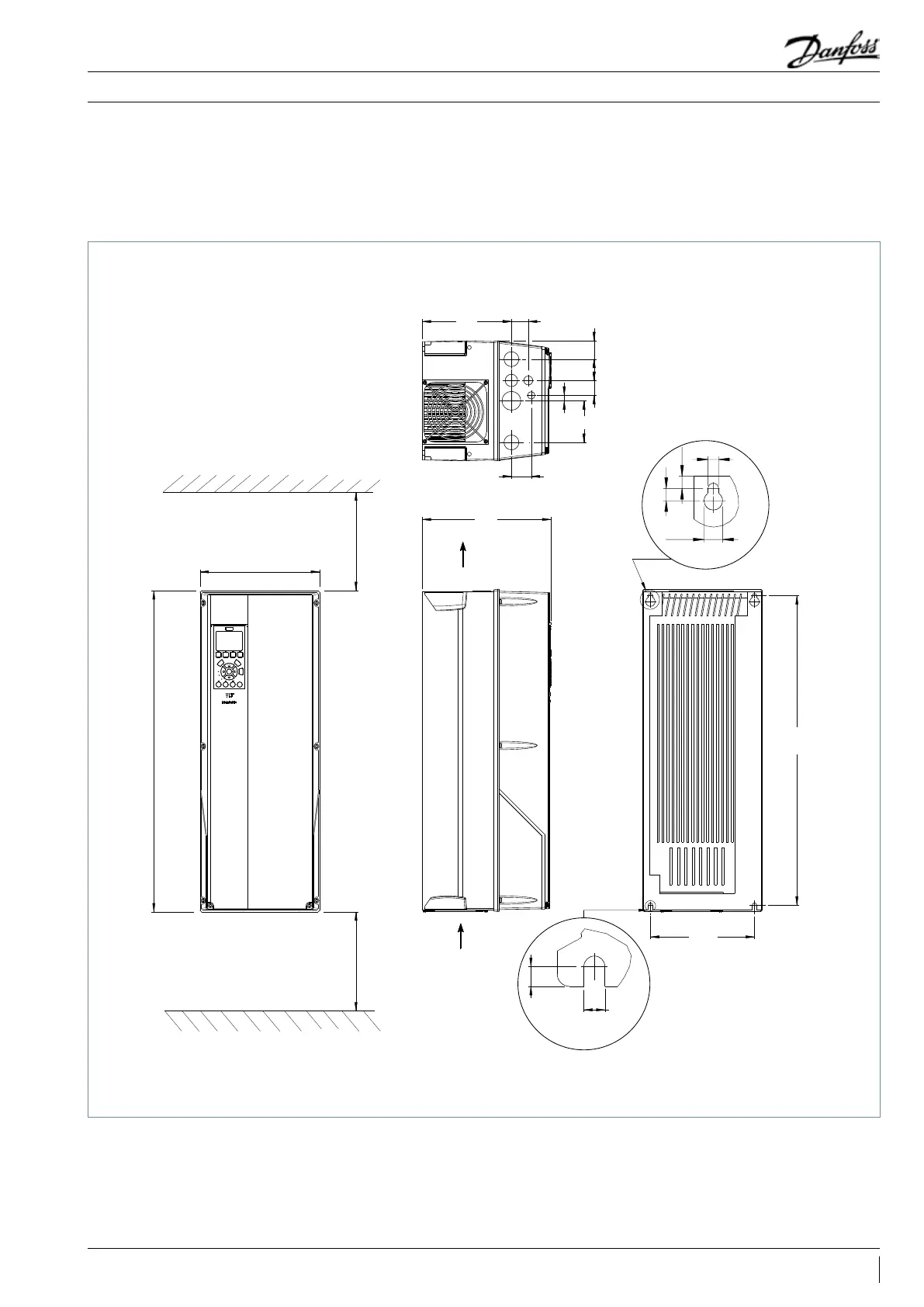

Dimensions
CDS303 frequency converter - enclosure B2
380-480 volts – 18-22 kW - IP55 housing
Scale 1:2
9
9
9
9
12
Ø19
Scale 1:2
624
210
Mounting base
260
Air
outlet
Air
inlet
180
34
37
43
30
84
11
40
242
650
Min 200
Air space inlet
Min 200
Air space outlet
29FRCC.PC.023.A8.02
