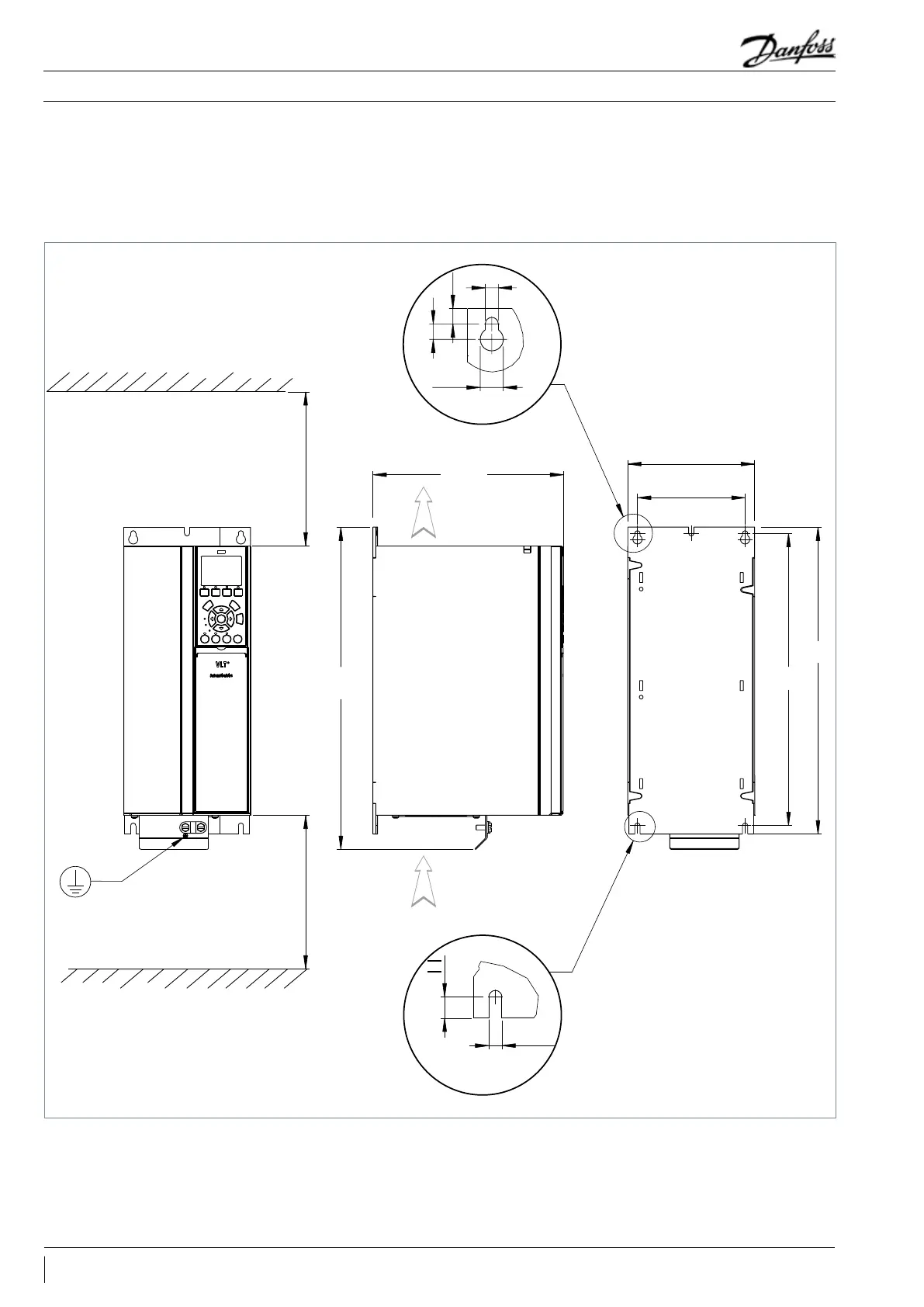

Dimensions
CDS303 frequency converter - enclosure B3
380-480 volts - 15 kW - IP20 housing
Scale 1:2
6.8
6.8
8
8
Ø12
Scale 1:2
165
140
399
380
Mounting base
248
419
Air outlet
Air inlet
Min 200
Air inlet
Min 200
Air space outlet
