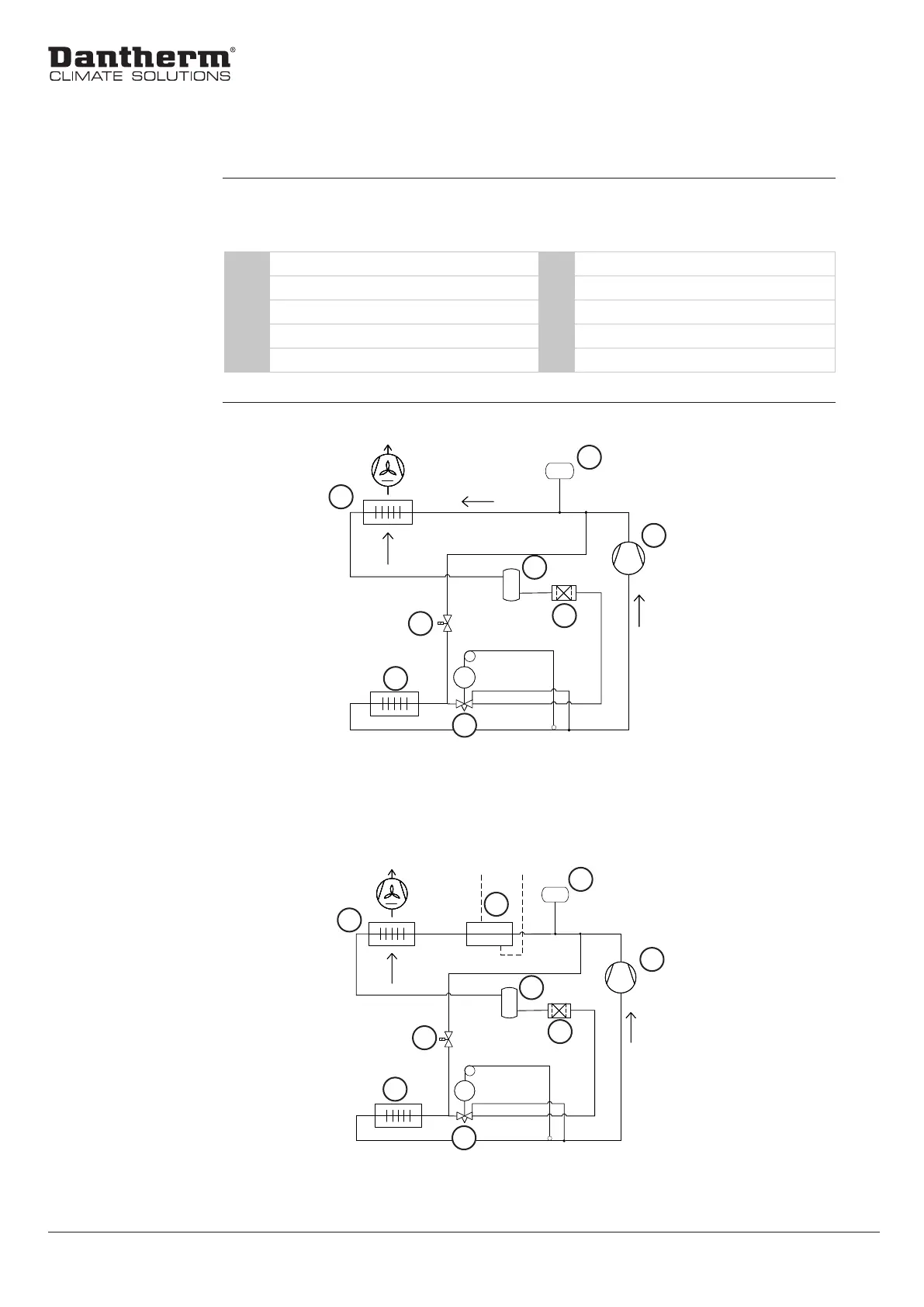

Cooling diagram: Schematics of cooling diagram
Cooling diagram
CDP-Large MKIII 351590, 3312379 (Condensation Dehumidifier PSD)
CDP 85 230V
Luftkølet kondensator
HP
TCTC
Condensation dehumider principle diagram.
CDP-Large MKIII 351590, 3312379 (Condensation Dehumidifier PSD)
CDP 85 230V
Vandkølet og luftkølet kondensator
HP
TCTC
Condensation dehumidier principle diagram with integrated wa-
ter-cooled condenser.
1
2
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1 Compressor 6 Filter drier
2 HP pressostat 7 Thermostatic expansion valve
3 Water-cooled condenser 8 Evaporator
4 Air-cooled condenser 9 Solenoid valve
5 Receiver
Schematics
of cooling
diagram
Fig. 7: Cooling diagram
26
