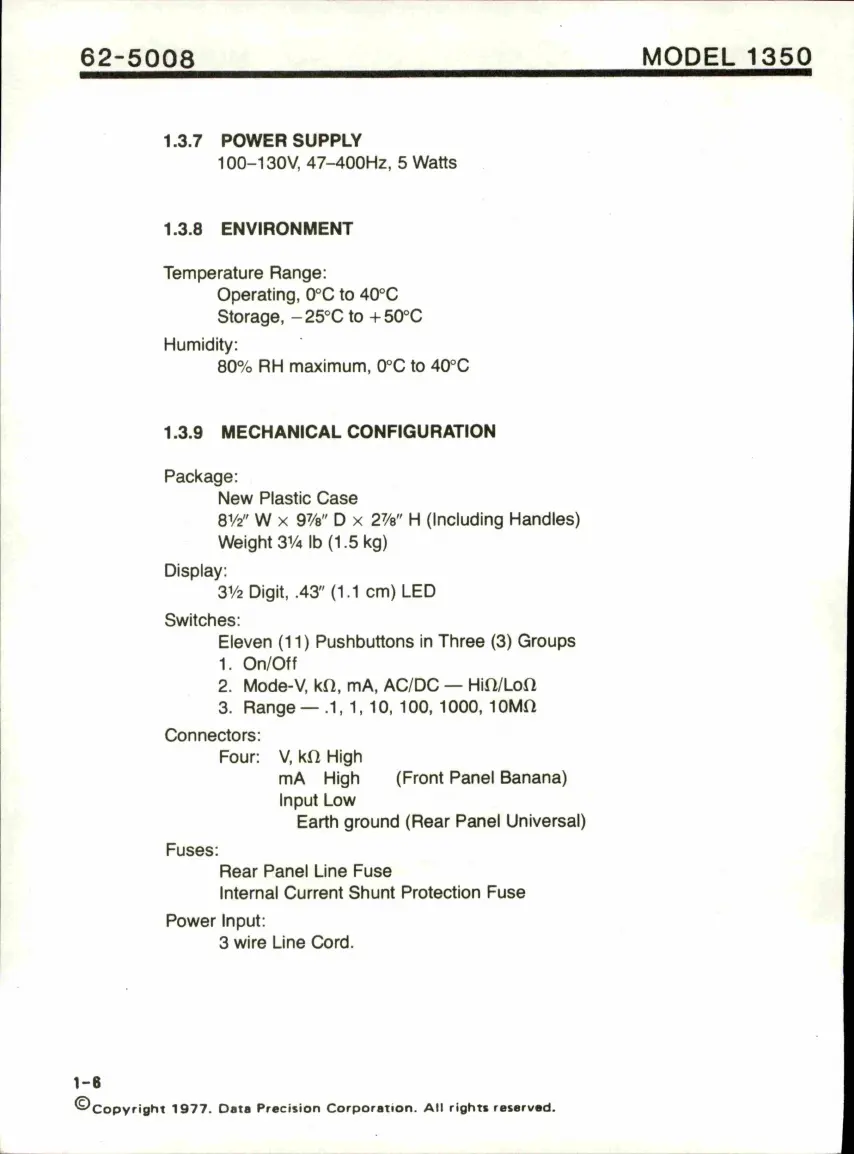

62-5008 MODEL 1350
1.3.7 POWER SUPPLY
100-130V, 47-400HZ, 5 Watts
1.3.8 ENVIRONMENT
Temperature Range:
Operating, 0°C to 40°C
Storage, -25°G to +50°C
Humidity:
80% RH maximum, 0°C to 40°C
1.3.9 MECHANICAL CONFIGURATION
Package:
New Plastic Case
8V2" W X 9%" D X 2W H (Including Handles)
Weight 3V4lb(1.5kg)
Display:
3V2 Digit, .43" (1.1 cm) LED
Switches:
Eleven (11) Pushbuttons in Three (3) Groups
1. On/Off
2. Mode-V, kn, mA, AC/DC — Hin/LoD
3. Range —.1,1, 10, 100, 1000, lOMft
Connectors:
Four: V, kft High
mA High (Front Panel Banana)
Input Low
Earth ground (Rear Panel Universal)
Fuses:
Rear Panel Line Fuse
Internal Current Shunt Protection Fuse
Power Input:
3 wire Line Cord.
