DATA PRECISION 1350 User Manual

62-5008
MODEL 1350
INPUT = -IVDC
RANGE = 1
MODE = V, DC
>
Z2 27
WAVEFORM
OK?
R/R Z2,S3.S5,
R11. R12. 05. 06
R/R S3, S5
REF LEVEL
WAVEFORM
OK?
R/R RT1
RV 1-5. Z2
TO DISPLAY TROUBLE-SHOOTING (TEXT)

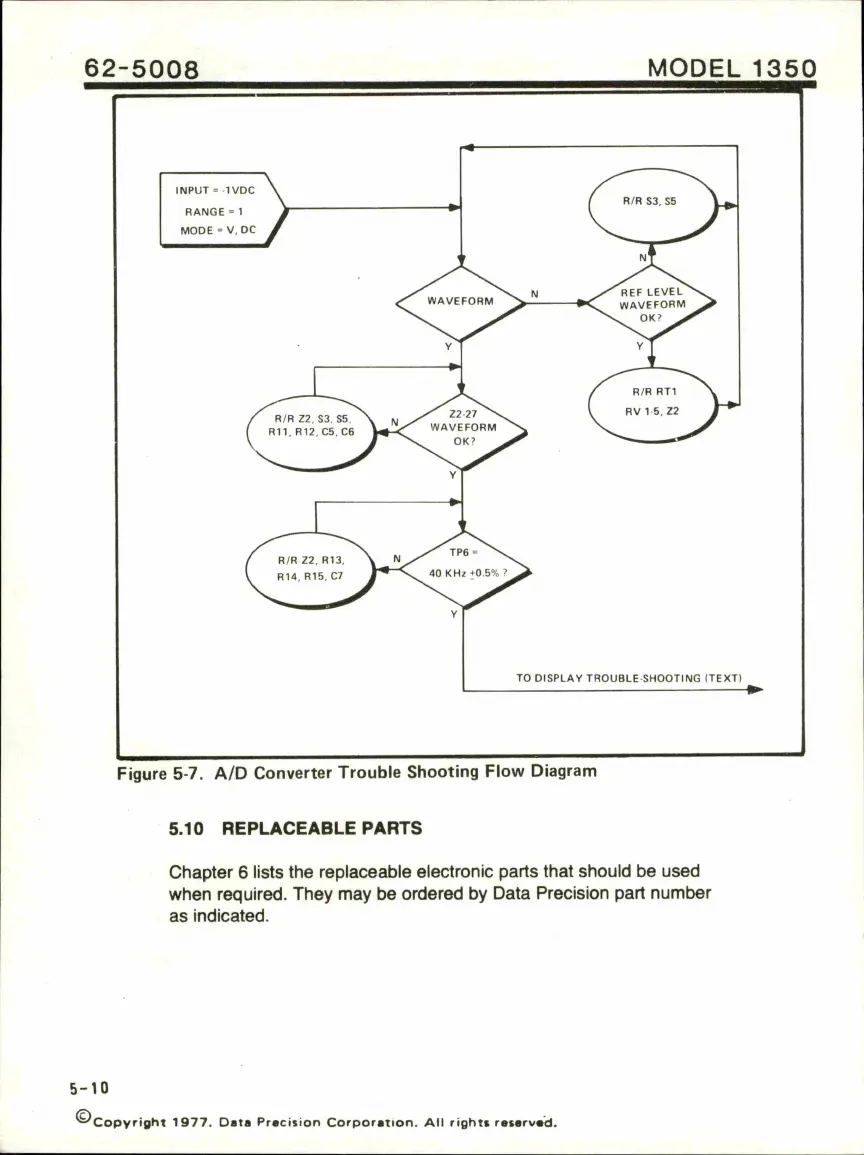

Figure 5-7. A/D Converter Trouble Shooting Flow Diagram
5.10 REPLACEABLE PARTS
Chapter 6 lists the replaceable electronic parts that should be used
when required. They may be ordered by Data Precision part number
as indicated.
5-10
©
Copyright 1977. Data Praciston CorporaTion. AH righ
ad.
